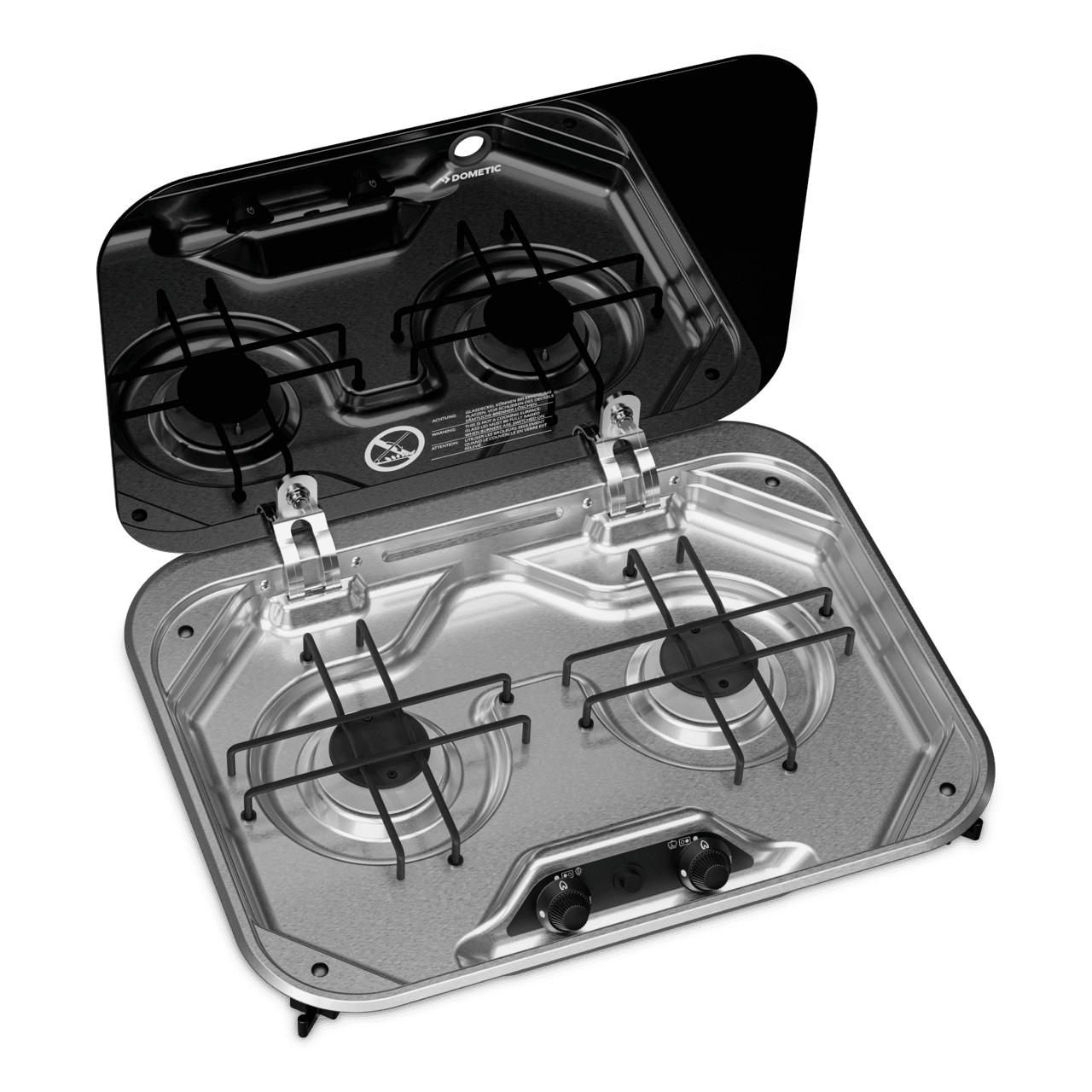

The compact Dometic PI8022 two-burner gas hob is ideal where space is at a premium. This small hob has 12 V ignition and a heat-resistant safety glass lid, which not only protects the hob when not in use, but also provides more workspace when closed. It boasts easy-to-clean enameled pan supports and a safety flame-failure device system.
[]
Clean and easy
[]
Heat perfection
[]
Dual purpose lid
Technical Information
Specifications
General
Scope of delivery
EU version, 12V ignition, EN30-1-1 compliant (gas shut-off + soft close hinges)
SKUCertificates
CE
Product Description
Two-burner gas hob with glass lid, 480 x 370 mm
Dimensions
Dimensions product depth, [mm]
370
Dimensions product height, [mm]
83
Dimensions product width, [mm]
480
Dimensions product width, ["] - Display
18.90
Net weight, [kg]
3.60
Net weight, [lbs]
7.94
Cut out depth, [mm]
358.000000
Cut out height, [mm]
85.000000
Cut out width, [mm]
466.000000
Electrical
Input voltage (DC), [V]
12
Performance
Fuel type
Liquid gas LPG
Gas consumption [g/24h]
4992.000000
Output cooker plate 1, [kW]
1.100000
Output cooker plate 2, [kW]
1.800000
Gas consumption cooktop, [g/h]
208.000000
Number of burners
2
Operating pressure, [mbar]
30.000000
Properties
Gas pressure (DIN732), [mbar]
30
Gas category
Butane (G30, EU), Propane (G31, EU)
Logistics
Dimensions parcel depth, [mm]
455
Dimensions parcel height, [mm]
190
Dimensions parcel width, [mm]
570
Parcel weight, [kg]
4.80
Parcel weight, [lbs]
10.58
Get the Highlights
Clean and easy
Easy-to-clean detachable pan grids
Heat perfection
Easy temperature control
Dual purpose lid
Handy safety glass lid that doubles as extra work space when closed
