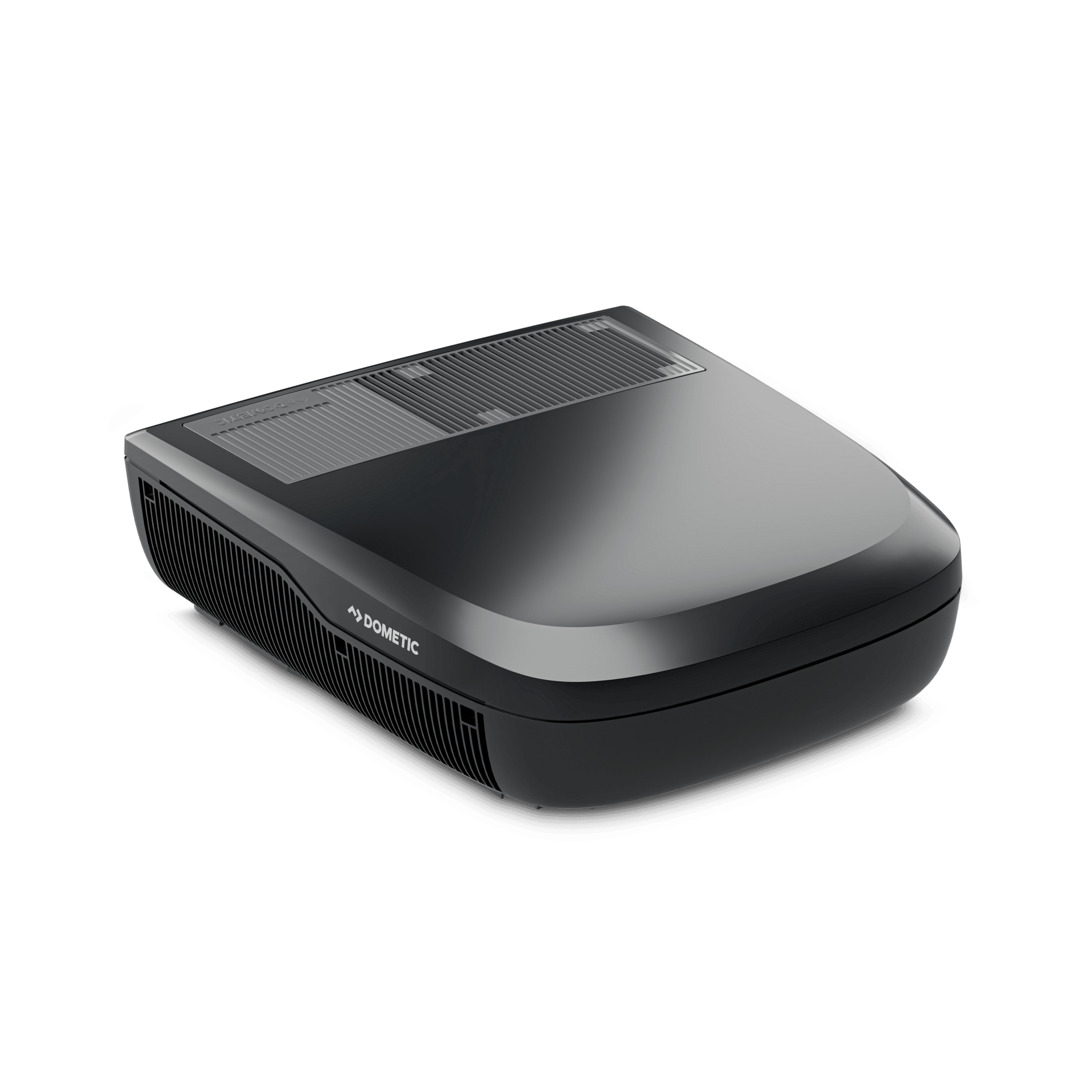

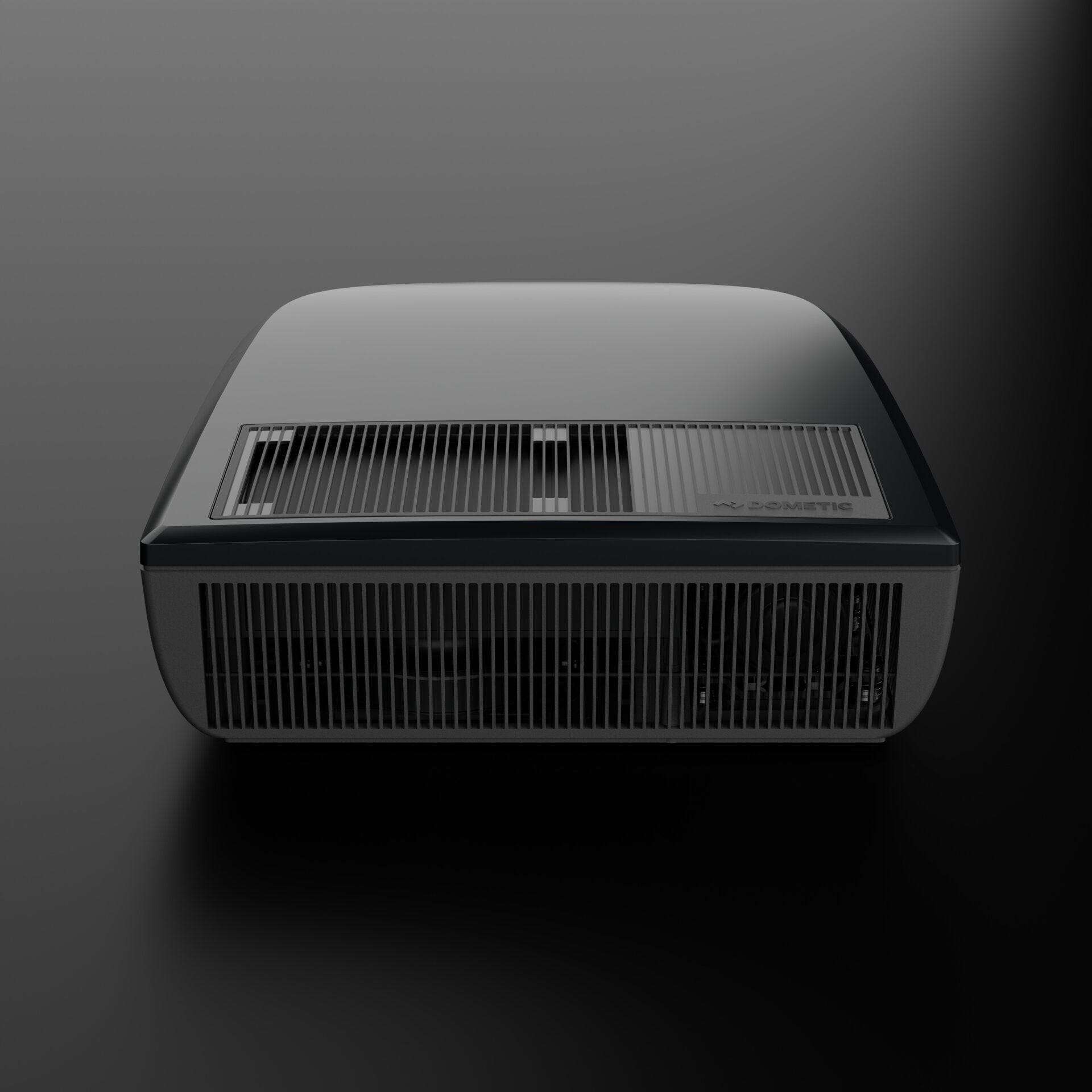

Dometic FreshJet FJZ4 2200

Specifications

General

Scope of delivery

Roof top unit

SKUCertificates

CE;UKCA;ECER10;EMC;CB

Product Description

Roof air conditioner, 2200 W, electronic controls

Dimensions

Dimensions product depth, [mm]

752

Dimensions product height, [mm]

225

Dimensions product width, [mm]

702

Dimensions product width, ["] - Display

27.64

Net weight, [kg]

30.90

Net weight, [lbs]

68.13

Standard mount. material thickness 1 min, [mm]

25

Standard mount. material thickness 1 max, [mm]

60

Cut out depth, [mm]

400.000000

Cut out width, [mm]

400.000000

Electrical

Input voltage (AC), [V]

220-240

Input frequency, [Hz]

50

Performance

Hermetically Sealed

Yes

Refrigerant, type

R32

GWP

675

CO2 equivalent, [t]

0.243

AirFlow, [m³h]

415.000000

Operating temperature min, [°C]

-2.000000

Operating temperature max, [°C]

52.000000

Properties

Connectivity Type

RS485

Logistics

Dimensions parcel depth, [mm]

826

Dimensions parcel height, [mm]

280

Dimensions parcel width, [mm]

751

Parcel weight, [kg]

34.50

Parcel weight, [lbs]

76.07
