Description
- Serves as a second camera on the rear, on the side or inside a vehicle or trailer
- Simply connects to the prepared harness of the CAM 440 basic set
- Close view and far view integrated in a single camera lens
- Observe hidden areas, e.g. around bike racks and tail lifts, or inside the vehicle

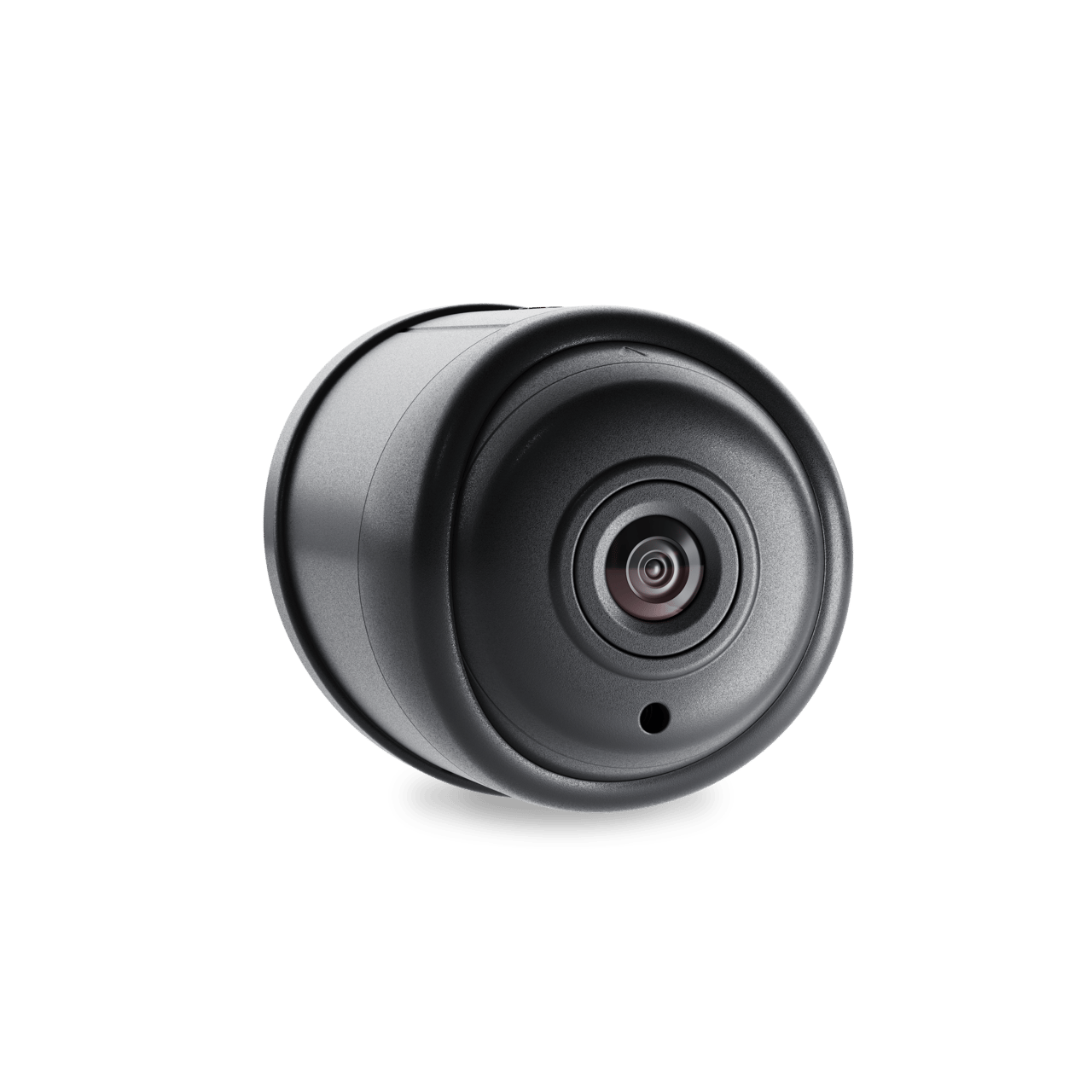

- Small ball camera, just 36 mm in diameter, with concealed cables and mounts
- Video format selection enables high-resolution images on AHD and CVBS monitors
- Latest generation sensor technology allows excellent visibility in the dark
- Well-protected in dusty environments – no mechanical lens cover required
- Compatible with all commonly used monitors – Dometic as well as other brands
This compact ball camera serves as an add-on module for the CAM 440 basic set. It simply connects to the prepared harness of the CAM 440 and offers the same functionality: rear view of the area close to the vehicle, or zoomed far view. You can install it on the lower rear to observe critical areas hidden under a bike rack or tail lift, or on the side for safer driving on narrow roads or gateways.
Specifications
SKU: 9620006605
| Model | CAM440 |
|---|---|
| Scope of delivery | Camera, installation material, manual |
| SKUCertificates | ECE R10 |
| Product Description | Dual-vision camera for system upgrading |
| Dimensions product depth, [mm] | 53 |
|---|---|
| Dimensions product height, [mm] | 36 |
| Dimensions product width, [mm] | 36 |
| Net weight, [kg] | 0.07 |
| Input voltage (DC), [V] | 12/24 |
|---|---|
| IP class | IP69K |
| Operating temperature min, [°C] | -30 |
|---|---|
| Operating temperature max, [°C] | 70 |
Loading products…
See what matters
Close-range view while reversing, far-range view while driving – the dual-function lens of the CAM 440 (CAM 440E) supports both. You can even switch between the two viewing modes without shifting gears, so you can always see what matters in the situation. To benefit from this extended functionality, you require the CAM 440CS control switch (to be ordered separately).
