Description
- 80 A charging current
- Three battery outputs for charging up to three batteries simultaneously
- N-BUS and CI-BUS connectivity allow convenient control via wall display or app
- Suitable for LiFePO4 and lead-acid batteries thanks to selectable charging curves
- OPTICHARGE algorithm for flexible configuration and battery-specific charging
- Optimized 6-step charging curve
- Compact, lightweight design with practical screw connections
The latest charging technology, ultra-compact design, N-BUS compatible and lightweight: this 80 A automatic battery charger is the perfect choice for frequent travellers and globetrotters. It can charge three batteries simultaneously and be used all over the world with its input voltage range of 110–230 V. Ideal for LiFePO4 consumer batteries as well as for lead-acid batteries (AGM, gel, wet).
Specifications
SKU: 9620017572
| Model | MCAPLUS1280 |
|---|---|
| Scope of delivery | Battery charger, 230V connection cable |
| Product Description | IU0U battery charger, 80 A, 12 V |
| Dimensions product depth, [mm] | 303 |
|---|---|
| Dimensions product height, [mm] | 75 |
| Dimensions product width, [mm] | 208.50 |
| Net weight, [kg] | 3.90 |
| Input voltage (AC), [V] | 110/230 |
|---|---|
| Rated input power (AC), [W] | 410 |
| Input frequency, [Hz] | 50/60 |
| Battery type | AGM |
| IP class | IP20 |
| Energy efficiency, [%] | ≤87 |
|---|---|
| Continuous power 25°C, [W] | 370 |
| Operating temperature min, [°C] | -20 |
| Operating temperature max, [°C] | 50 |
| Connectivity Type | CIBUS |
|---|
| Dimensions parcel depth, [mm] | 371 |
|---|---|
| Dimensions parcel height, [mm] | 147 |
| Dimensions parcel width, [mm] | 263 |
| Parcel weight, [kg] | 2 |

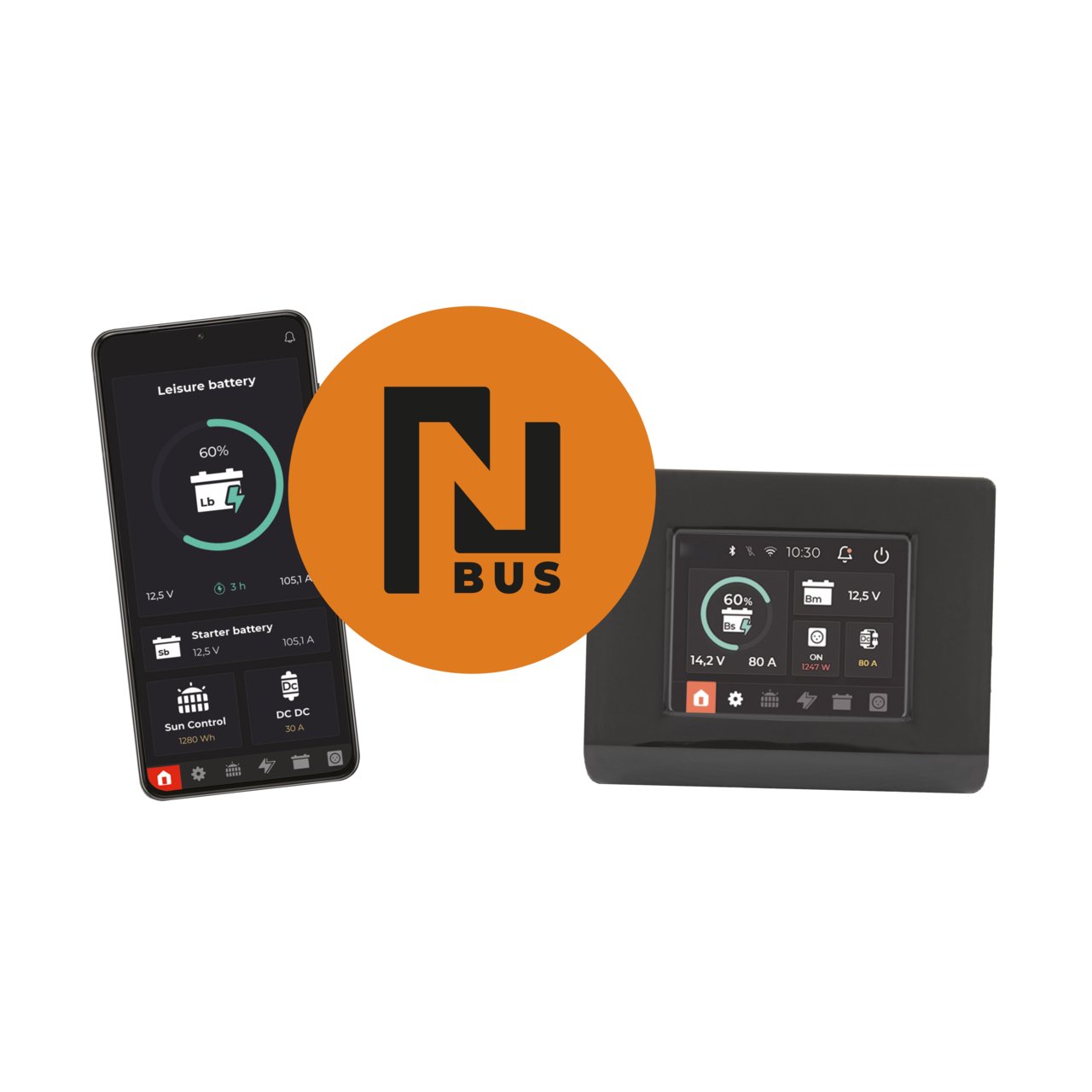

N-BUS and CI-BUS-ready
All new generation mobile power supply products from Dometic are compatible with our proprietary N-BUS system as well as the CI-BUS system of the caravan industry. The universal connectivity facilitates installation and allows efficient “team work” of all components in your onboard energy system. It also enables convenient control via app or from a central wall display (Dometic TD 283).
890,00 €
