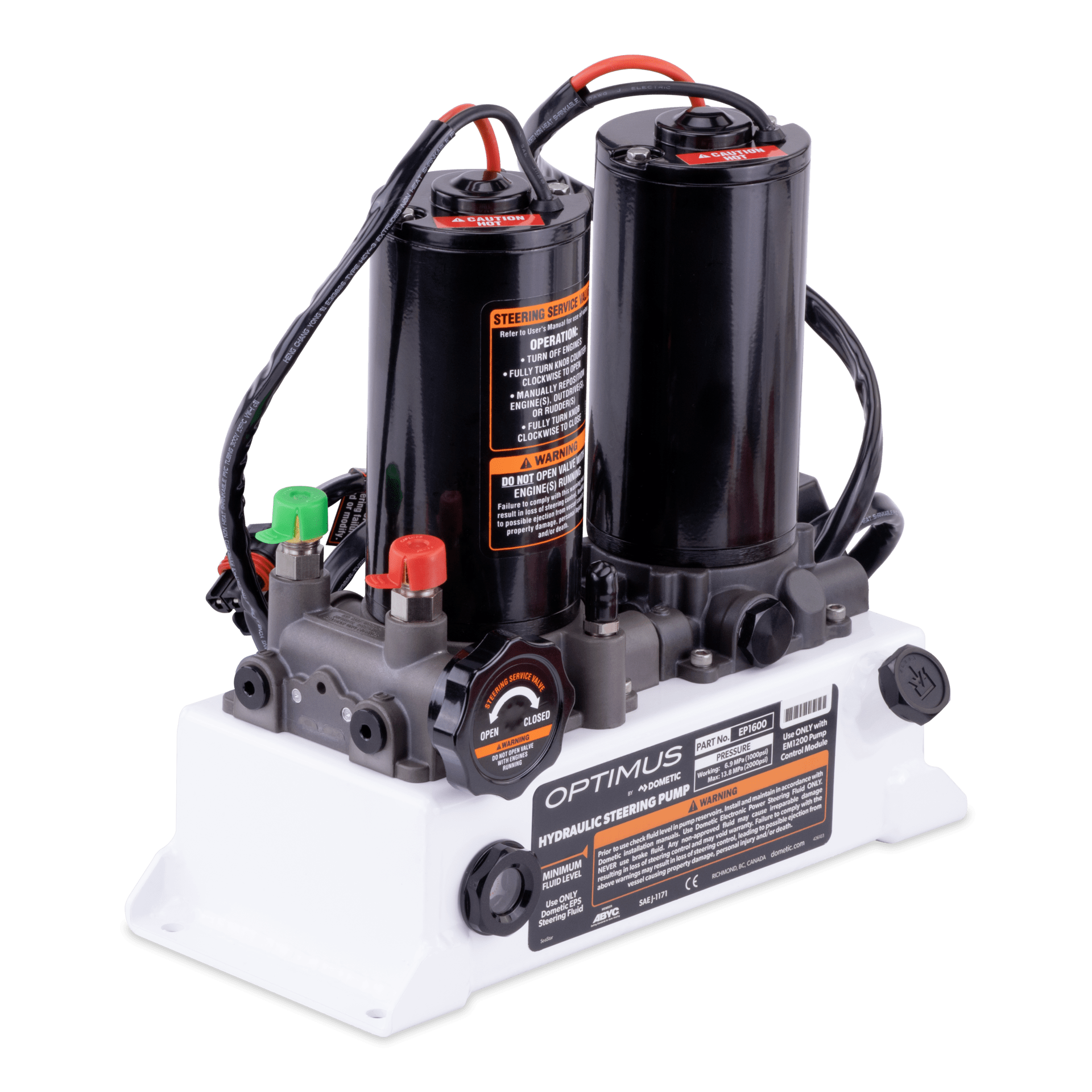

Dometic Optimus EPS Pump

Pump, large inboards, EP1600

The Dometic Optimus EPS Pump ensures the smooth and reliable operation of the Optimus system, while at the same time reducing overall power consumption. With sealed locking connections, there is always a reliable cable connection, protected from vibrations.

Beschreibung

  1. On demand hydraulic steering pump
  2. Simplified auto-purge mode
  3. Designed using SAE J-1171 rated motor
  4. Compatible with third party autopilot systems
  5. Integrated service/bypass valve
  6. Significantly reduces overall power consumption
  7. No oil cooler required for hydraulic fluid

Spezifikationen

SKU: 9130000316

Dometic Optimus EPS Pump — Allgemein, Spezifikationen
ModelInboard
Product DescriptionPump, large inboards, EP1600

Dometic Optimus EPS Pump — Abmessungen, Spezifikationen
Dimensions product depth, [mm]165.10
Dimensions product height, [mm]276.86
Dimensions product width, [mm]299.72
Net weight, [kg]9.22

Dometic Optimus EPS Pump — Elektrisch, Spezifikationen
Input voltage (DC), [V]12

Dometic Optimus EPS Pump — Logistik, Spezifikationen
Parcel weight, [kg]10.43

Dometic Marine Steering Selection Guide (en)Englisch (Vereinigte Staaten)
Application Guide
Dometic Marine Ride & Handling 2022 - Catalog - "Application Guide" lowres (en)Englisch (Vereinigte Staaten)
Application Guide
Dometic Optimus EPS - Installation Manual Amer(EN)Englisch (Vereinigte Staaten)
Installation Manual

Produktgröße & Gewicht

B 299.72 x H 276.86 x T 165.10 mm

Gewicht: 9.22 kg

On-demand

On-demand

The Dometic Optimus EPS Pump offers simplicity within the Optimus system. With a simplified auto-purge mode and integrated service/bypass valve, maintenance of your system has never been easier. The on-demand nature of the pump significantly reduces overall power consumption and is designed using a SAE J-1171 rated motor.
