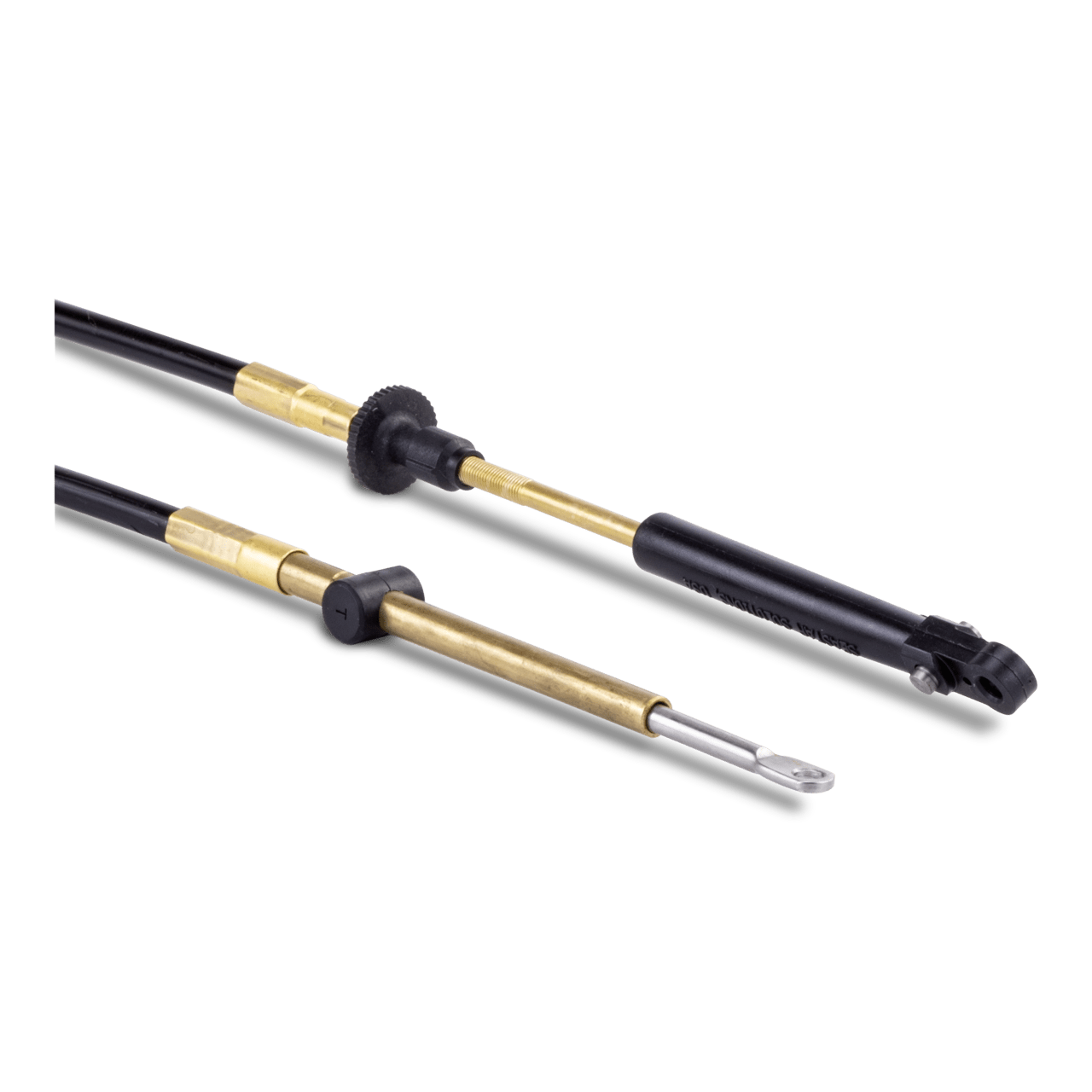

Dometic SeaStar SSC130

Cable Replace Command 200, 6', SSC13006

Dimensions Product Length Imperial: 6

The Dometic SeaStar Rack SSC130 type cable is a replacement cable for Morse 300619 cable. This cable can be used on the Command 200 rack steering helm.

Beschreibung

  1. Rack replacement cable for Morse 300619 only
  2. Trapped nut engine connection stays in place during cable routing
  3. Tightly controlled core to conduit fit to offer precise steering
  4. Outer jacket is constructed with HDPE, a high density polyethylene material that is abrasion resistant and provides a high resistance to water penetration
  5. Output ends are constructed of stainless steel material for corrosion resistance.
  6. Exceeds ABYC safety standards and ISO/IMCI/NMMA certification requirements
  7. Use on Command 200 rack steering system helms; 300252, 300853, 310992, 310993, 910994, 310995. All of these helms are obsolete and no longer available.

Spezifikationen

SKU: 9130004775

Dometic SeaStar Steering Cable — Allgemein, Spezifikationen
ModelSSC130
Product DescriptionCable Replace Command 200, 6', SSC13006

Dometic SeaStar Steering Cable — Abmessungen, Spezifikationen
Dimensions product depth, [mm]685.80
Dimensions product height, [mm]508
Dimensions product width, [mm]82.55
Dimensions product length, [ft]6

Dometic SeaStar Steering Cable — Eigenschaften, Spezifikationen
Wire Length, [ft]27

Dometic SeaStar Steering Cable — Logistik, Spezifikationen
Parcel weight, [kg]3.07

Produktgröße & Gewicht

B 82.55 x H 508 x T 685.80 mm

How to measure steering cables

How to measure steering cables

When replacing a cable, measure twice and order once. If possible, find the part number stamped on the plastic jacket of the old cable. For rack cables, if you removed the old cable, measure plastic cable jacket in inches, add 30 inches and if it does not end on a foot, then round up to the next foot. Order that length cable.
