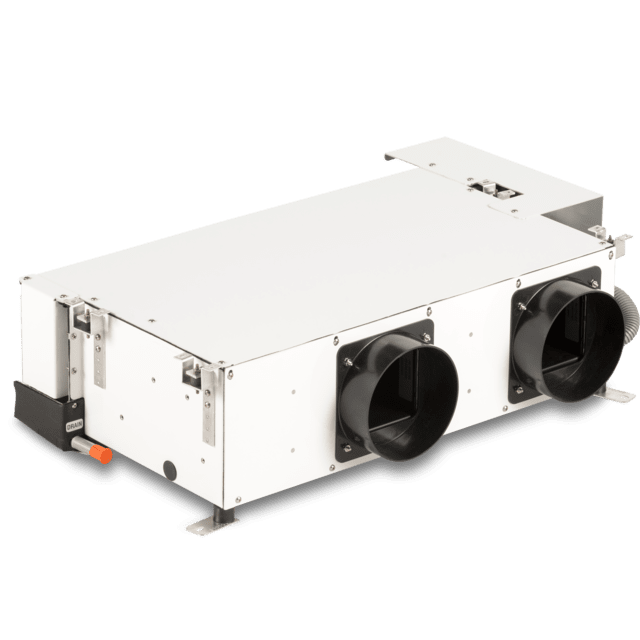

Dometic ATL
Ceiling Mountable Air Handler Series
Sold in our dealer networkArt nr: 9108782877
Your Configurations
Cooling Capacity, [Btu/h]
6000
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Item Description
ATL6HVZ-FC 5"MR 230V
Suspend from above or support from beneath (hardware included)
Optional DC "Whispercool" blowers are extremely quiet yet powerful
Bypass valve has removable power head for simple servicing
Electrical box can be remotely mounted up to 6' away (1.8 m)
Remote air bleeder on 6' (1.8 m) of flexible tubing with ball valve
Valve body is soldered to prevent leaks
SKU number
9108782877
Model
Chillers Air Handlers ATL
Model on label
ATL6HVZ-FC 5"MR
Product Description
Chilled water air handler, 6,000 BTU/h, 230 V
Dimensions product depth, ["]
18
Dimensions product height, ["]
8.1
Dimensions product width, ["]
19.6
Net weight, [lbs]
26.75
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Required AC circuit protection min, [A]
2
Required AC circuit protection max, [A]
5
Cooling capacity (ISO 5151), [W]
1758.43
Current consumption min cooling, [A]
0.9
Current consumption max cooling, [A]
0.9
EAN-13
7315091244497
Dimensions parcel depth, ["]
35.5
Dimensions parcel height, ["]
12.5
Dimensions parcel width, ["]
22.5
Parcel weight, [lbs]
39.38
