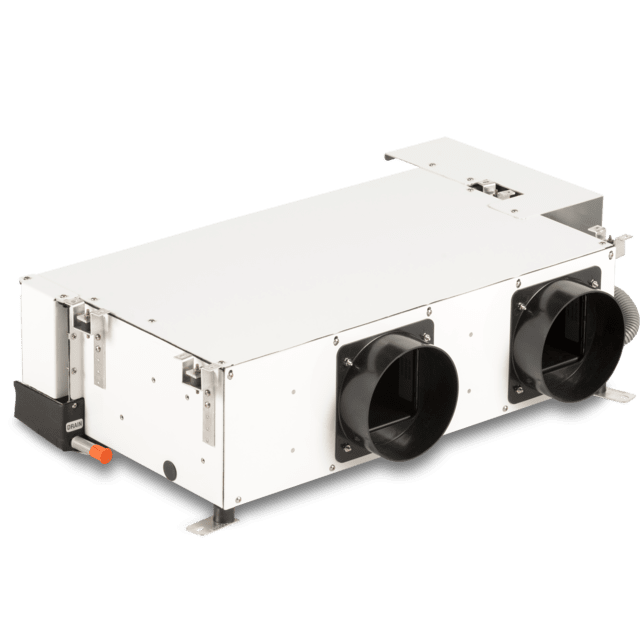

Dometic ATL
Ceiling Mountable Air Handler Series
Sold in our dealer networkArt nr: 9108782881
Your Configurations
Cooling Capacity, [BTU]
36000
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Item Description
ATL36HVZ-FC 8"MR 230V
Suspend from above or support from beneath (hardware included)
Optional DC "Whispercool" blowers are extremely quiet yet powerful
Bypass valve has removable power head for simple servicing
Electrical box can be remotely mounted up to 6' away (1.8 m)
Remote air bleeder on 6' (1.8 m) of flexible tubing with ball valve
Valve body is soldered to prevent leaks
SKU number
9108782881
Model
Chillers Air Handlers ATL
Model on label
ATL36HVZ-FC 8"M
Product Description
Chilled water air handler, 36,000 BTU/h, 230 V
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Required AC circuit protection min, [A]
3
Required AC circuit protection max, [A]
5
Cooling capacity (ISO 5151), [W]
10550.56
Current consumption min cooling, [A]
2.4
Current consumption max cooling, [A]
2.4
EAN-13
7315091244541
Dimensions parcel depth, ["]
67
Dimensions parcel height, ["]
19
Dimensions parcel width, ["]
27
Parcel weight, [lbs]
196.28
