Dometic PerfectView RVS 545
Dometic PerfectView RVS 545
Dometic PerfectView RVS 545
Dometic PerfectView RVS 545

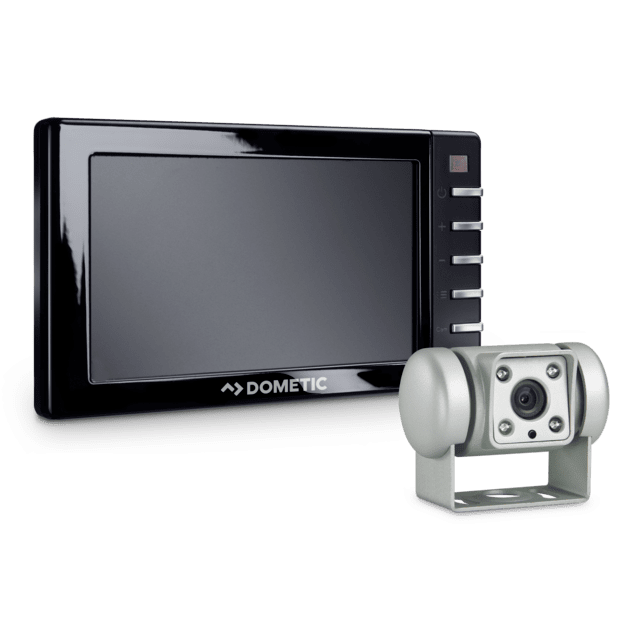

This high-end rear view system comes with a flat 5" LCD monitor featuring super-bright, energy-saving LED backlighting and Analog High Definition (AHD) technology for excellent image quality. The set includes a small color camera with closed housing for nearly invisible guidance of cables. Up to three cameras can be connected.

Flat, elegant 5" LCD monitor with AHD technology

Great image quality in all light conditions

Small color camera with closed housing for nearly invisible guidance of cable

Temperature-controlled heater enables use in cold temperatures

Up to three cameras can be connected

Normal or mirrored picture function

Automatic recognition of a trailer camera

SKU number

9600014230

Model

RVS545

Model on label

RVS545

Scope of delivery

monitor, camera, set of wires, installation material, manual

Product Description

Reversing video system with silver color camera and 5" monitor

Input voltage (DC), [V]

12/24

IP class

IP40/IP69k

Camera inputs

3

Brightness adjustment

Automatic via LDR

Picture brightness, [cd/m²]

350

Video standard

PAL

Vibration resistance, [g]

6

Operating temperature min, [°C]

-20

Operating temperature max, [°C]

70

Mirrored Picture Function

Can be set

Certificates

ECE R10

EAN-13

4015704272703

Dimensions parcel depth, [mm]

280

Dimensions parcel height, [mm]

220

Dimensions parcel width, [mm]

205

Parcel weight, [kg]

2.4

DoC Systems 20190430

Declarations of Conformity

Download
