The Dometic RX Condenser can be installed with up to two Dometic cooling units, where the total capacity is equal to the condensing unit capacity. In the cooling mode, full performance is available in seawater up to 90 °F/32 °C. In reverse-cycle heating, the unit will provide heat in seawater as low as 40 °F/4.4 °C.
Discontinued

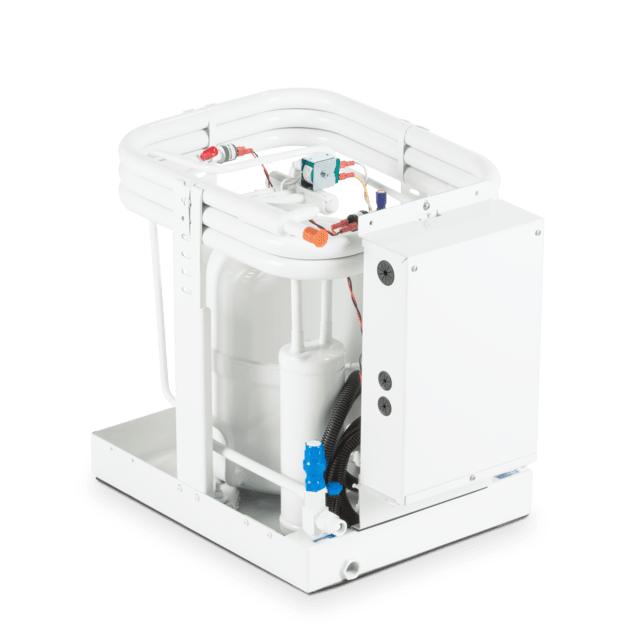

Dometic Remote R Condenser
Condensing unit
Sold in our dealer networkArt nr: 9108561190
Your Configurations
Cooling Capacity, [Btu/h]
7000
Input voltage (AC), [V]
230
Input frequency, [Hz]
60
Item Description
Item EXCLUDED from MDS and D365 at start of D365 for US111A and US212 2020-01-01 - RX7UC-417 REMOTE 230/60/1
Service ports on refrigerant lines and base valves give easy access
Vibration isolation mounts minimize compressor noise
Environmentally safe R-417A refrigerant
Electrical box can be mounted remotely
Condensate drain pan with front and rear drain stems
High efficiency compressors function well at lower
Corner mounting brackets for easier installation
SKU number
9108561190
Model
Remote R Condenser
Model on label
RX7UC-417 REMOTE 230/60/1
Product Description
Condensing Unit
Net weight, [lbs]
48
Input voltage (AC), [V]
230
Input frequency, [Hz]
60
Starting current - max, [A]
20
Required AC circuit protection min, [A]
7
Required AC circuit protection max, [A]
10
Refrigerant, type
R417A
Cooling Capacity, [Btu/h]
7000
Current consumption min cooling, [A]
3.3
Current consumption max cooling, [A]
3.3
Current consumption min heating, [A]
4
Current consumption max heating, [A]
4
EAN-13
0
Dimensions parcel depth, ["]
17
Dimensions parcel height, ["]
16
Dimensions parcel width, ["]
23
Parcel weight, [lbs]
55.76
Dometic DX Remote & Self-Contained A/C - Installation and Operating Manual AMER/EMEA(en)
Installation and Operating Manual
