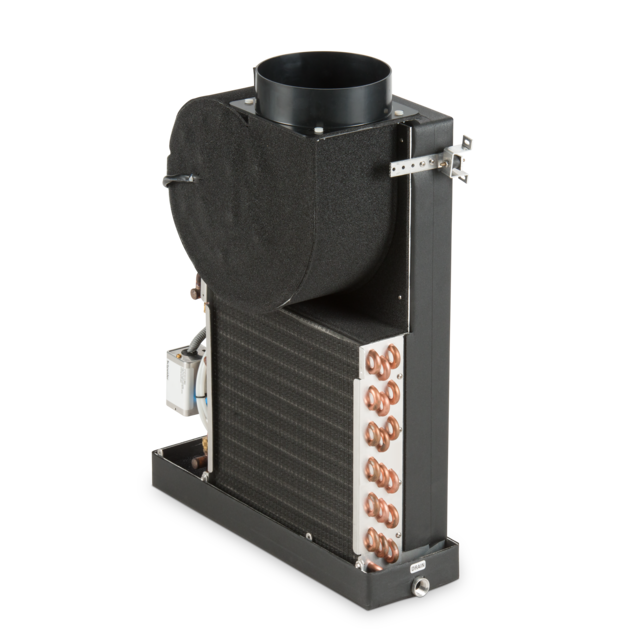

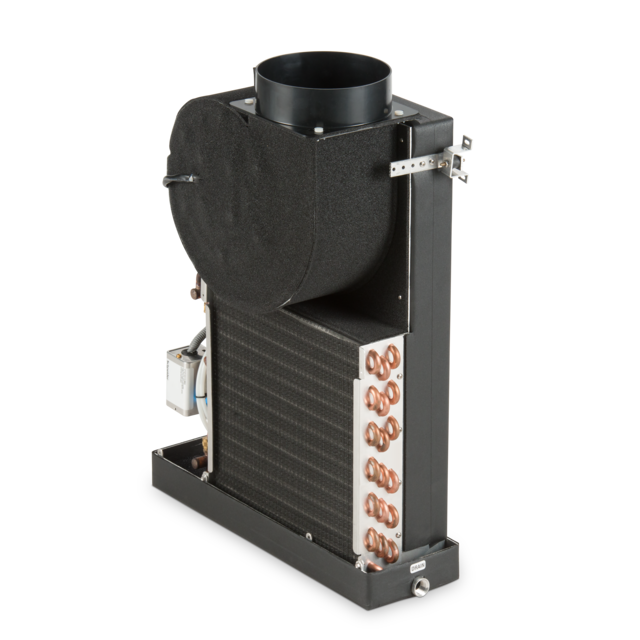

Dometic ATV-HV
CHILLED WATER AIR HANDLER
Sold in our dealer networkArt nr: 9108688796
This air handler's slim-profile design is ideal for installation in walls and other areas where depth is limited. Its powerful blower ensures cool air is distributed effectively.
Unique vertical design results in dramatically reduced depth
Powerful blower with internal motor to reduce depth
Insulated condensate pan with anti-slosh, anti-fungal foam lining
Exposed components are insulated against secondary condensation
SKU number
9108688796
Model
Chillers Air Handlers ATV
Model on label
ATV18HVZ-LP-FC-
Product Description
CHILLED WATER AIR HANDLER
Net weight, [lbs]
25
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Required AC circuit protection min, [A]
10
Required AC circuit protection max, [A]
10
Cooling capacity (ISO 5151), [W]
18000
Current consumption min cooling, [A]
1.15
Current consumption max cooling, [A]
1.15
Current consumption min heating, [A]
9.9
Current consumption max heating, [A]
9.9
EAN-13
7315091253727
Dimensions parcel depth, ["]
34.5
Dimensions parcel height, ["]
13.25
Dimensions parcel width, ["]
19 1/2
Parcel weight, [lbs]
34.03
WARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov
