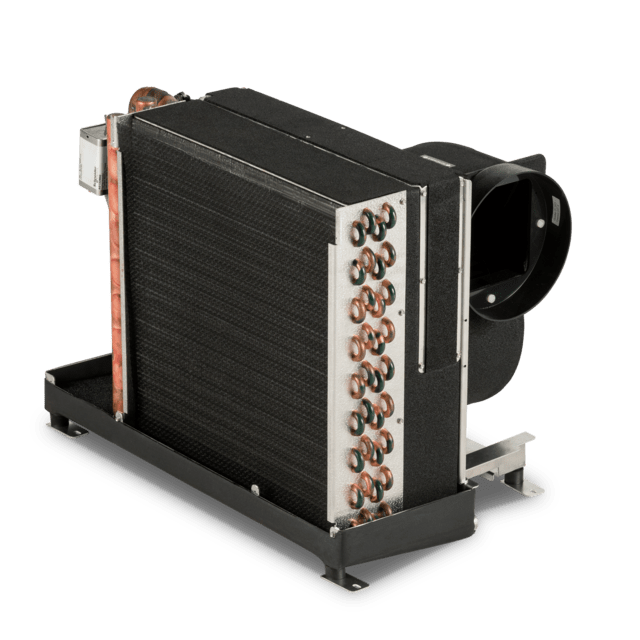

Dometic AT-HV

Air Handler

The AT-HV series of air handlers feature powerful, rotatable blowers for superb air distribution. The AT-HV series replaces Flex-Duct and Draw-Through series air handlers, and has many improvements compared to these older units. Easy to install and quiet operation.

Sold in our dealer networkArt nr: 9108551795

Powerful fully-insulated blowers are rotatable for effective air distribution

Vibration-isolation mounts reduce noise and vibration.

Improved cooling performance includes dehumidification

Remote air bleeder on 6 ft. (1.8 m) of flexible tubing with ball valve

Corrosion-resistant coating on evaporator coil, blower, and drain pan

Compact design

SKU number

9108551795

Model

Chillers Air Handlers AT

Model on label

AT36HVZ-FC-2X1.

Product Description

Air Handler

Net weight, [lbs]

54.70

Input voltage (AC), [V]

230

Input frequency, [Hz]

50/60

Required AC circuit protection min, [A]

16

Required AC circuit protection max, [A]

20

Cooling capacity (ISO 5151), [W]

36000

Current consumption min cooling, [A]

1.6

Current consumption max cooling, [A]

1.6

Current consumption min heating, [A]

14.7

Current consumption max heating, [A]

14.7

EAN-13

7315091244213

Dimensions parcel depth, ["]

36

Dimensions parcel height, ["]

26

Dimensions parcel width, ["]

25.7

Parcel weight, [lbs]

73.57
