Evaporator Unit

EBLE series low-profile evaporating units are ductable cooling/heating units. EBLE units are designed for installations where there is limited vertical space such as beneath a seat or bunk, or in overhead spaces. Ensure reliable onboard comfort.
  • Cool and heat
  • Low-profile
  • Rotatable blower
Capacity (BTU/h)
Item Description
EBLE12-230V 5"MR
Find another combination : 9108690353 (215400412) Visit support page + FAQ
...and more
    • Cools and heats for year-round comfort
    • Low-profile is ideal for height restricted installation
    • Rotatable blower allows air distribution exactly as you need it
    • Drain pan has anti-slosh, anti-fungal foam lining
    • Thermal expansion valve for optimal performance over a range of conditions
    • Available with electric heat (Dometic EBHLE models)
    • Designed to be used with Emerald series R-410A condensers

Low-profile, high-performance

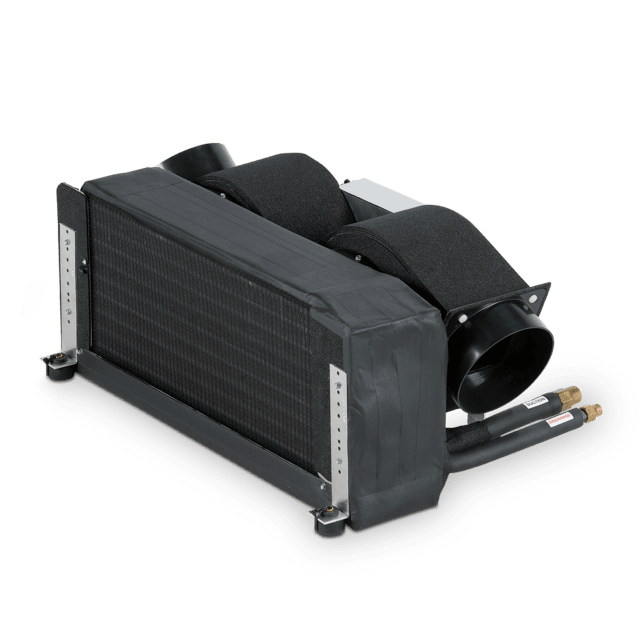

The Dometic EBLE 12,000 BTU/h - 230 V/60 Hz unit is designed for installations where there is limited height, such as beneath a seat or bunk, or in overhead spaces. The EBLE unit consists of a low-profile evaporator coil mounted on a deep condensate pan, with two high-efficiency permanent split capacitor (PSC) blowers drawing air across the coil. Refrigerant line connections and a metering device are also included. Refrigerant connections are male flare fittings. The variable-speed blower motor is internal to the blower wheel, which results in less noise and reduced unit depth for easier installation. The drain pan, blower housing and all transitional metal surfaces are covered with insulating foam to prevent secondary condensation and further reduce noise. The drain pan is lined with anti-slosh, antifungal foam, and the blowers can be rotated for flexible discharge options.


SKU number 9108690353
Model EVAPS EBLE Series
Model on label EBLE12-230V 5"M
US Item Name 215400412
Product Description Evaporator Unit
Dimensions product depth 13 1/2 "
Dimensions product height 11 4/16 "
Dimensions product width 24 "
Input voltage (AC) 230 V
Input frequency 50/60 Hz
Required AC circuit protection min 1.80 A
Required AC circuit protection max 5.00 A
Current consumption max cooling 1.50 A
EAN-13 7315091240055
Dimensions parcel depth 29.3 "
Dimensions parcel height 18.5 "
Dimensions parcel width 18.5 "
Parcel weight 37.13 lbs
