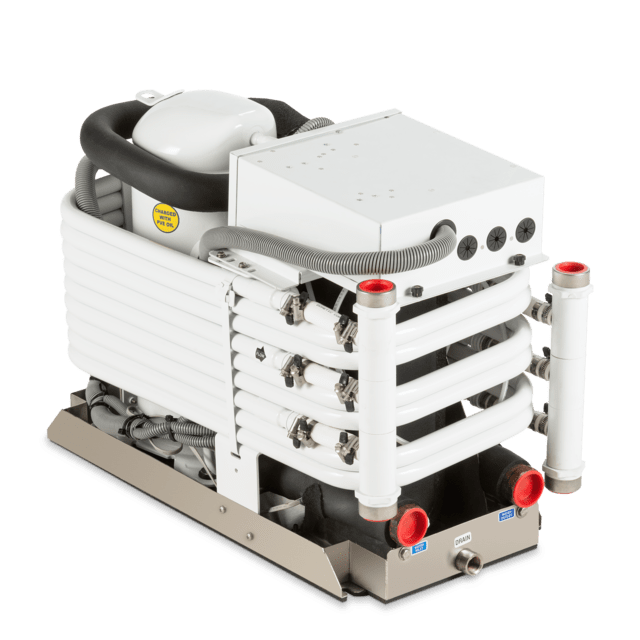

Dometic MCGX
Modular Titanium Chiller from 24000 BTU/h or 180000 BTU/h
Dometic MCGX modular chillers use titanium condensers to greatly increase durability and product lifespan. Titanium is unaffected by the punishing combination of saltwater, invasive marine life, and the harsh acids used for routine cleaning of the condenser coil. Titanium extends service life and is unaffected by the corrosion and erosion of the harsh marine environment.
-
ULTRA DURABLETITANIUM CONDENSER
-
DIGITAL CONTROLLERMONITOR & PROTECT
-
R-410A REFRIGERANT
art.nr :
9108886956 (260163007)
Visit support page + FAQ
...and more
- Available in 230V 50 Hz, 230V 60Hz, 400V 50Hz 3PH, 400V 60 Hz 3 PH
- Titanium condenser dramatically increases product lifespan
- Up to six modules can be staged
- Hermetically sealed and pre-charged with R-410A refrigerant
- Features freeze controls, high-limit switches, high and low aquastats and timers
- Unaffected by vibration, moisture or ambient temperatures up to 140 °F/60 °C
- Monitored and protected by Dometic’s exclusive Digital Diagnostic Controller (DDC)
Compact Base & Titanium Durability
Featuring a compact base design, these modules can be staged to provide a larger system which is easily retrofitted and staged in the field. Unaffected by vibration, moisture or ambient temperatures up to 140 °F/60 °C, these condensing units can be installed in any convenient location.
Specifications
General
SKU number
9108886956
Model Chiller Cond MCG LP Modular
Model on label MCGXLP48 2363
US Item Name 260163007
Product Description Modular Titanium Chiller from 24000 BTU/h or 180000 BTU/h
Model Chiller Cond MCG LP Modular
Model on label MCGXLP48 2363
US Item Name 260163007
Product Description Modular Titanium Chiller from 24000 BTU/h or 180000 BTU/h
Dimensions
Dimensions product depth
30 "
Dimensions product height 37 "
Dimensions product width 37 "
Net weight 183 lbs
Dimensions product height 37 "
Dimensions product width 37 "
Net weight 183 lbs
Electrical
Input voltage (AC)
230 V
Input frequency 60 Hz
Starting current - max 120.00 A
Required AC circuit protection min 33.00 A
Required AC circuit protection max 50.00 A
Input frequency 60 Hz
Starting current - max 120.00 A
Required AC circuit protection min 33.00 A
Required AC circuit protection max 50.00 A
Performance
Refrigerant, type
R410A
Cooling capacity (ISO 5151) 48000 W
Current consumption max cooling 11.30 A
Current consumption max heating 12.70 A
Cooling capacity (ISO 5151) 48000 W
Current consumption max cooling 11.30 A
Current consumption max heating 12.70 A
Logistics
EAN-13
0713814305079
Dimensions parcel depth 37 "
Dimensions parcel height 37 "
Dimensions parcel width 30 "
Parcel weight 265.34 lbs
Dimensions parcel depth 37 "
Dimensions parcel height 37 "
Dimensions parcel width 30 "
Parcel weight 265.34 lbs
