QUIET COOL

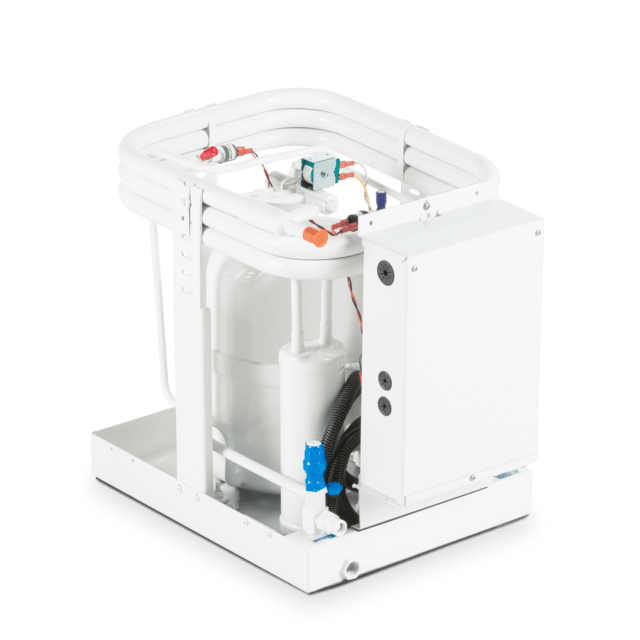

Dometic Remote R Condenser
Condensing Unit

Type R models are designed for installation in the vessel's engine room or other mechanical space. It is not affected by moisture, normal vibration, or ambient temperatures up to 140 °F (60 °C). No ventilation is required.
  • Easy access service port
  • Reduced noise
  • Eco-friendly
    R-417A refrigerant
art.nr : 9108561190 Visit support page + FAQ
The Dometic RX Condenser can be installed with up to two Dometic cooling units, where the total capacity is equal to the condensing unit capacity. In the cooling mode, full performance is available in seawater up to 90 °F/32 °C. In reverse-cycle heating, the unit will provide heat in seawater as low as 40 °F/4.4 °C.
Dometic Remote R Condenser
...and more
    • Service ports on refrigerant lines and base valves give easy access
    • Vibration isolation mounts minimize compressor noise
    • Environmentally safe R-417A refrigerant
    • Electrical box can be mounted remotely
    • Condensate drain pan with front and rear drain stems
    • High efficiency compressors function well at lower
    • Corner mounting brackets for easier installation

Cool and heat for year-round comfort

The Dometic RX7C-417 Series Condenser is the next generation of seawater-cooled, cooling and heating units in marine applications. Designed for installation in the vessel's engine room or other mechanical space. It is not affected by moisture, normal vibration, or ambient temperatures up to 140 °F (60 °C). No ventilation is required. It can be installed with up to two Dometic cooling units, where the total capacity is equal to the condensing unit capacity. In cooling mode, full performance is possible in seawater up to 90 °F (32 °C).While heating, the unit functions in seawater as cold as 40 °F (4.4 °C). A one-piece chassis/pan has a smaller footprint for easy installation, with two drain connections. Holddown brackets secure all four corners and allow for simpler installation and removal with vibration isolation mounting to reduce noise. The one-piece electrical box with 3 ft. (0.9 m) cable can be remotely mounted. Additional service ports have been added for ease of charging and servicing. The R type unit is designed as a drop-in for the older F and J type with few modifications. Offering reliable operation in tough conditions.

Specifications

SKU number 9108561190
Model Remote R Condenser
Model on label RX7UC-417 REMOTE 230/60/1
US Item Name 701307201
Product Description Condensing Unit
Net weight 48 lbs
Input voltage (AC) 230 V
Input frequency 60 Hz
Starting current - max 20 A
Required AC circuit protection min 7 A
Required AC circuit protection max 10 A
Refrigerant, type R417A
Current consumption max cooling 3 A
Current consumption max heating 4 A
Dimensions parcel depth 17 "
Dimensions parcel height 16 "
Dimensions parcel width 23 "
Parcel weight 55.75 lbs
