Convenient slide-out access, noiseless operation, low energy consumption: Dometic drawer minibars set new benchmarks in comfort and cooling efficiency.
[]
Pull-out cool
[]
Light the way
[]
Organized storage
Technical Information
Specifications
General
Scope of delivery
1 minibar, 1 manual
SKUCertificates
EMC;CB;KC
Product Description
Drawer Minibar
Dimensions
Dimensions product depth, [mm]
398
Dimensions product height, [mm]
365
Dimensions product width, [mm]
384
Dimensions product width, ["] - Display
15.12
Net weight, [kg]
12.30
Net weight, [lbs]
27.12
Total volume (IEC 62552-3), [l]
20.000000
Electrical
Input voltage (AC), [V]
220-240
Rated input current (AC), [A]
0.35
Rated input power (AC), [W]
52
Input frequency, [Hz]
50/60
Performance
Hermetically Sealed
Yes
Refrigerant, type
R600a
Noise (EN60704-1 & 60704-2-14), [dB(A)]
0.000000
Annual energy consumption at AC, EU (EN62552-3:2020), [kWh/a]
109
Energy efficiency class (Regulation (EU) 2019/2016)
G
Climate class (EN 62552)
N
Insulation Type
PU (Polyurethane)
Properties
Thermostat control
Electronic Thermostat
Hinge type
Drawer
Interior light
Yes, LED
Logistics
Dimensions parcel depth, [mm]
470
Dimensions parcel height, [mm]
400
Dimensions parcel width, [mm]
470
Parcel weight, [kg]
14.20
Parcel weight, [lbs]
31.31
Specifications
Get the Highlights

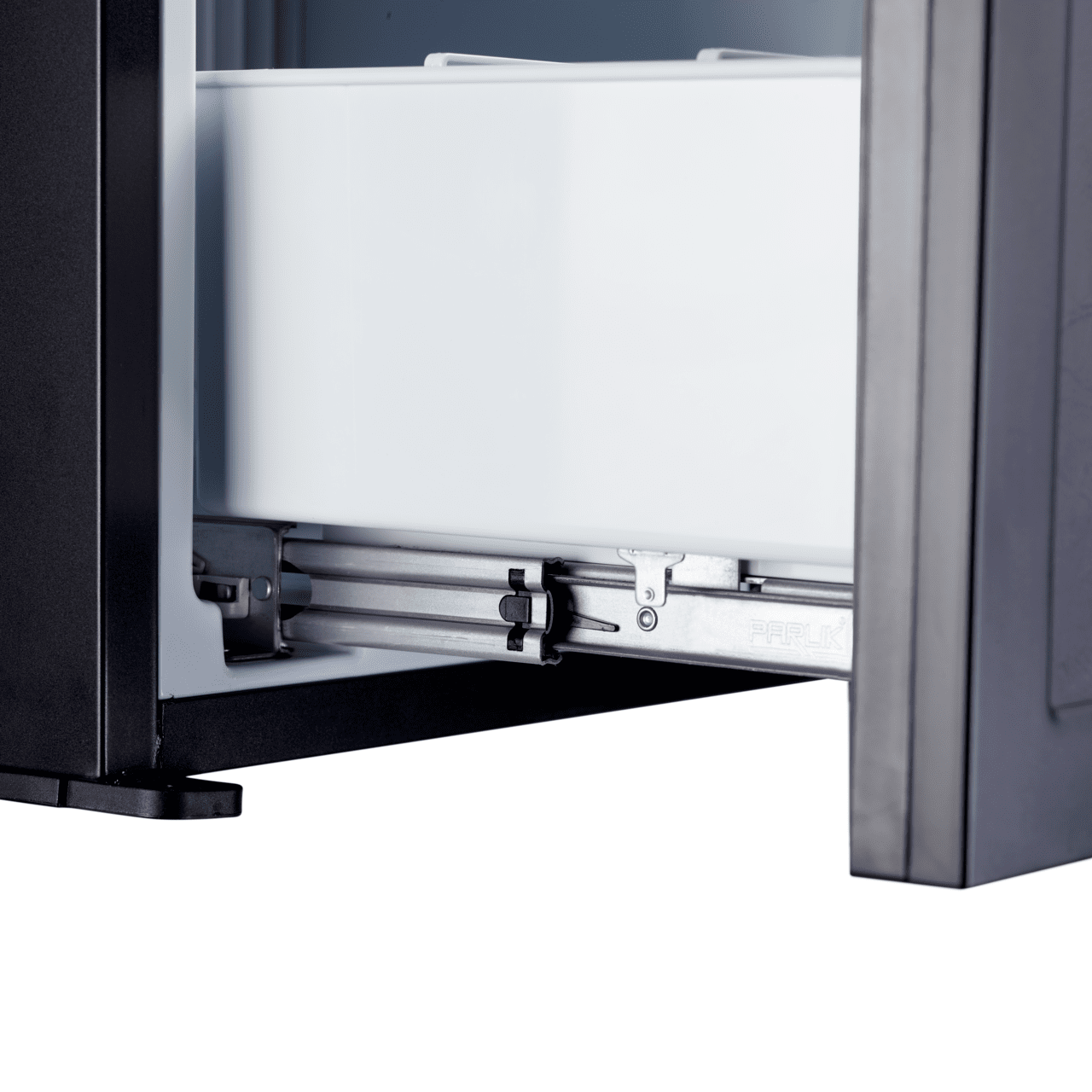

Pull-out cool
This 20 l class pull-out minibar is highly convenient.

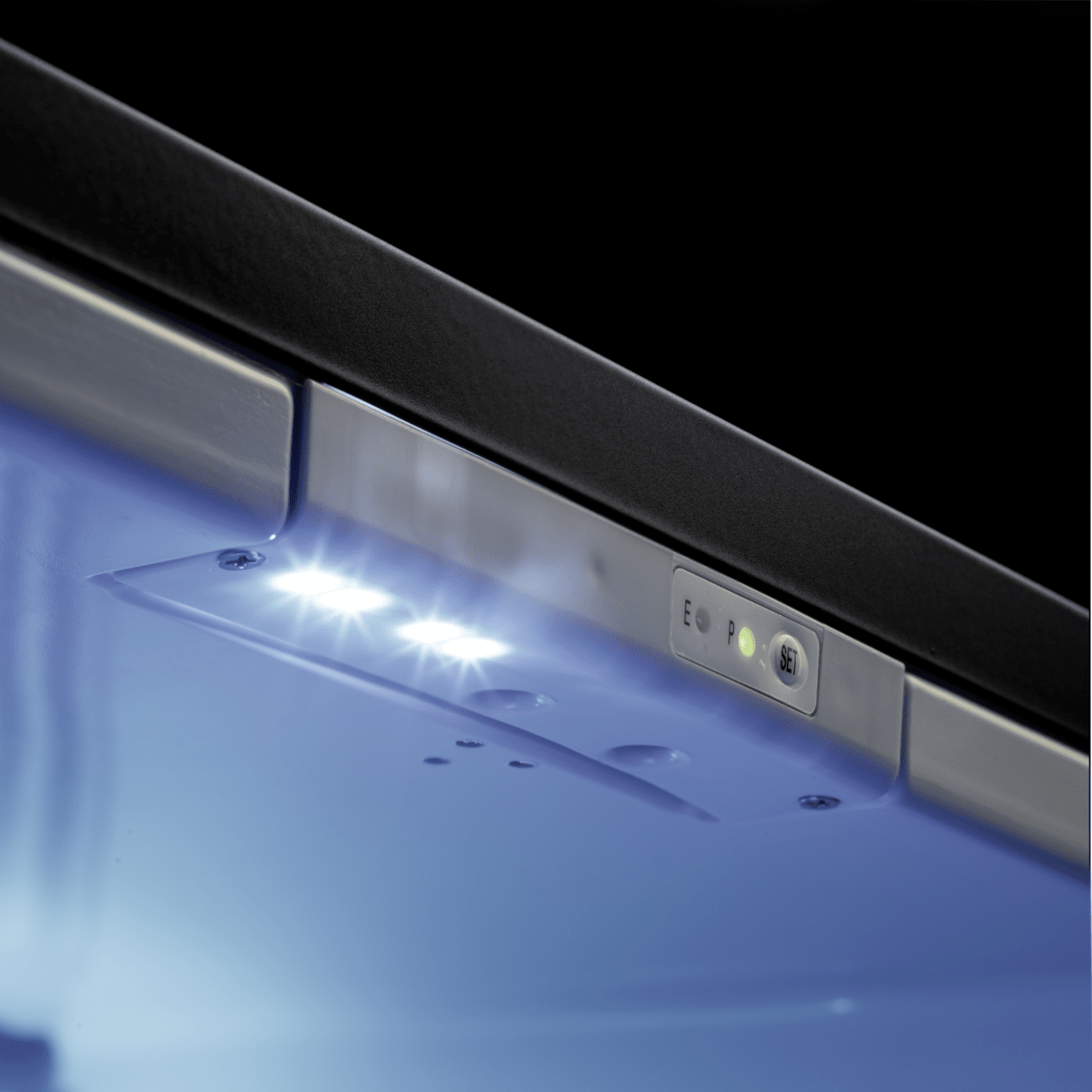

Light the way
This helpful LED light will help you find what you are looking for.

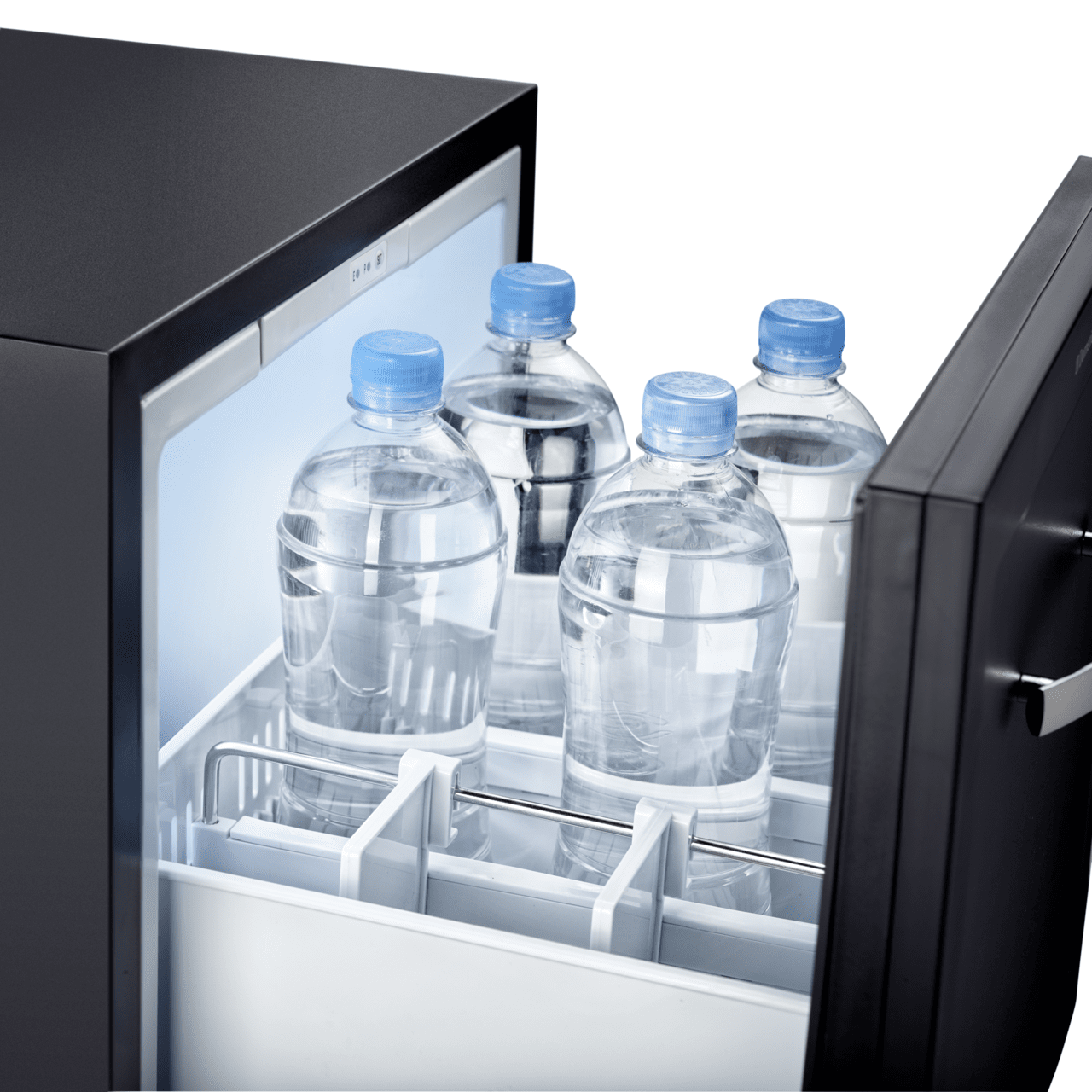

Organized storage
Compartment dividers ensure organized storage and tempting presentation.
