Dometic DrawBar 5S
Dometic DrawBar 5S
Dometic DrawBar 5S
Dometic DrawBar 5S
Dometic DrawBar 5S
Dometic DrawBar 5S

Dometic DrawBar 5S

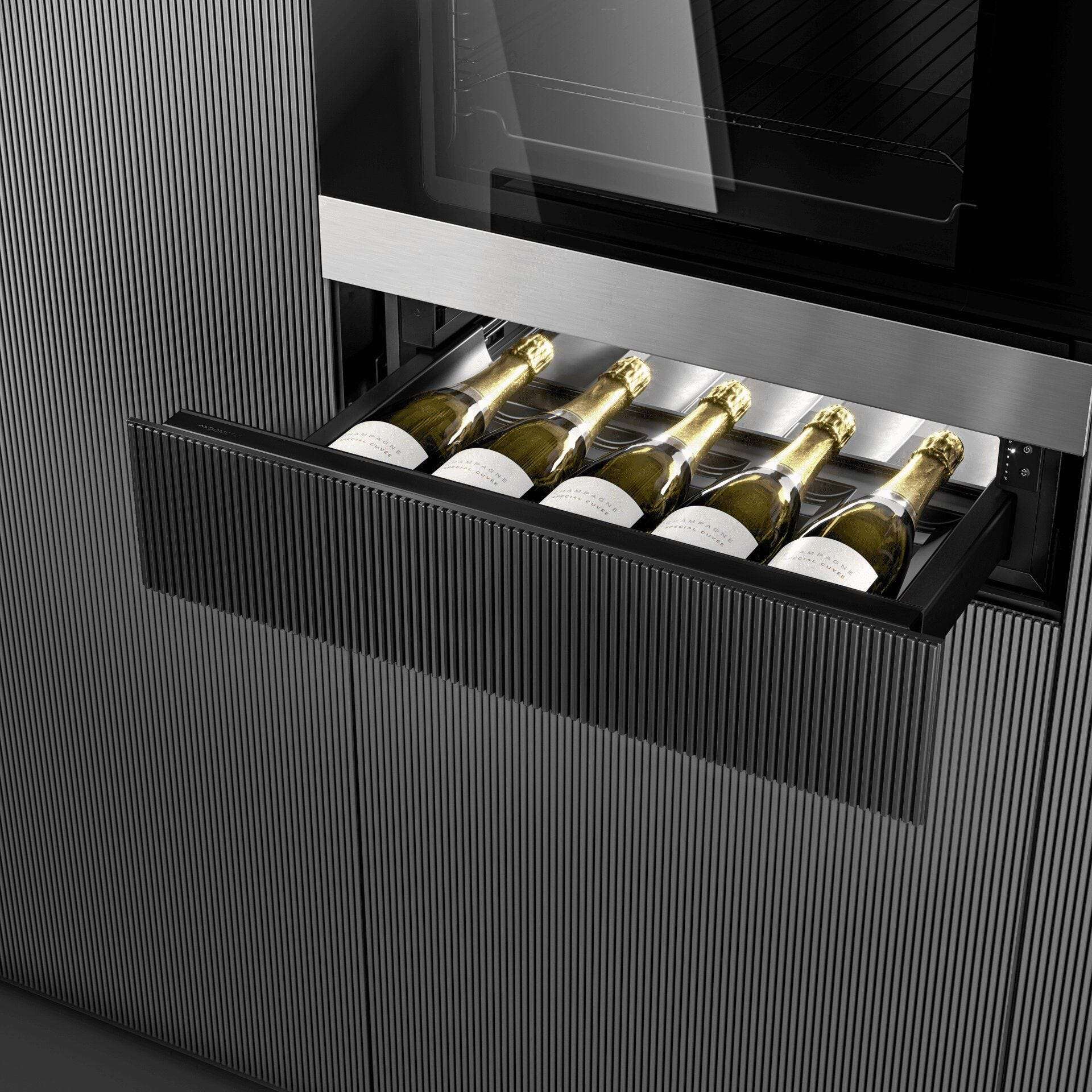

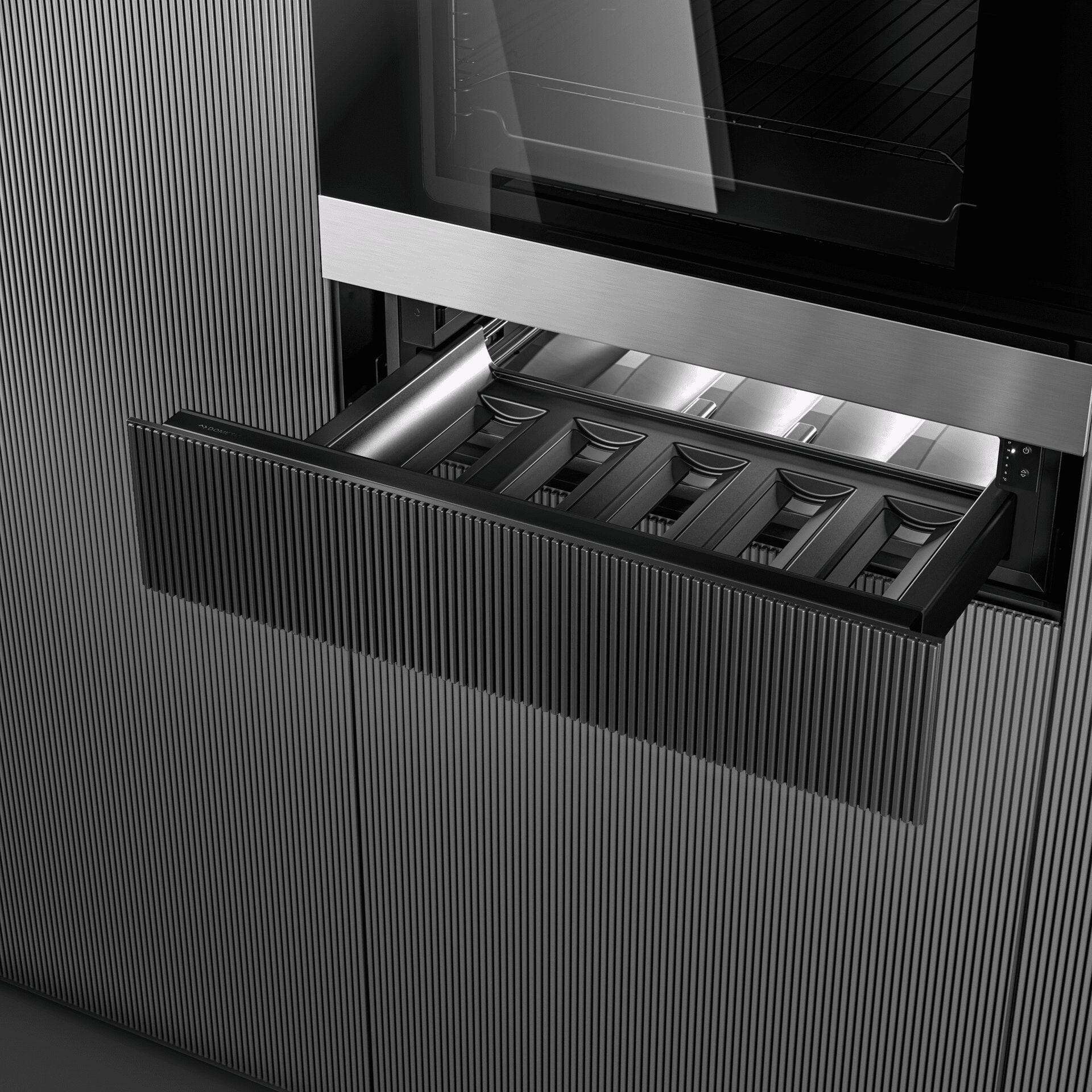

Compact wine cooler, 5 bottles, custom-built door

EU Energy Label Class G

SKU: 9600049434

Elevate your kitchen with Dometic DrawBar – the perfect finishing touch. DrawBar blends seamlessly in any kitchen, cools five bottles, and ensures they are always ready to serve at the ideal temperature. Soft illumination adds a touch of luxury.
  • []

    A perfect wine experience

  • []

    Compact wine storage

  • []

    Perfect fit

  • []

    Designed to stand out

  • []

    Controlled storing

AWARDS
Technical Information

Specifications

General
Scope of delivery
1 drawbar;2 manuals
SKUCertificates
UKCA;CB;CE
Product Description
Compact wine cooler, 5 bottles, custom-built door
Dimensions
Dimensions product depth, [mm]
548
Dimensions product height, [mm]
141
Dimensions product width, [mm]
554
Dimensions product width, ["] - Display
21.81
Net weight, [kg]
16.40
Net weight, [lbs]
36.16
Total volume (IEC 62552-3), [l]
15.000000
Electrical
Input voltage (AC), [V]
220-240
Rated input power (AC), [W]
45
Input frequency, [Hz]
50
Performance
Hermetically Sealed
Yes
Refrigerant, type
R600a
Refrigerant, type
R600a
Noise (EN60704-1 & 60704-2-14), [dB(A)]
45.000000
Annual energy consumption at AC, EU (EN62552-3:2020), [kWh/a]
117
Energy efficiency class (Regulation (EU) 2019/2016)
G
Climate class (EN 62552)
N
Insulation Type
PU (Polyurethane)
Properties
Thermostat control
Electronic Thermostat
Hinge type
Drawer
Interior light
Yes, LED
Logistics
Dimensions parcel depth, [mm]
678
Dimensions parcel height, [mm]
218
Dimensions parcel width, [mm]
710
Parcel weight, [kg]
20.40
Parcel weight, [lbs]
44.98
Specifications
Documentation & Downloads
Get the Highlights
A perfect wine experience

A perfect wine experience

Optimal serving temperature for different types of wine: 5, 8, 11, 14 or 17°C.

Compact wine storage

Compact wine storage

Close at hand and fits up to five bottles, from long Riesling to large Champagne.

Perfect fit

Perfect fit

Glass or custom front panels ensure a refined and coordinated finish to your kitchen.

Designed to stand out

Designed to stand out

Soft illumination elegantly showcases your wine bottles and adds a touch of luxury.

Controlled storing

Controlled storing

Powerful and efficient compressor cooling technology and humidity-control tray.
