Dometic Emerald Titanium DEGX
6000
230
50/60
DEGX6-2371-410 DGLC

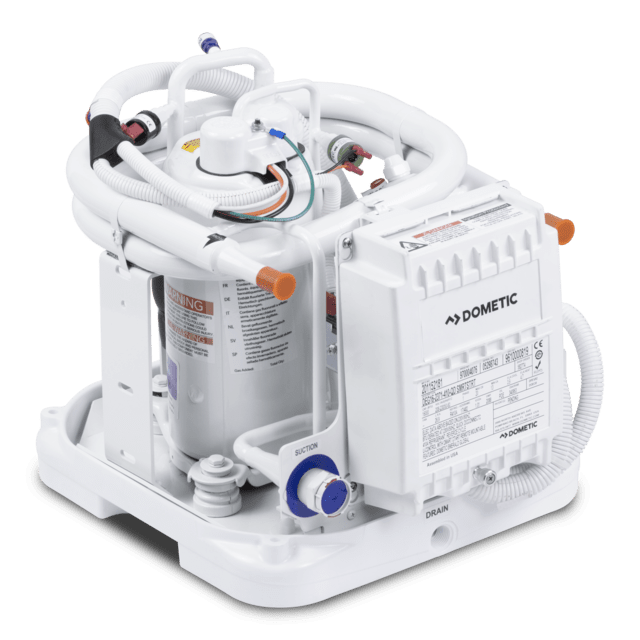

This titanium condenser has a square chassis for easy installation, while the reversing valve, pressure switches, and service ports are all centrally located for convenient maintenance access. Vibration-isolating compressor mounting system reduces noise and vibration. Pair this condenser with a Dometic Emerald TurboVap R-410A evaporator.
Available in dual frequency for global operation (115 V or 230 V 50/60 Hz)
Split-gas system confines compressor noise to the engine room and places quiet evaporating units in living areas
Square chassis for easy installation in tight spaces
Reversing valve pressure switches and service ports centrally located for easy maintenance from any side
Corrosion resistant composite drain pan
Reconfigurable chassis allows optimal drain connections
Rotary style compressor for quiet and efficient operation
SKU number
9610005142
Model
DEGX
Model on label
201152074
Product Description
Condensing Unit from 6,000 BTU/h to 16,000 BTU/h
Dimensions product depth, ["]
15.10
Dimensions product height, ["]
12
Dimensions product width, ["]
13.30
Net weight, [lbs]
43
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Starting current - max, [A]
10
Required AC circuit protection min, [A]
5
Required AC circuit protection max, [A]
5
Refrigerant, type
R410A
Cooling Capacity, [Btu/h]
6000
Current consumption min cooling, [A]
1.6
Current consumption max cooling, [A]
1.6
Current consumption min heating, [A]
2.2
Current consumption max heating, [A]
2.2
Thermostat control
Electronic Thermostat
EAN-13
7315091493550
Dimensions parcel depth, ["]
24
Dimensions parcel height, ["]
18 1/2
Dimensions parcel width, ["]
17
Parcel weight, [lbs]
50.05
