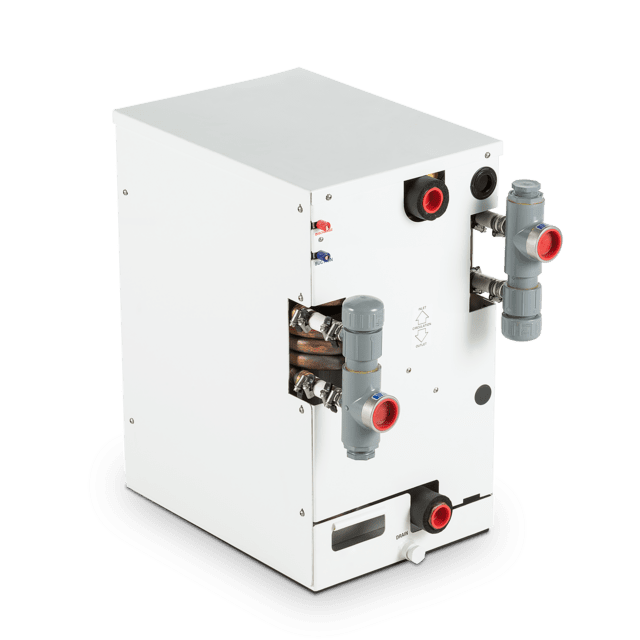

Dometic TWDX
Titanium Compact Chiller Series
Sold in our dealer networkArt nr: 9108893817
Your Configurations
Cooling Capacity, [Btu/h]
48000
Input voltage (AC), [V]
230
Input frequency, [Hz]
60
Item Description
TWCX48 2361 DDC 410A
Modular titanium chiller available from 24,000 to 72,000 BTU/h
Available in 230V 50Hz, 230V 60 Hz, 400V 50Hz, 400V 60 Hz 3PH
With DDC - Digital Diagnostic Control
Titanium condenser resists erosion and corrosion
Reverse-cycle unit cools and heats
Can be multiplexed for larger capacity
Includes flow switch, high- and low pressure switches, and inlet and outlet circulated water temperature sensors
Compact, enclosed design. High-efficiency rotary or scroll compressors
SKU number
9108893817
Model
Chiller Cond TWC Modular
Model on label
TWCX48 2361 DDC
Product Description
Chilled Water Module Titanium Compact from 24,000 to 72,000 BTU/h
Dimensions product depth, ["]
23.90
Dimensions product height, ["]
23.40
Dimensions product width, ["]
13.30
Input voltage (AC), [V]
230
Input frequency, [Hz]
60
Starting current - max, [A]
150
Required AC circuit protection min, [A]
48
Required AC circuit protection max, [A]
80
Refrigerant, type
R410A
Cooling capacity (ISO 5151), [W]
14067.41
Current consumption min cooling, [A]
13.8
Current consumption max cooling, [A]
13.8
Current consumption min heating, [A]
20.2
Current consumption max heating, [A]
20.2
EAN-13
7315091240888
Dimensions parcel depth, ["]
25.25
Dimensions parcel height, ["]
31
Dimensions parcel width, ["]
28
Parcel weight, [lbs]
190.27
