Description
- Available in 12 V DC or 24 V DC models
- Separate from vacuum tank for flexible installation
- Can run dry without causing damage
Proven in thousands of motor yachts, our bellows-style vacuum pump is ideal for powering VacuFlush toilets. Connects to separate vacuum tank (model VT).
Specifications
SKU: 9108554750
| Model | S |
|---|---|
| Scope of delivery | Pump, Adapter, Manual |
| Product Description | Vacuum Pump, 12 V |
| Dimensions product depth, [mm] | 279.4 |
|---|---|
| Dimensions product height, [mm] | 177.8 |
| Dimensions product width, [mm] | 177.8 |
| Net weight, [kg] | 3.18 |
| Input voltage (DC), [V] | 12 |
|---|
| Dimensions parcel depth, [mm] | 304.8 |
|---|---|
| Dimensions parcel height, [mm] | 215.9 |
| Dimensions parcel width, [mm] | 209.55 |
| Parcel weight, [kg] | 3.63 |

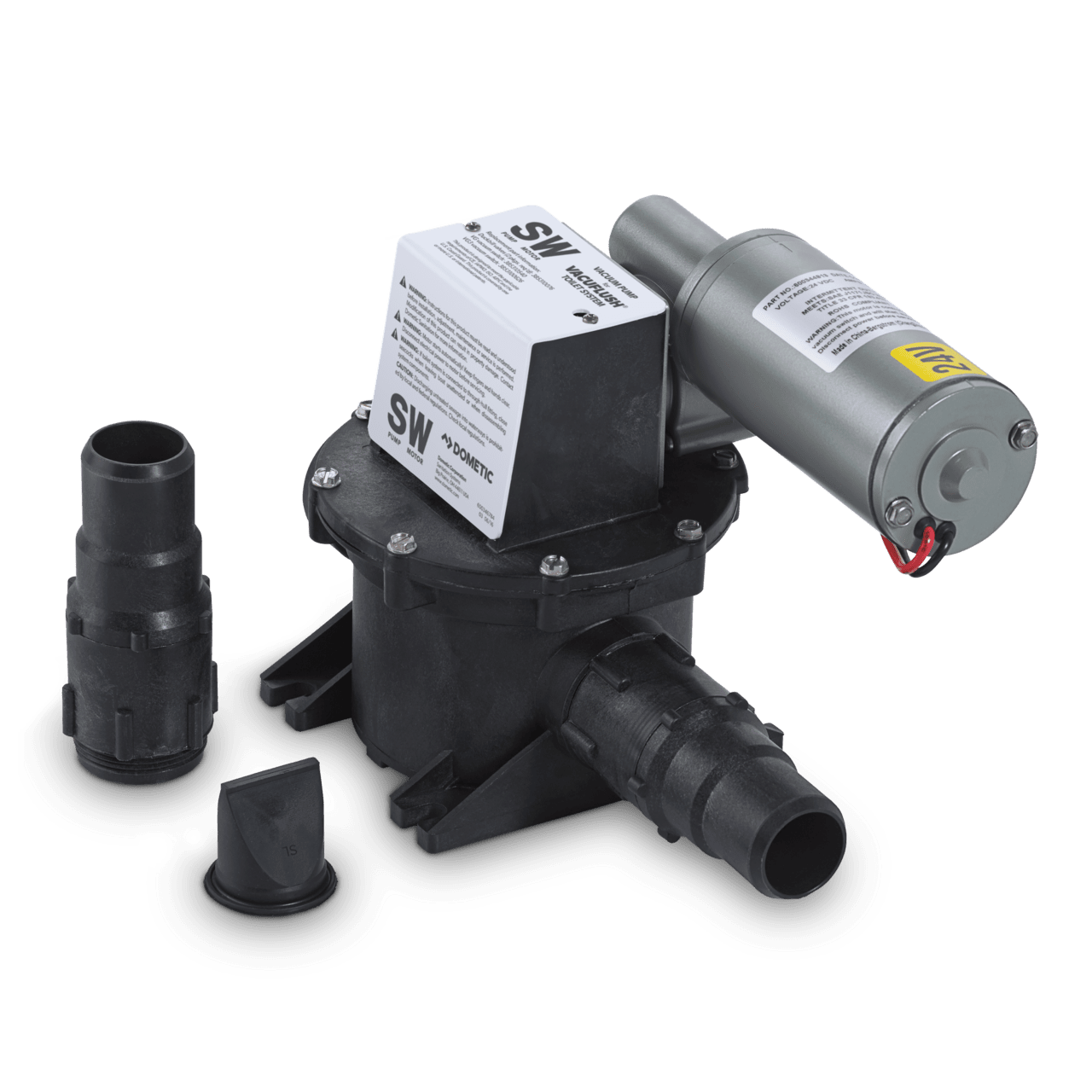

Proven reliability
The bellows-style operation of the Dometic SW vacuum pump creates vacuum quickly in a VacuFlush toilet system to provide fast recharge between powerful toilet flushes. Must be connected to vacuum tank (available spearately).
