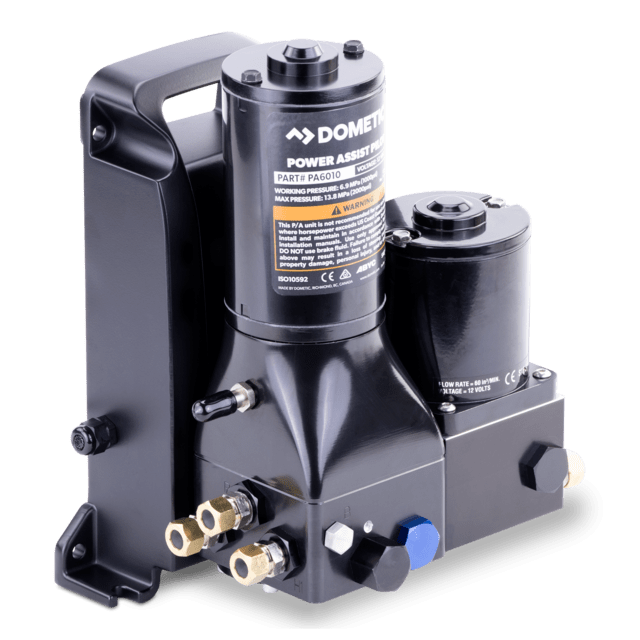

Dometic Power Assist Autopilot Pump
15
SEASTAR POWER ASSIST AUTOPILOT, 24V TYPE 1
The Dometic Autopilot Pump, combined with our Power Assist system, provides power assisted steering when the autopilot is in standby mode. Available in type 1 or type 2, the Dometic Autopilot Pump is a fixed-flow, reversible pump set that uses a high efficiency hydraulic gear pump, producing very little vibration or noise. It is offered in 12V and 24V configurations.
Converts manual hydraulic steering to power steering
Dramatically reduces steering wheel torque
Easy installation
OEM or retrofit
Suitable for Dometic helm pumps 1.4-2.4
Compatible with Power Purge system
Ignition protected
SKU number
9130001045
Model
Power Assist Autopilot Pump
Model on label
TBD
Legacy Factory Item Number
PA7010
Product Description
Dimensions product depth, ["]
14
Dimensions product height, ["]
13 1/2
Dimensions product width, ["]
11
Net weight, [lbs]
23.60
Maximum Pressure rating, [psi]
2000
Colour
Black
Allowable Fluid Type
SeaStar steering fluid
Port Type
3/8 Compression Fitting
Wire Gauge, [awg]
10
Wire Length, [']
15
EAN-13
0
