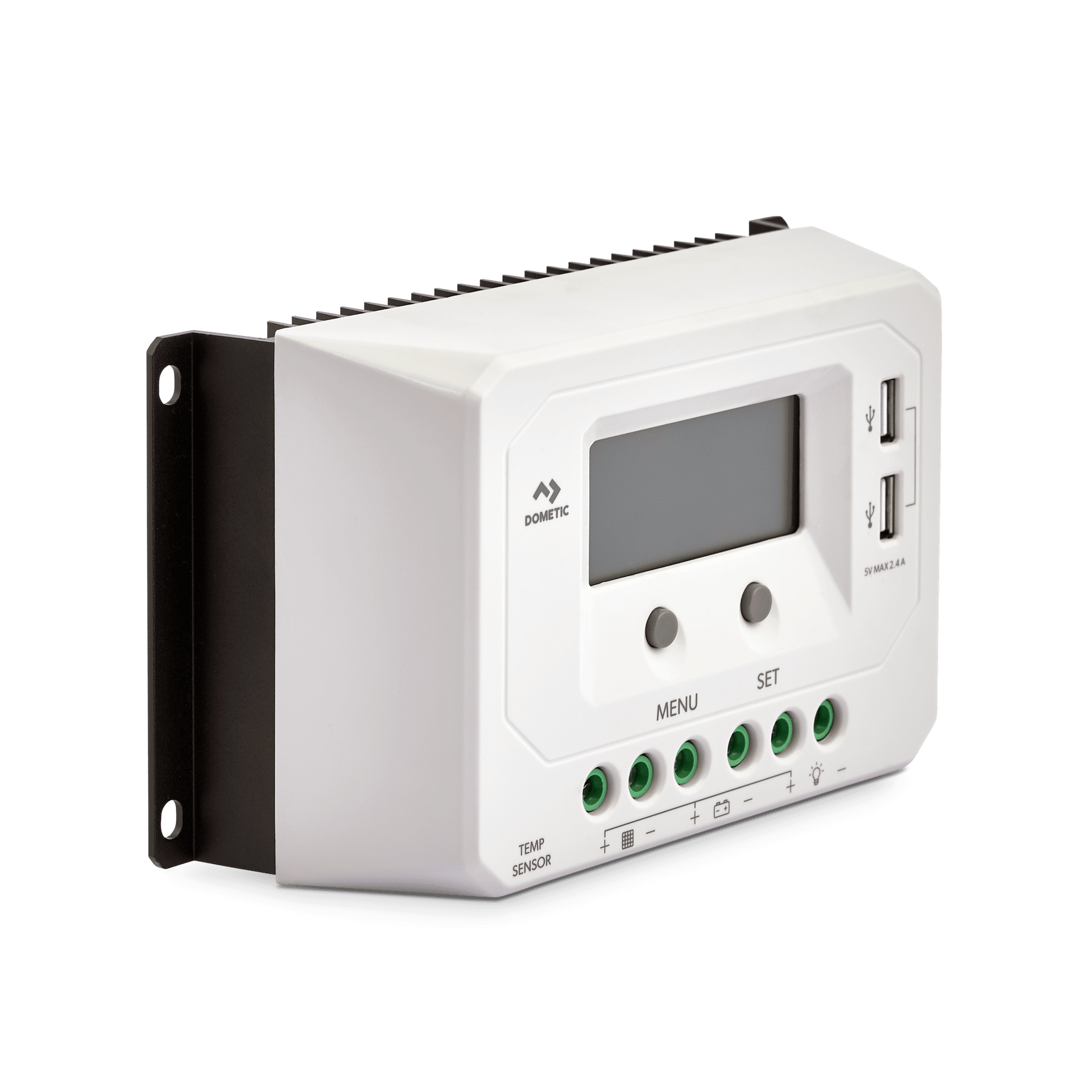

Dometic SC1230

30 A Solar charge controller

The Dometic SC1230 Solar Controller is an easy-to-use solar charge controller that is suitable for use with sealed, gel and flooded batteries.

Description

  1. 3 stage intelligent PWM solar charging
  2. Suitable for use with a range of battery types
  3. Informative backlight LCD display
  4. Twin USB ports
  5. Low voltage disconnect
  6. Operating temperature range of -25˚C - +55˚C
  7. Multiple load control modes

Specifications

SKU: 9600005819

Dometic SC1230 — General specifications
ModelSC1230
Scope of delivery30A PWM Solar controller
Product Description30 A Solar charge controller

Dometic SC1230 — Dimensions specifications
Dimensions product depth, [mm]59.80
Dimensions product height, [mm]100.90
Dimensions product width, [mm]181
Net weight, [kg]0.55

Dometic SC1230 — Electrical specifications
Input voltage (DC), [V]12/24
Battery typeAGM
IP classIP21

Dometic SC1230 — Logistics specifications
Dimensions parcel depth, [mm]80
Dimensions parcel height, [mm]115
Dimensions parcel width, [mm]205
Parcel weight, [kg]0.66

Dometic SC1230-PWM - Installation and Operating Manual APAC(en)
Installation And Operating Manual

Product size & weight

W 181 x H 100.90 x D 59.80 mm

Weight: 0.55 kg
