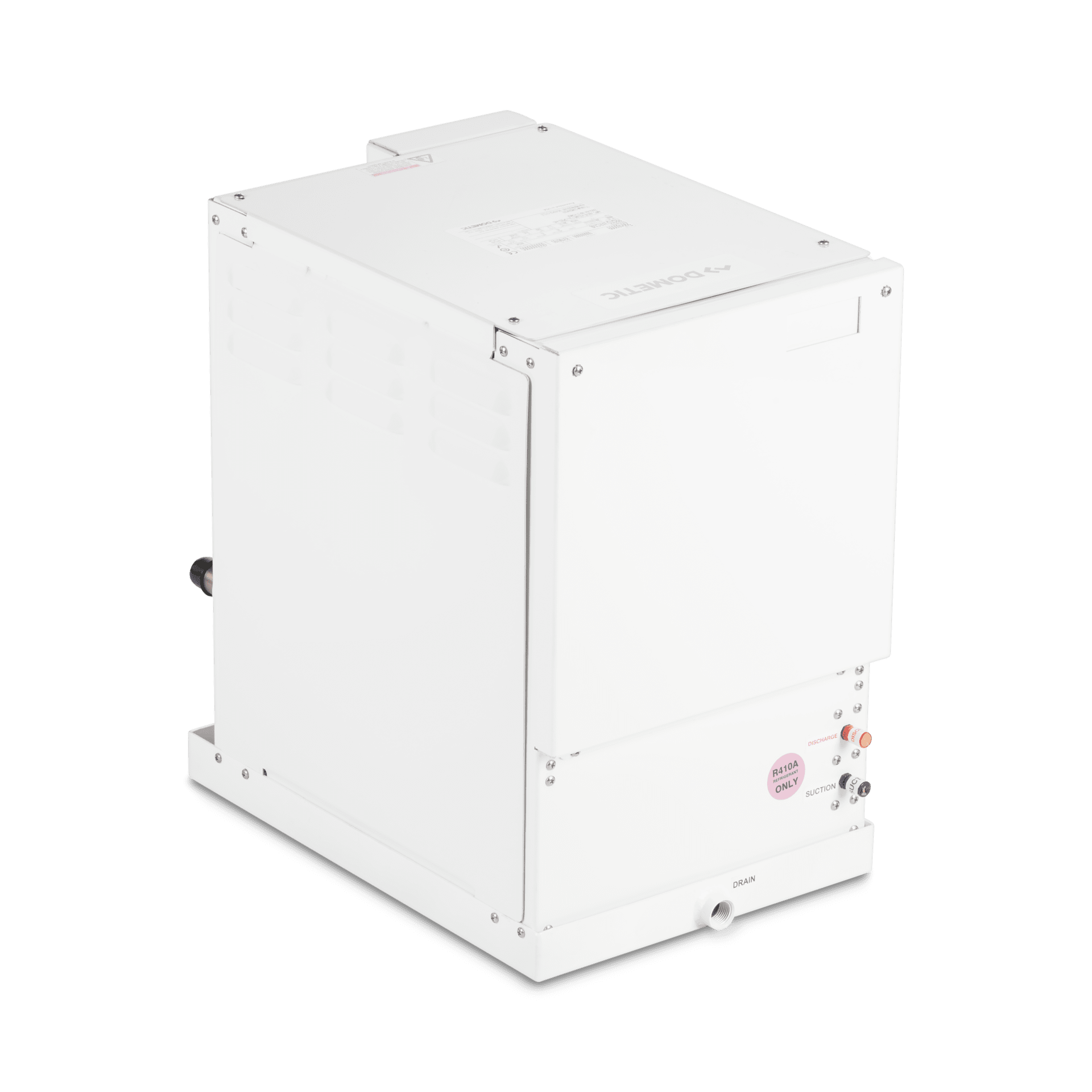

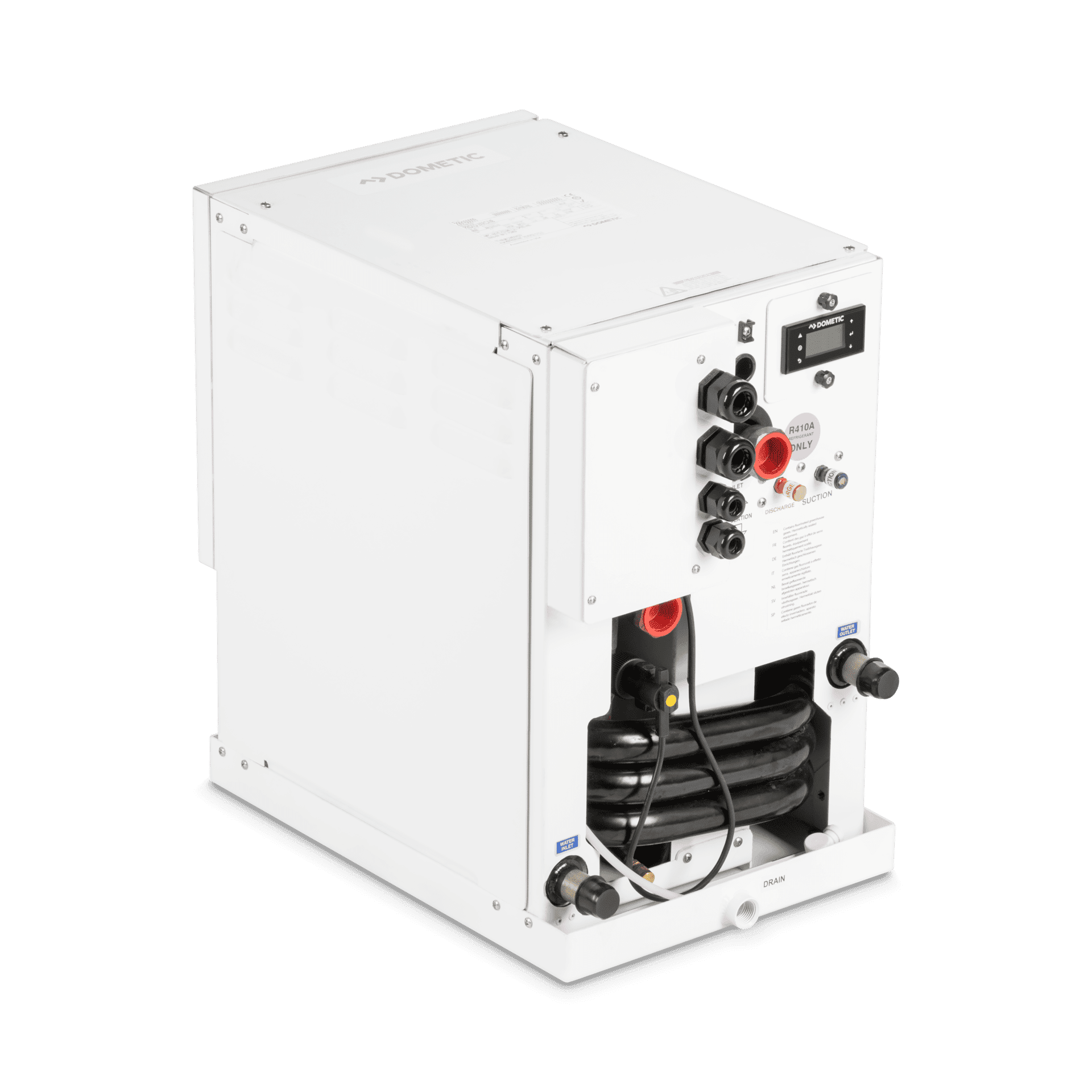

Dometic VARCX

Variable Capacity Titanium Chiller, 72 000 BTU/h

Cooling Capacity Display: 72000
Input voltage (AC), [V]: 230
Input frequency, [Hz]: 50/60
Item Description: VARCX72 2371

Maximize chiller efficiency and reduce electrical load fluctuations with Dometic’s innovative Variable Capacity Chiller (VARCX). Now with titanium condensers!

Description

  1. Variable capacity through unit's BTU range as thermal load changes
  2. Compact footprint
  3. Select from three user-adjustable amp limits: Econo, Standard, or Boost
  4. Electronic expansion valve for precise control of superheat
  5. Operates steadily at lower speeds to provide maximum efficiency
  6. Easy, flexible plumbing configurations with less depth needed
  7. Works with Dometic STIIC software to provide interactive management via smart phone, tablet, or computer, as well as secure access from Dometic global technical support

Specifications

SKU: 9600017093

Dometic VARCX — General specifications
ModelChiller Cond VARCX
Product DescriptionVariable Capacity Titanium Chiller, 72 000 BTU/h

Dometic VARCX — Dimensions specifications
Dimensions product depth, [mm]647.70
Dimensions product height, [mm]609.60
Dimensions product width, [mm]336.55
Net weight, [kg]81.65

Dometic VARCX — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]48
Required AC circuit protection max, [A]50

Dometic VARCX — Performance specifications
Hermetically SealedYes
Refrigerant, typeR410A
GWP2088
CO2 equivalent, [t]3,552
Cooling Capacity ISO5151 Display21101.12
Cooling Capacity Display72000
Current consumption min cooling, [A]27.2
Current consumption max cooling, [A]27.2

Dometic VARCX — Logistics specifications
Dimensions parcel depth, [mm]942.34
Dimensions parcel height, [mm]889
Dimensions parcel width, [mm]787.4
Parcel weight, [kg]118.99

Dometic VARCX Chiller - Declaration of Conformity EU
Declaration Of Conformity
Dometic Chilled Water System - Installation and Operating Manual - AMER(en)
Installation And Operating Manual
Dometic VARCX (PLC Chiller Controls) - Installation and Operating Manual - Marine INT24
Installation And Operating Manual
Dometic VARCX (PLC Chiller Controls) - Short Installation and Operating Manual - Marine INT5
Short Installation Manual
Dometic Service Event Request & Claim Reimbursement Form for Marine Air Conditioning - Warranty Document AMER(en)
Warranty Document
Dometic Marine Warranty Policy (Air Condition and Refrigeration) - Owner’s Limited Warranty Policy AMER(en)
Warranty Document
Dometic Marine Warranty Card for Marine Air Conditioning, Marine Refrigeration - Warranty Document AMER3/APAC1
Warranty Document
Dometic Marine Warranty Claim Guidelines for Marine Air Conditioning, Marine Refrigeration, Marine Ice machines - Warranty Document AMER(en)/APAC
Warranty Document
Dometic Climate Parts Guide.pdf

Product size & weight

W 336.55 x H 609.60 x D 647.70 mm

Weight: 81.65 kg
