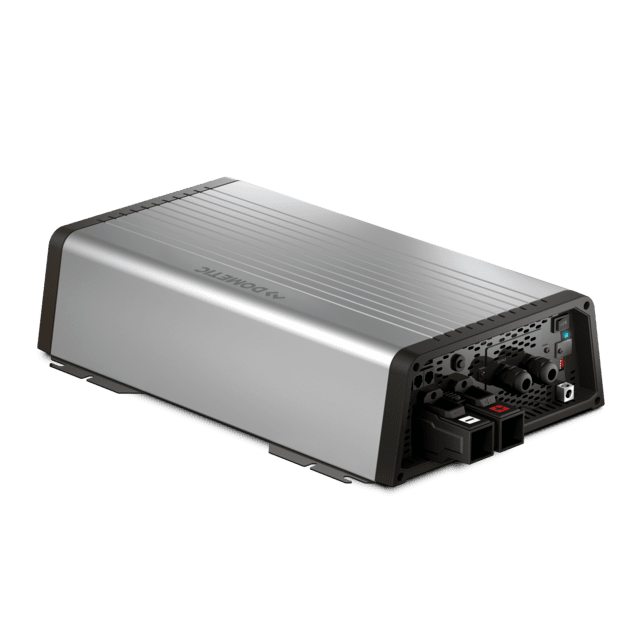

Dometic SinePower DSP 3512T

Comfort sine wave inverter, 3500 W, 12 V
Art nr: 9600005008

Designed to turn 12 V battery power into pure 230 V AC, this comfort sine wave inverter ensures reliable operation of electric devices up to 3500 W from the vehicle battery. Special highlights of this top-of-the-range product: battery-saving mains priority circuit; energy-saving Smart Standby mode; elegant control panel for convenient operation and a perfect overview.

Pure sine wave 230 V AC output voltage is suitable for sensitive electronic devices

New Smart Standby mode saves energy when the device is not needed

New user interface for easy operation and control

CI-Bus compatible – easy to include in the vehicle grid

Integrated mains priority circuit with voltage synchronisation

Wide DC input voltage range – ideal for vehicles with EURO 6 emission standard

Quiet fan is load and temperature-controlled

SKU number

9600005008

Model

DSP3512T

Product Description

Comfort sine wave inverter, 3500 W, 12 V

Dimensions product depth, [mm]

490

Dimensions product height, [mm]

122

Dimensions product width, [mm]

324

Net weight, [kg]

10.90

Input voltage (DC), [V]

12

Output voltage, [V]

230

Current consumption - Zero load, [A]

3,6

Current consumption - Standby mode, [mA]

200

Energy efficiency, [%]

>89%

Continuous power 25°C, [W]

3500

Operating temperature min, [°C]

-20

Operating temperature max, [°C]

60

EAN-13

4015704266368

Dimensions parcel depth, [mm]

643

Dimensions parcel height, [mm]

220

Dimensions parcel width, [mm]

418

Parcel weight, [kg]

12.20

DoC DSPT Series 20190430

Declarations of Conformity

Download

Dometic DSP Accessory Marine Kit - Leaflet

Installation Manual

Download

Product Highlights

New user interface
1 of 1

New user interface

Attractive design, easy to use and control
