Convenient slide-out access, noiseless operation, low energy consumption: Dometic drawer minibars set new benchmarks in comfort and cooling efficiency.
[]
Light the way
[]
Organised storage
[]
Pull-out cool
Technical Information
Specifications
General
Scope of delivery
1 minibar, 1 manual
SKUCertificates
GMark;CB;GS
Product Description
Drawer Minibar
Dimensions
Dimensions product depth, [mm]
391
Dimensions product height, [mm]
365
Dimensions product width, [mm]
384
Dimensions product width, ["] - Display
15.12
Net weight, [kg]
12.30
Net weight, [lbs]
27.12
Total volume (IEC 62552-3), [l]
20.000000
Electrical
Input voltage (AC), [V]
220-240
Rated input current (AC), [A]
0.35
Rated input power (AC), [W]
52
Input frequency, [Hz]
50/60
Performance
Hermetically Sealed
Yes
Refrigerant, type
R600a
Noise (EN60704-1 & 60704-2-14), [dB(A)]
0.000000
Annual energy consumption at AC, EU (EN62552-3:2020), [kWh/a]
109
Energy efficiency class (Regulation (EU) 2019/2016)
G
Climate class (EN 62552)
N
Insulation Type
PU (Polyurethane)
Properties
Thermostat control
Electronic Thermostat
Hinge type
Drawer
Interior light
Yes, LED
Logistics
Dimensions parcel depth, [mm]
480
Dimensions parcel height, [mm]
400
Dimensions parcel width, [mm]
470
Parcel weight, [kg]
13
Parcel weight, [lbs]
28.66
Get the Highlights
Light the way
This helpful LED light will help you find what you are looking for.

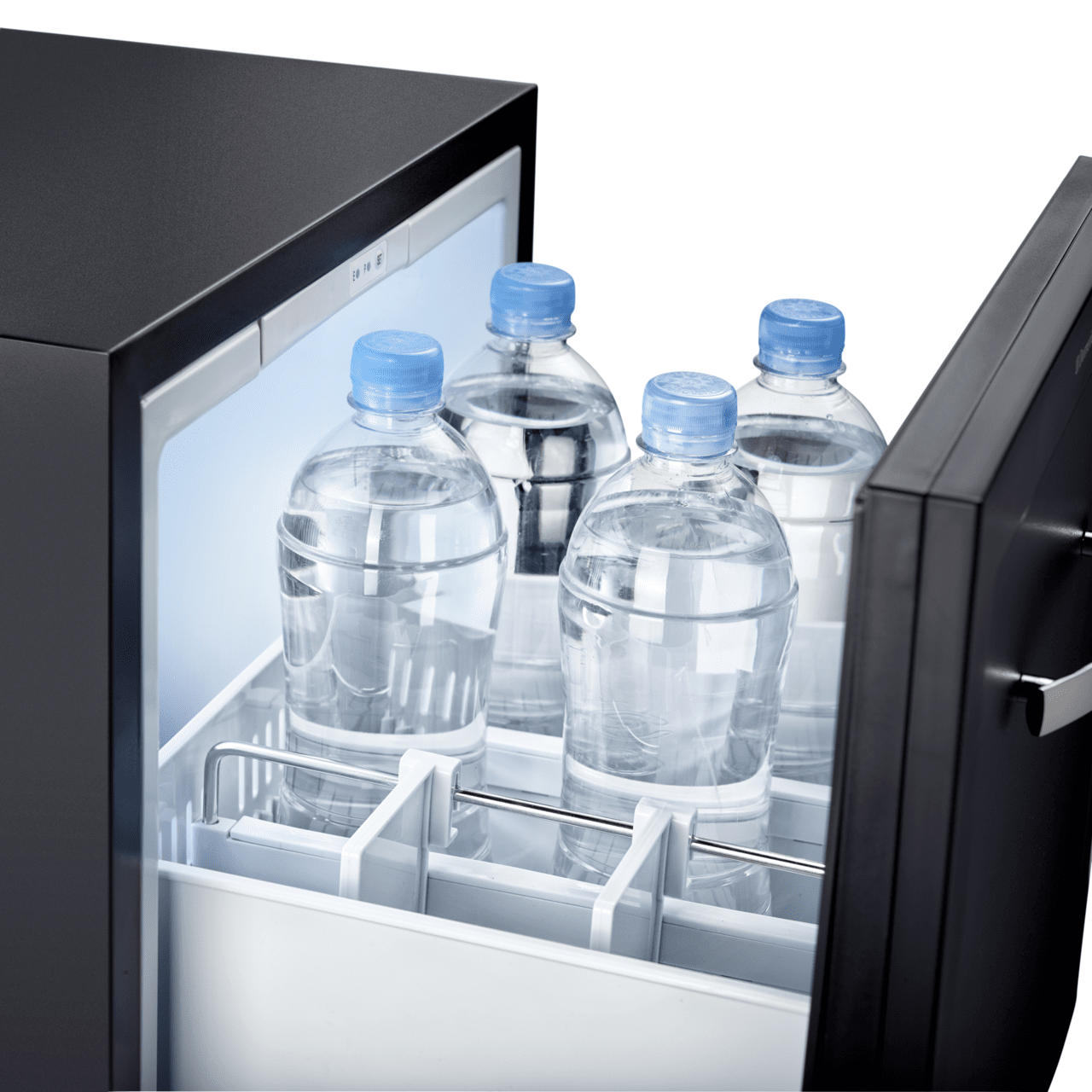

Organised storage
Compartment dividers ensure organised storage and tempting presentation.

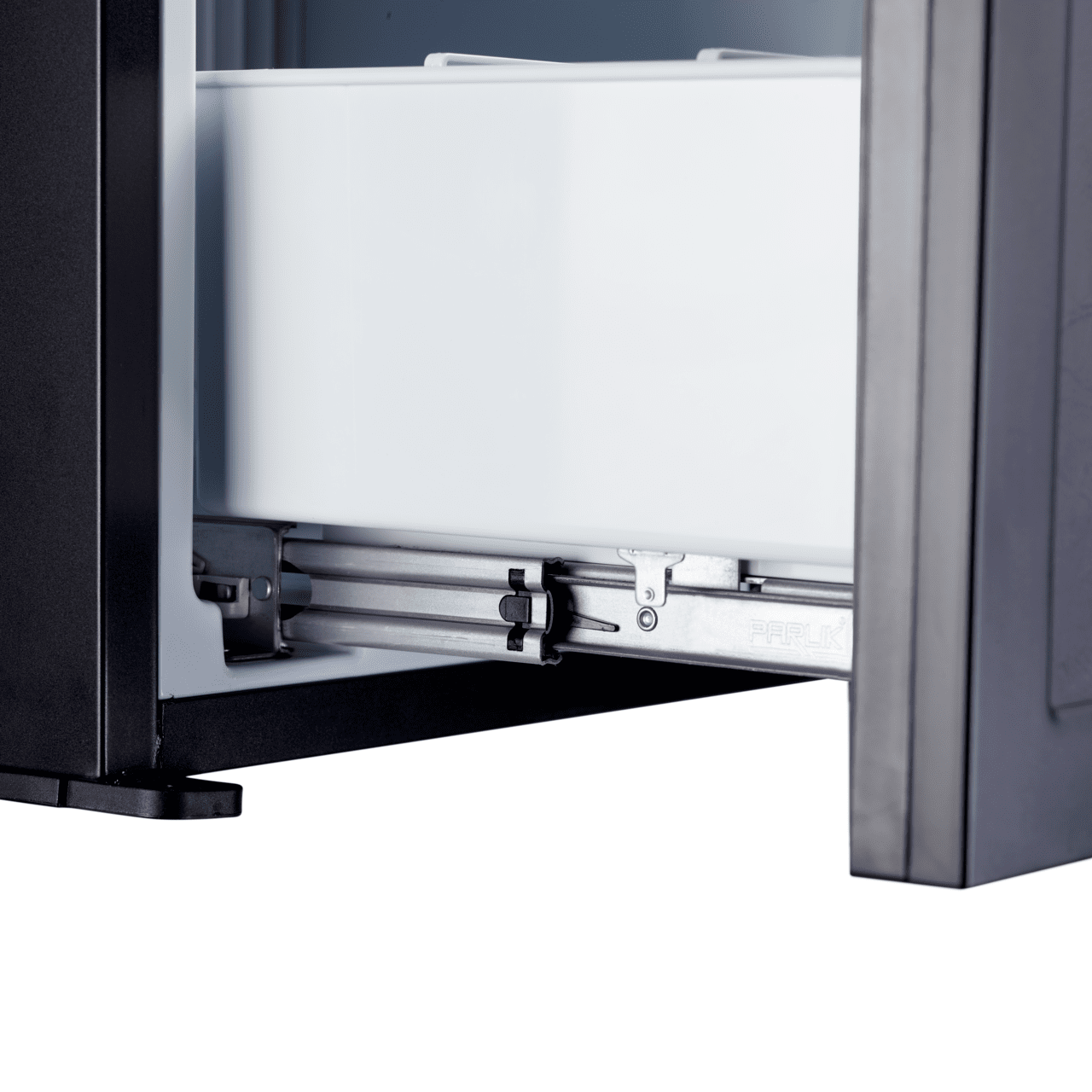

Pull-out cool
This 20 l class pull-out minibar is highly convenient.
