Dometic CFX5 55IM

Technical Information

Color

Black

Brand

Dometic

Scope of delivery

1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, 1 icemaker, removable wire baskets, bottle opener

EAN-13

6975399593997

Publication Model Name

Dometic CFX5 55IM

Product Description

Powered cooler, 55 l

Dimensions product depth, [mm]

455

Dimensions product height, [mm]

480

Dimensions product width, [mm]

720

Net weight, [kg]

21.90

Net weight, [lbs]

48.29

Dimensions parcel depth, [mm]

495

Dimensions parcel height, [mm]

520

Dimensions parcel width, [mm]

760

Parcel weight, [kg]

24.80

Parcel weight, [lbs]

54.68

Rated input current (AC), [A]

1.08A at 100V; 0.46A at 240V

Rated input current (DC), [A]

4.2A at 24V, 9.6A at 12V

Rated input power (AC), [W]

47

USB Port

Yes

Connectivity Type

Bluetooth, Interact, WiFi

Basket

Yes

Threaded inserts in base for mounting

M6

Drain plug

Yes

Anti-condensation coil

Yes

Single or Dual Zone

Single

Thermostat control

Electronic Thermostat

Hinge type

Right hinged

Interior light

Yes, LED

SKUCertificates

RCM

Total volume (IEC 62552-3), [l]

55.000000

Amount of cans (12oz/375ml)

83

Hermetically Sealed

Yes

Refrigerant, type

R600a

Input voltage (AC), [V]

100-240

Input voltage (DC), [V]

12/24

Input frequency, [Hz]

50/60

Battery type

Not Applicable (NA)

Priority circuit (Integrated)

Yes

Noise (EN60704-1 & 60704-2-14), [dB(A)]

42.000000

Annual energy consumption at AC, EU (EN62552-3:2020), [kWh/a]

39

Climate class (EN 62552)

N/T

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

43.000000

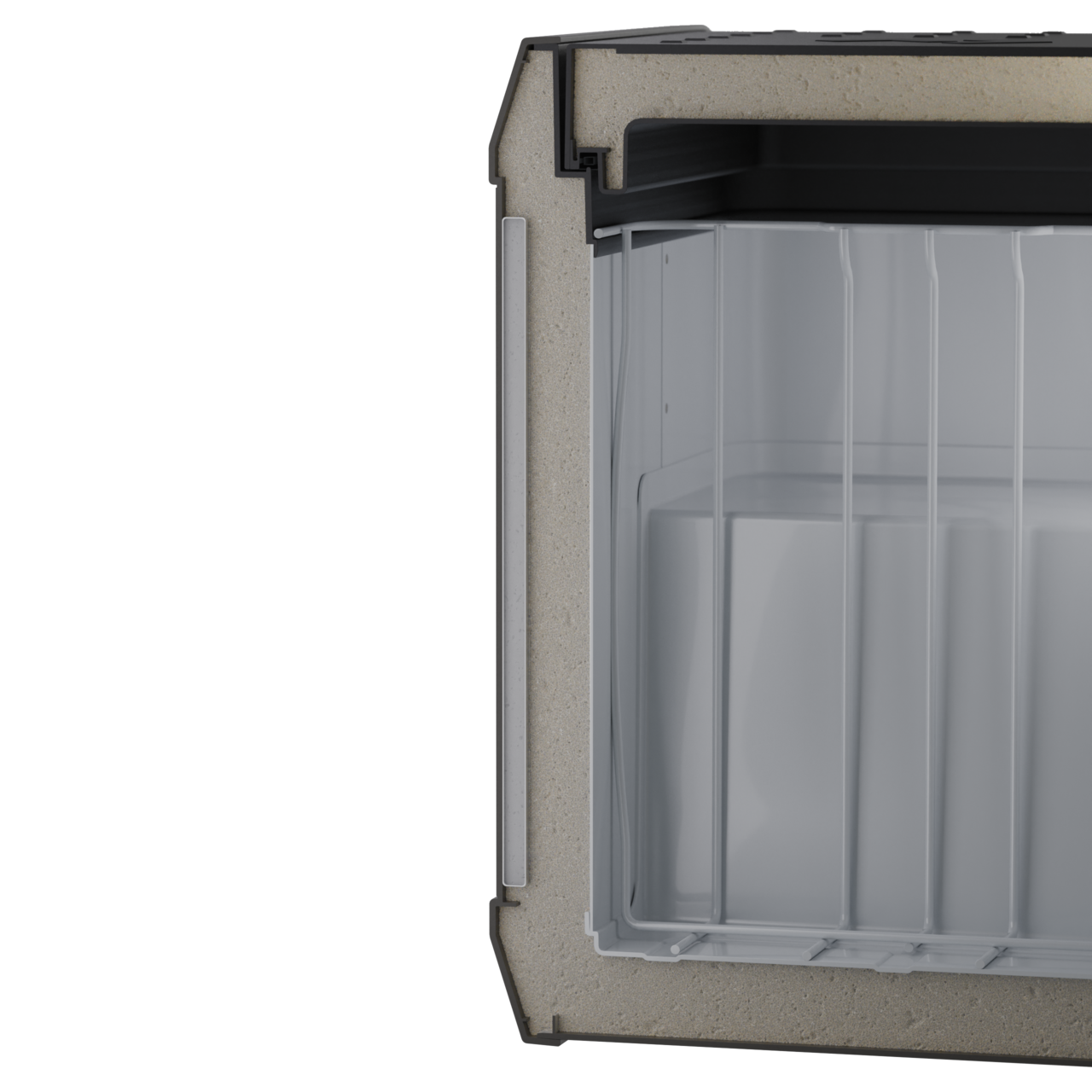

Insulation Type

PU (Polyurethane)

Dimensions product width, ["] - Display

28.35

Item Description

CFX555IM for Australia, A2, AC/DC

Pack Size

Yes
