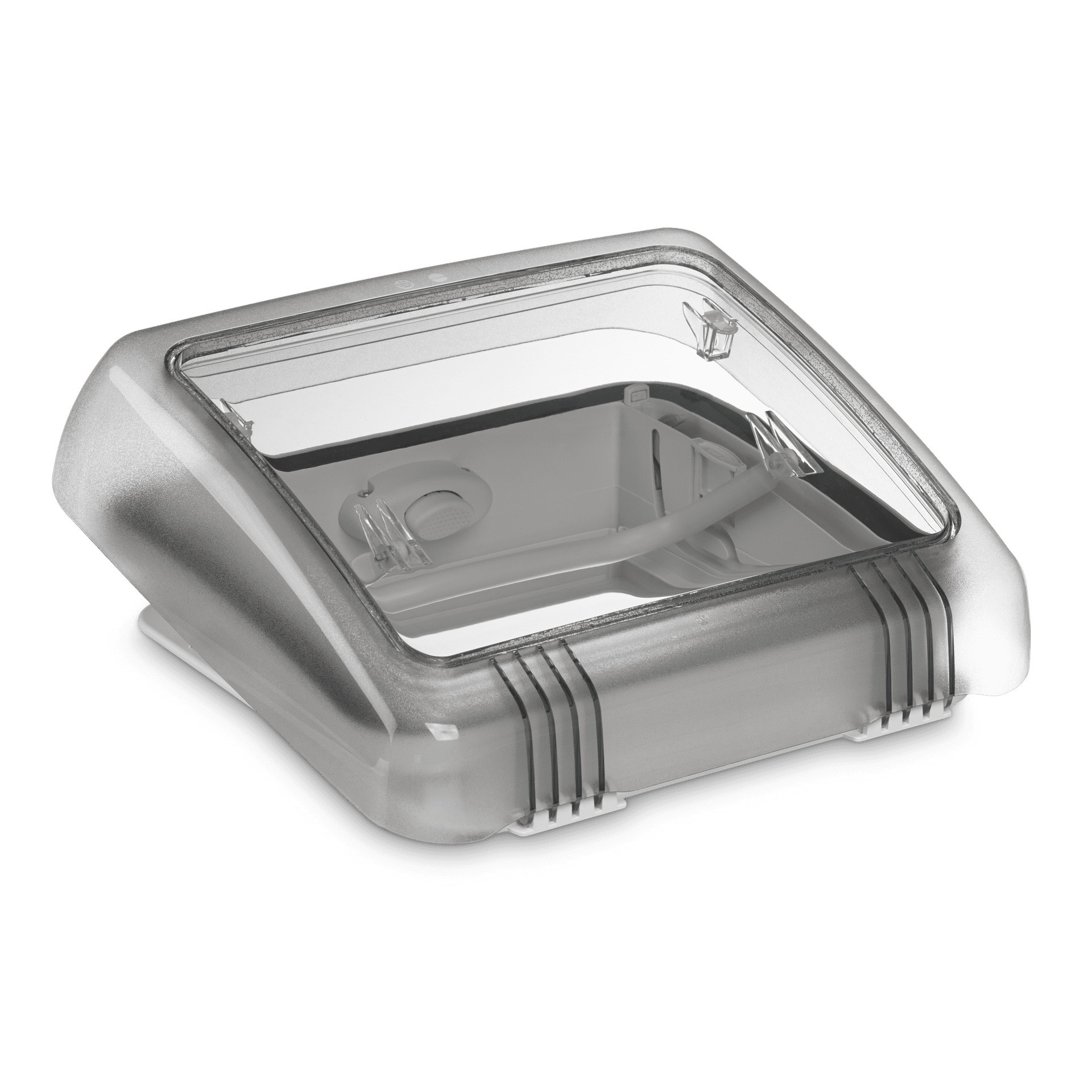

This ultra-compact roof light was specially designed for the bathroom area. It fits into a roof opening of 280 x 280 mm and can be opened and closed with a hand-lever system. For motorhomes and caravans.
[]
Safely locked in place
[]
Sold separately
Technical Information
Technical Information
Color
Black
Brand
Dometic
Model
Micro Heki
Scope of delivery
Micro Heki
EAN-13
4015704259124
Publication Model Name
Dometic Micro Heki
Product Description
Roof window with flyscreen
Dimensions product depth, [mm]
370
Dimensions product height, [mm]
370
Dimensions product width, [mm]
408
Net weight, [kg]
2.50
Net weight, [lbs]
5.51
Dimensions parcel depth, [mm]
410
Dimensions parcel height, [mm]
190
Dimensions parcel width, [mm]
240
Parcel weight, [kg]
2.17
Parcel weight, [lbs]
4.78
Opening angle max, [°]
50.000000
Positions fixed
2
SKUCertificates
ECE R43
Dimensions ordered height, [mm]
280
Dimensions ordered width, [mm]
280
Possible material thickness 1 min, [mm]
23
Possible material thickness 1 max, [mm]
45
Cut out height, [mm]
280.000000
Cut out width, [mm]
280.000000
Dimensions product width, ["] - Display
16.06
Item Description
Micro-Heki Art.1485
Technical Information
Get the Highlights

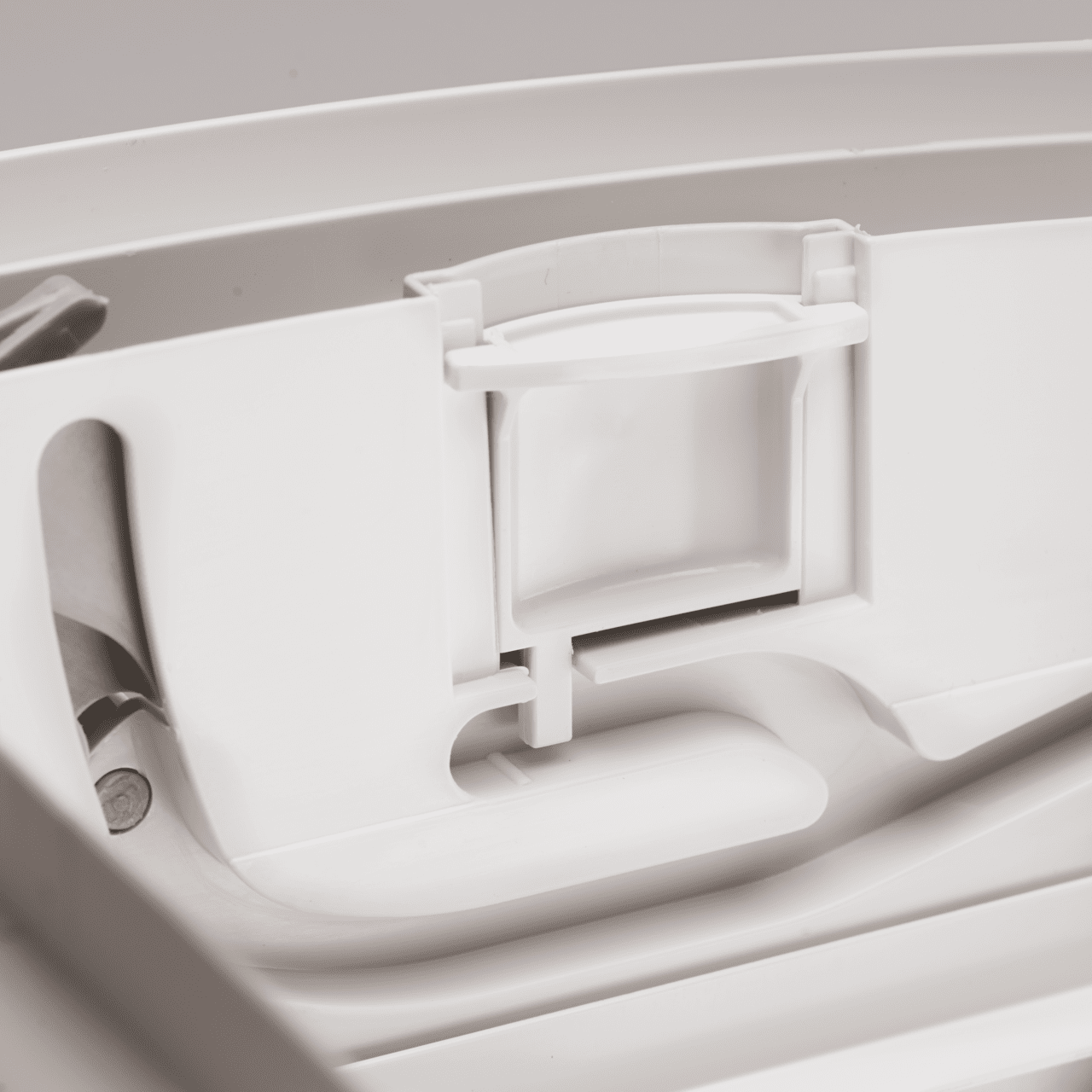

Safely locked in place
The glass dome is safely locked, so it won’t slam down when the wind blows

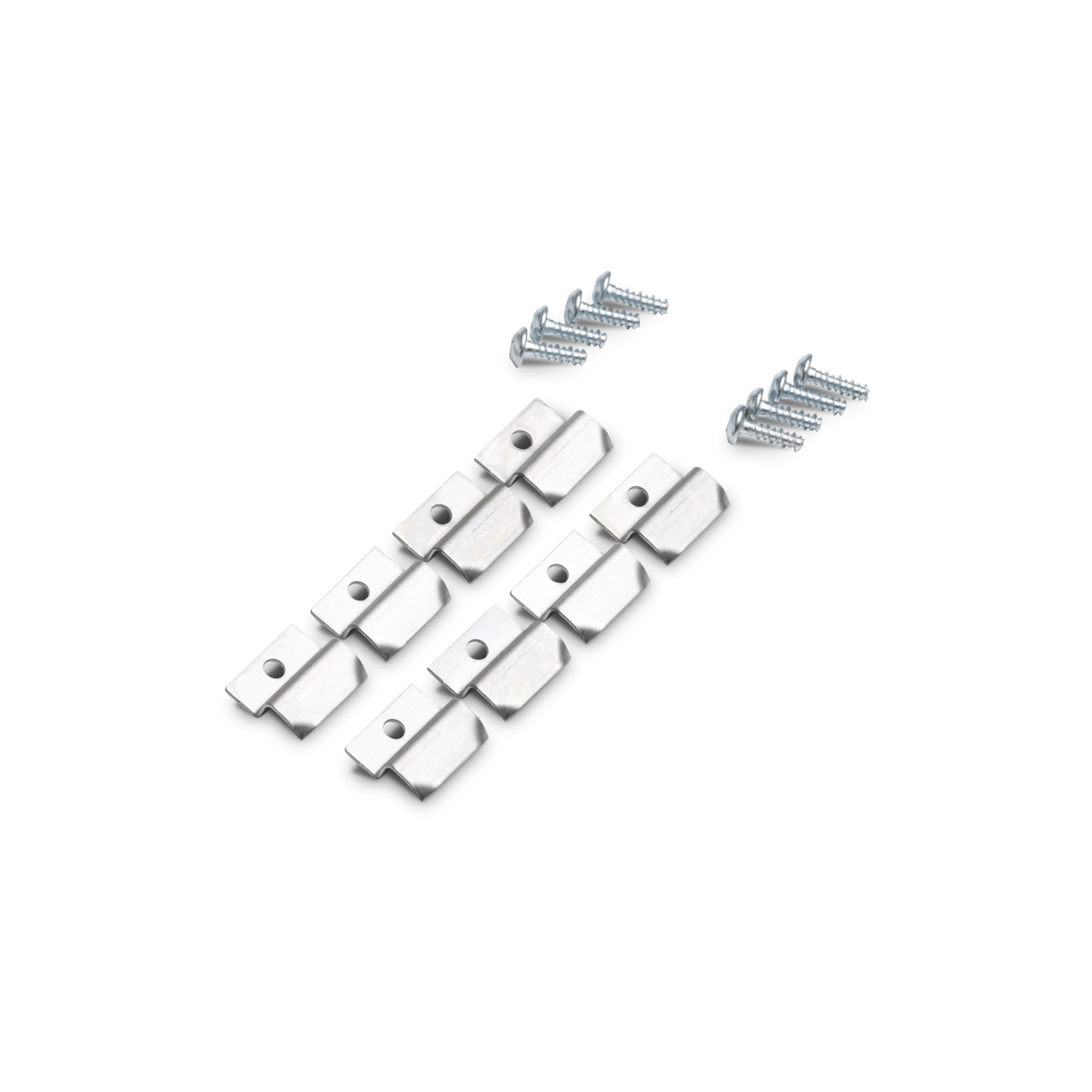

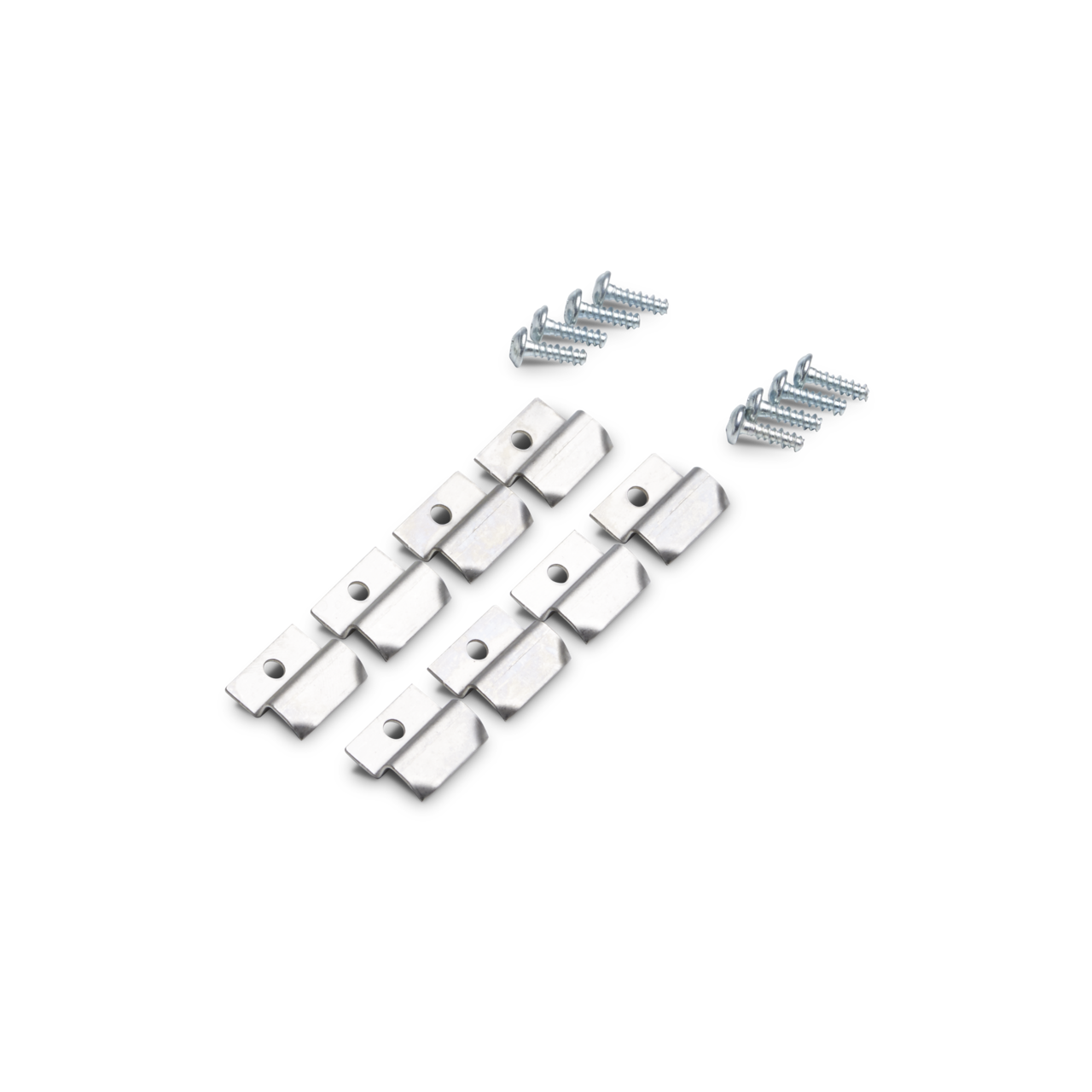

Sold separately
Required assembly kit for specific roof thickness is sold separately
