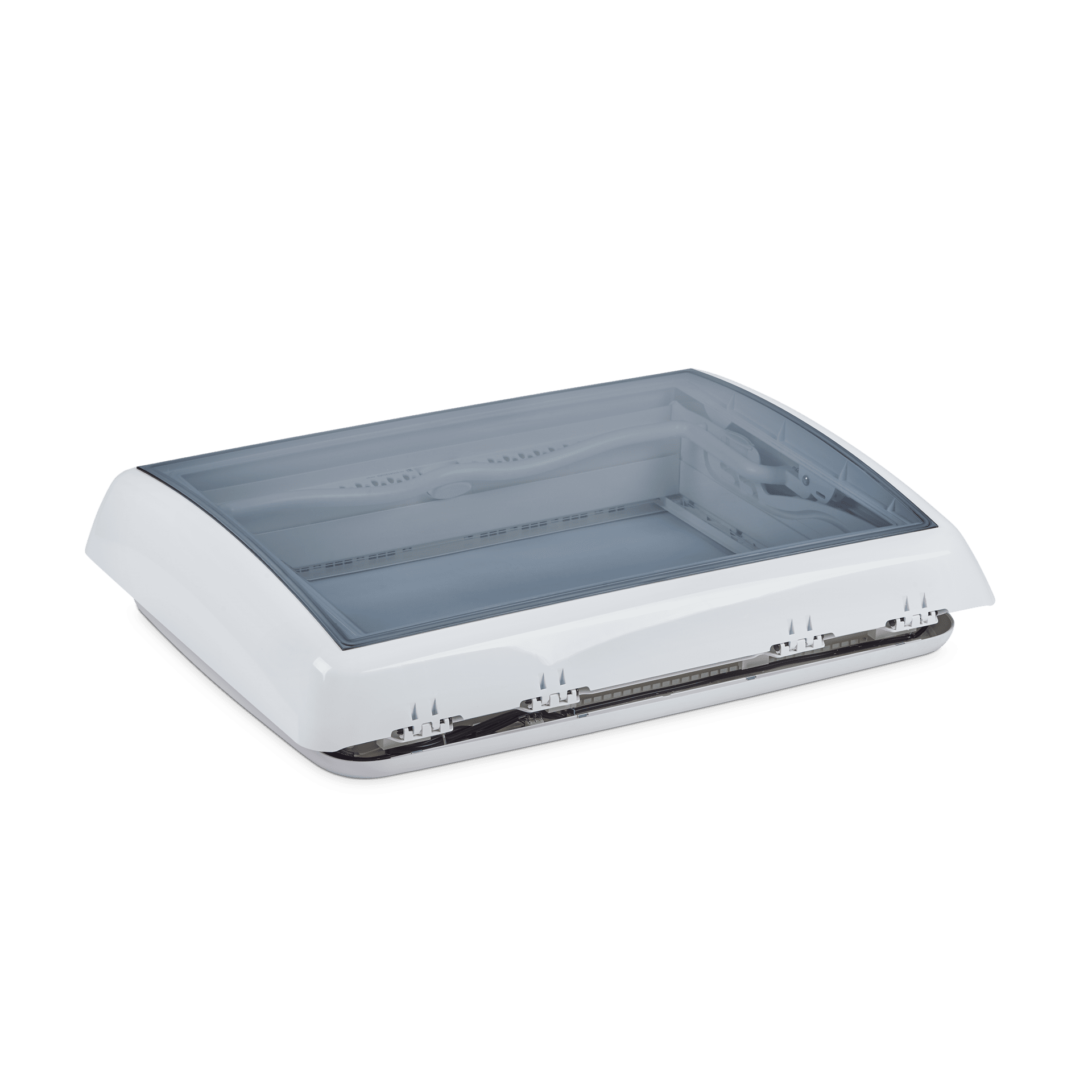

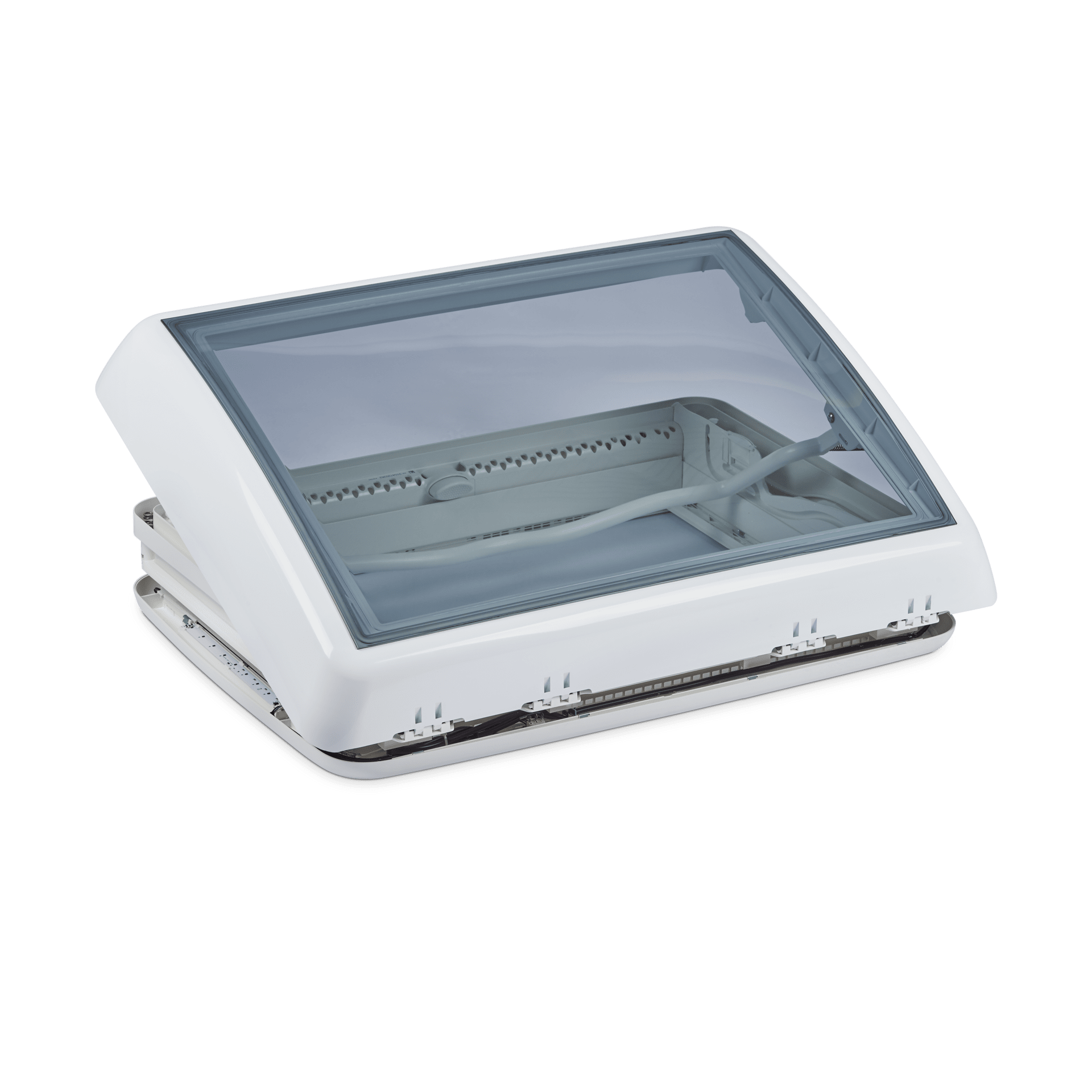

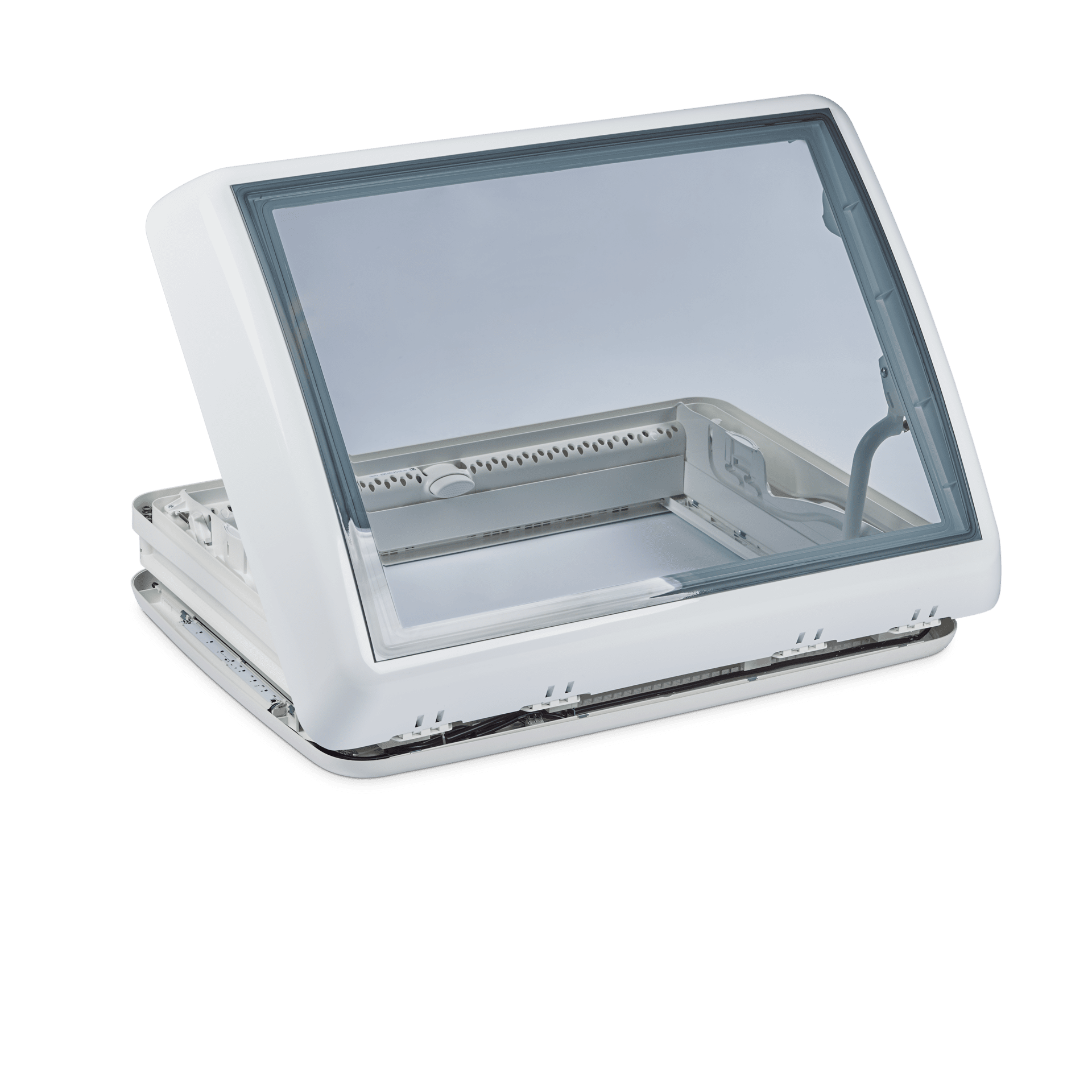

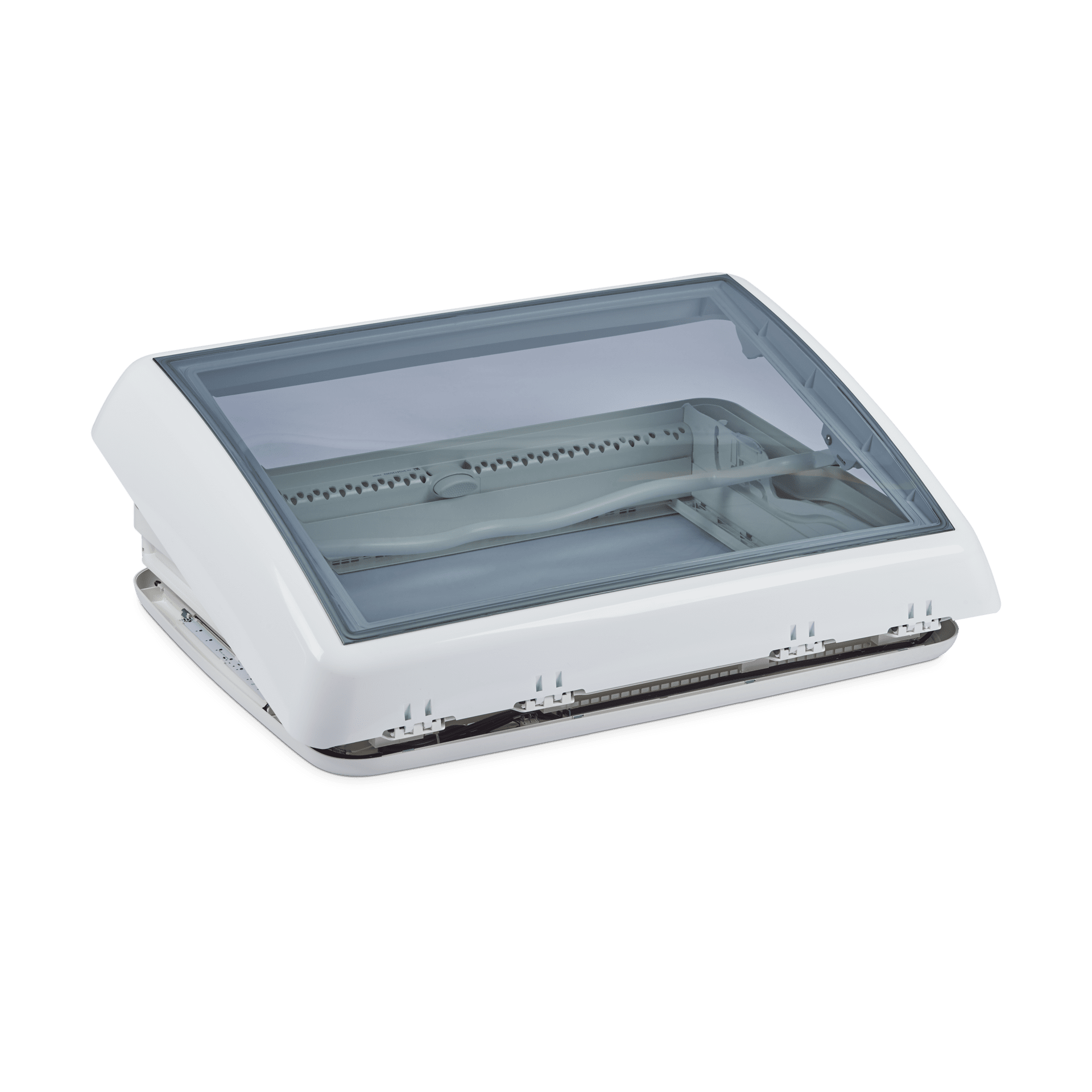

Dometic Midi Heki LED

Specifications

General

Scope of delivery

Midi Heki GD Art.1492 lever model

SKUCertificates

ECE R43

Product Description

Roof Light

Dimensions

Dimensions product depth, [mm]

617

Dimensions product height, [mm]

617

Dimensions product width, [mm]

846

Dimensions product width, ["] - Display

33.31

Dimensions ordered height, [mm]

500

Dimensions ordered width, [mm]

700

Net weight, [kg]

8

Net weight, [lbs]

17.64

Standard mount. material thickness 1 min, [mm]

25

Standard mount. material thickness 1 max, [mm]

29

Possible material thickness 1 min, [mm]

25

Possible material thickness 1 max, [mm]

60

Cut out height, [mm]

500.000000

Cut out width, [mm]

700.000000

Properties

Opening angle max, [°]

45.000000

Positions fixed

3

Logistics

Parcel weight, [kg]

8.20

Parcel weight, [lbs]

18.08
