Front Runner Series Isuzu D-Max (2020-Current) Slimsport Roof Rack Kit

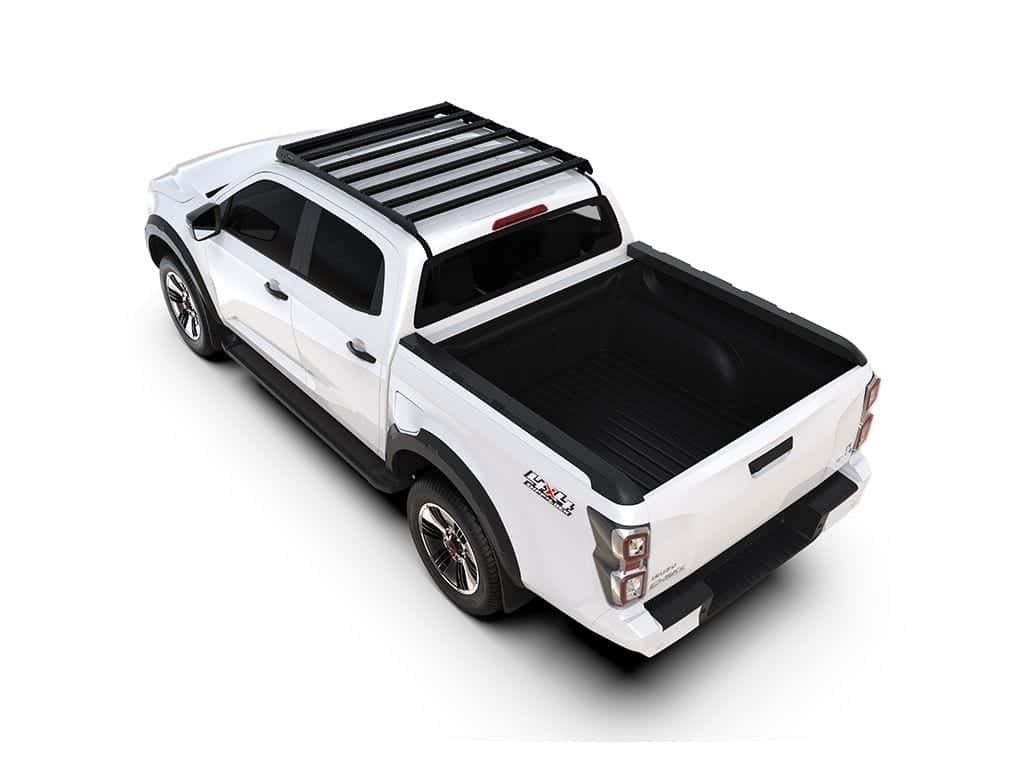

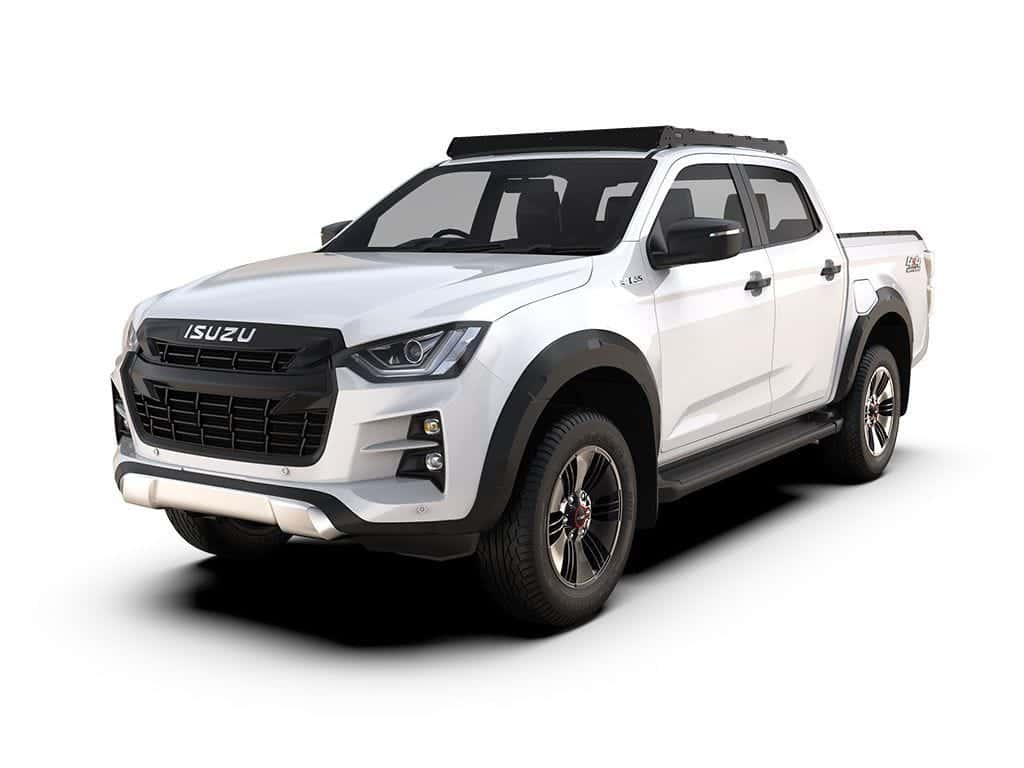

Turn your reliable Isuzu into a gear carrier of note with this low-profile Slimsport Rack. The rack is extremely quiet, thanks to the included wind fairing. You can fit our wide range of accessories to the top of the rack.

Description

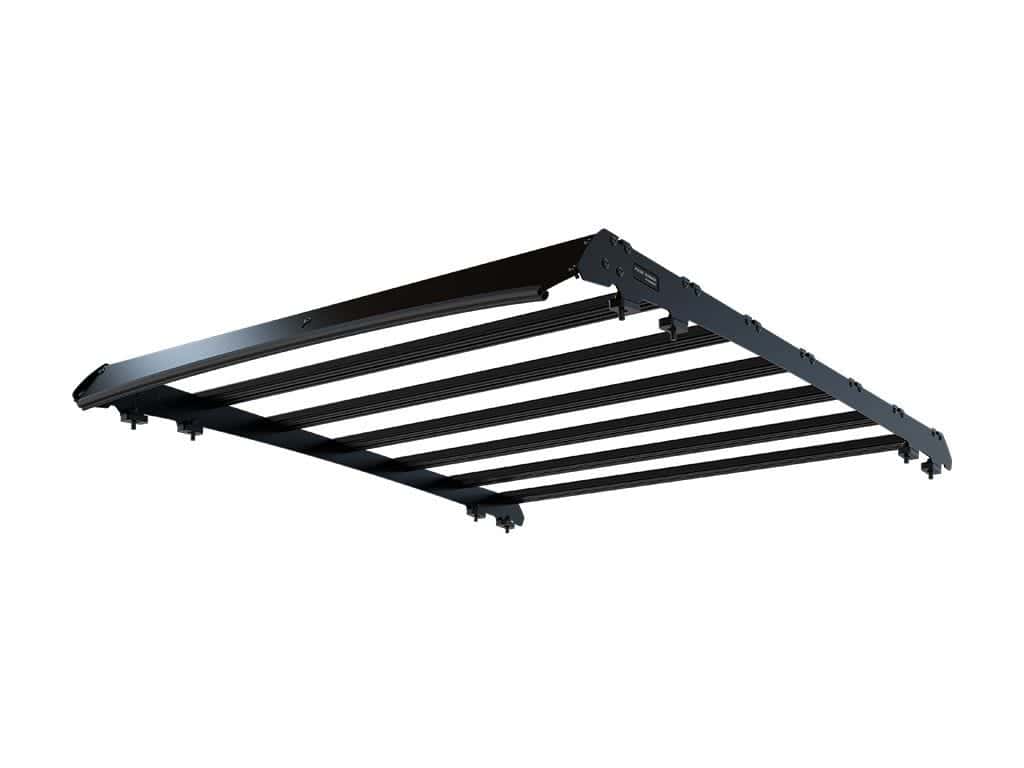

  • This low profile flat deck Slimsport rack has a load-carrying area of 1415mm (55.7") x 1141mm (44.9").
  • The top of the Slimsport rack is only 50mm (2") above the crown of the roof.
  • The sleek side rails have integrated mounting feet. Mounting feet also have additional brace brackets for added strength.
  • The high-strength aluminum slats have top and bottom T-slots suitable for all Front Runner top mount accessories.
  • Easily add on the Slimsport Side Mount Accessory Bracket / Small (sold separately) for all Front Runner side mount accessories.

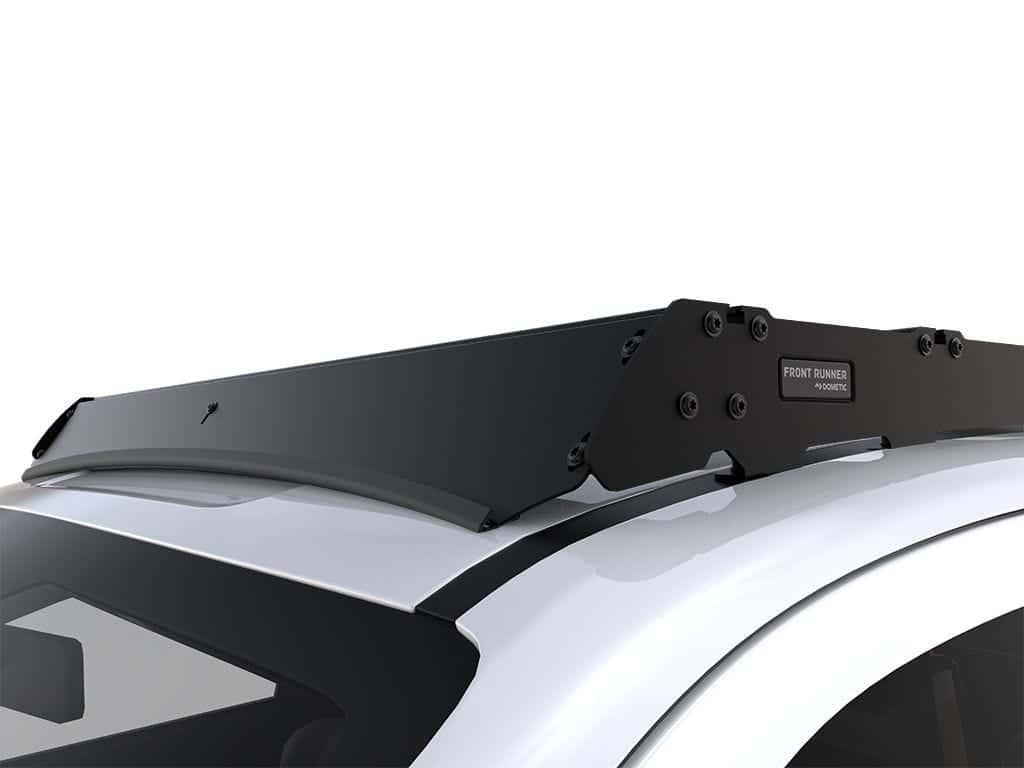

  • The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.
  • Need a lightbar? The optional lightbar fairing Isuzu D-Max / Mazda BT50 (2020-Current) Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately).
  • Fitment guide and all mounting hardware included.
  • Note: Drilling may be required on selected Models.
  • All Dometic Front Runner Series racks are backed by a 5‑year warranty*

Specifications

SKU: KSID003T

KSID003T - Isuzu D-Max (2020-Current) Slimsport Roof Rack Kit

Consisting of:
1x KSID001 - Isuzu Dmax (2020-Current) Slimsport Tray
1x RRAC310 - Isuzu Dmax (2020-Current) Slimsport Rack Wind Fair

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Assembled Rack Kit Dimensions:
1415mm (55.7") L x 1141mm (45") W x 121mm (4.8") H

Approximate Installed Weight: 19.68kg (43.39lbs)

The top of the Slimsport rack is only 50mm (2") above the crown of the roof.

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 50mm (2") to the highest point of your roof.

Shipping Dimensions:
Width: 325mm (13")
Length: 1700mm (67")
Height: 220mm (9")

Shipping Weight:
Weight: 27kg (59lbs)

KSID002 - Fitting Instruction
Fitting Instruction
RRAC310 - Fitting Instruction
Fitting Instruction
