Dometic PerfectView CAM 29BKS
Dometic PerfectView CAM 29BKS
Upgrade the experience

Find your accessories

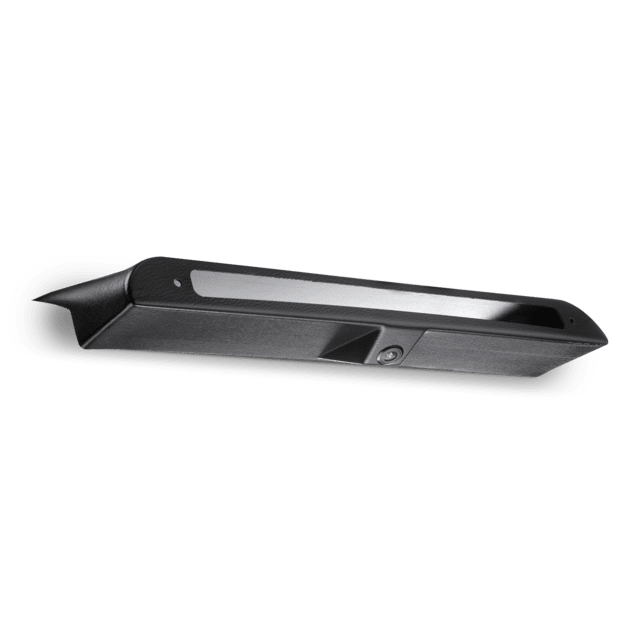

Custom solution for VW Crafter and Mercedes-Benz Sprinter: this model version of the small cylinder camera CAM 29 is integrated in a super-slim brakelight console that 's tailor-made for these panel vans to make installation possible. It simply replaces the original brakelight on the top rear, using the existing fixing points.

Custom solution for panel vans – ideal for tricky installation conditions

Wide-angle lens with large picture angle (150° diagonal)

Waterproof (IP68 rated)

Color cylinder camera (NTSC), 1/4" CMOS image sensor

Factory preset mirror function to give you a familiar rear mirror view

High sensitivity to light for sharp, high-contrast images

Electronic brightness adjustment for consistently good image quality

SKU number

9600000107

Model

CAM29

Model on label

CAM29N

Scope of delivery

20 m system cable + adapter + fixing material + manual

Product Description

Color cylinder camera in a brake light console, black, 150° diagonal

Dimensions product depth, [mm]

50

Dimensions product height, [mm]

100

Dimensions product width, [mm]

370

Net weight, [kg]

0.4

Input voltage (DC), [V]

12

IP class

IP69K

Light sensitivity, [lux]

< 1

Brightness adjustment

Electronic

Diagonal picture angle, [°]

150

Horizontal picture angle, [°]

102

Resolution, [px]

307000

Vertical picture angle, [°]

73

Video standard

NTSC

Vibration resistance, [g]

10

Operating temperature min, [°C]

-20

Operating temperature max, [°C]

70

Mirrored Picture Function

Factory Pre-Mirrored

Color

Black

EAN-13

4015704251111

Dimensions parcel depth, [mm]

220

Dimensions parcel height, [mm]

165

Dimensions parcel width, [mm]

400

Parcel weight, [kg]

1.4

DoC 170707 Camera

Declarations of Conformity

Download

Dometic CAM29N - Installation and Operating Manual EMEA16

Installation and Operating Manual

Download

Discontinued

Dometic PerfectView CAM 29BKS

Color cylinder camera in a brake light console, black, 150° diagonal

Custom solution for VW Crafter and Mercedes-Benz Sprinter: this model version of the small cylinder...
