24

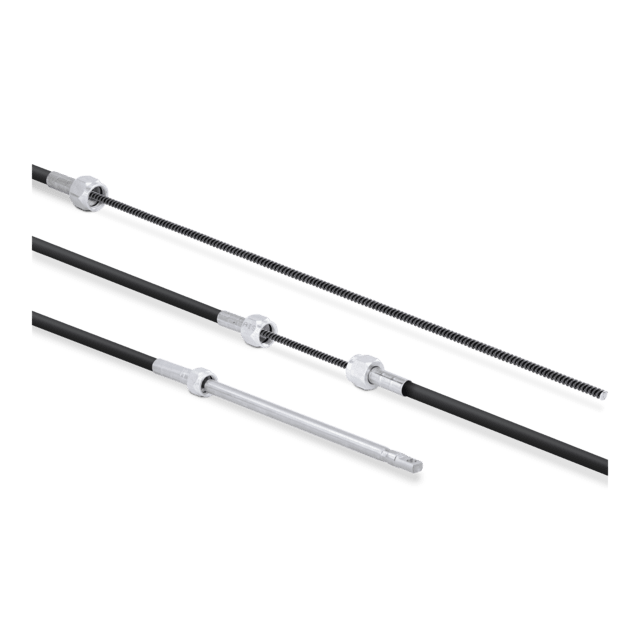

The Dometic SeaStar Big-T SSC81 type cable is a dual station rotary cable. These cables have a threaded nut connection for easy installation and a trapped nut that stays in place during cable routing. SSC81 type cables feature stainless steel output ends.
For Inboards up to 34' with dual stations
Threaded nut connections at both ends
Trapped nut engine connection stays in place during cable routing
Outer jacket is constructed with HDPE, a high density polyethylene material that is abrasion resistant and provides a high resistance to water penetration
Output ends are constructed of stainless steel material for corrosion resistance
Exceeds ABYC safety standards and ISO/IMCI/NMMA certification requirements
For use with a Dometic Big-T helm, SH5000P
9130005591
SSC81
TBD
SSC8124
Big-T Dual Station Steering Cable, 24', SSC8124
27
20
3
24
12.45
0
27
20
3
12.45
WARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov
For a Dometic Big-T dual station steering system, the cable required is SSC81AxxBxx, where xx = the lengths of the two cable sections in feet. The letter “A” in the part number represents the cable routing path distance between steering stations. The letter “B” represents the cable routing path distance from the lower station to the engine/rudder area. The different cable lengths are available in one-foot increments only.
