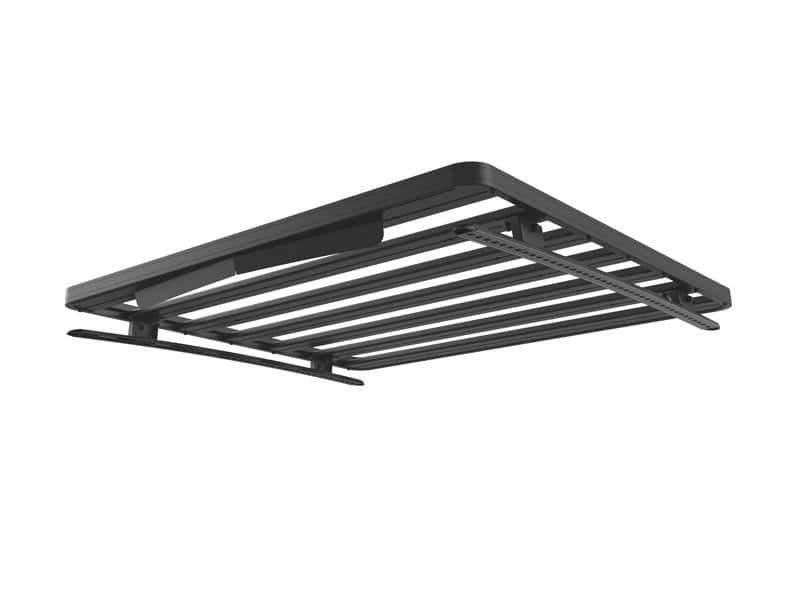

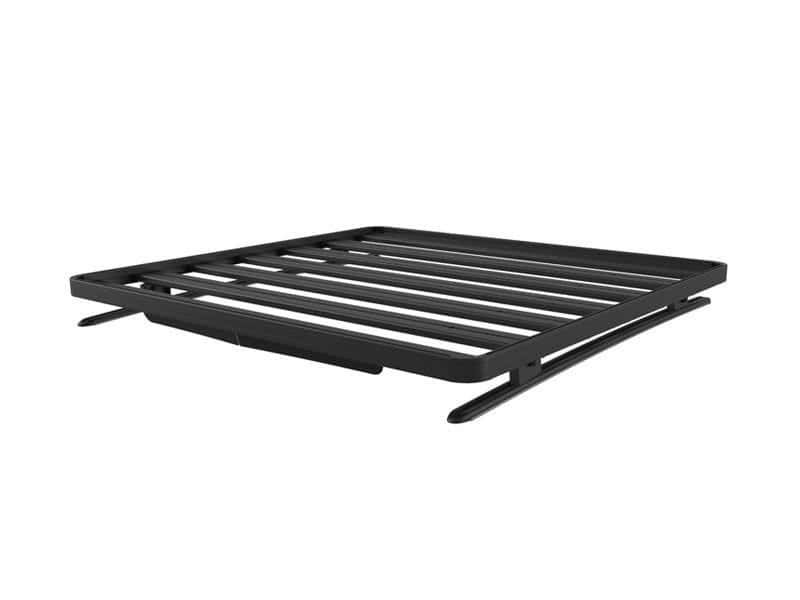

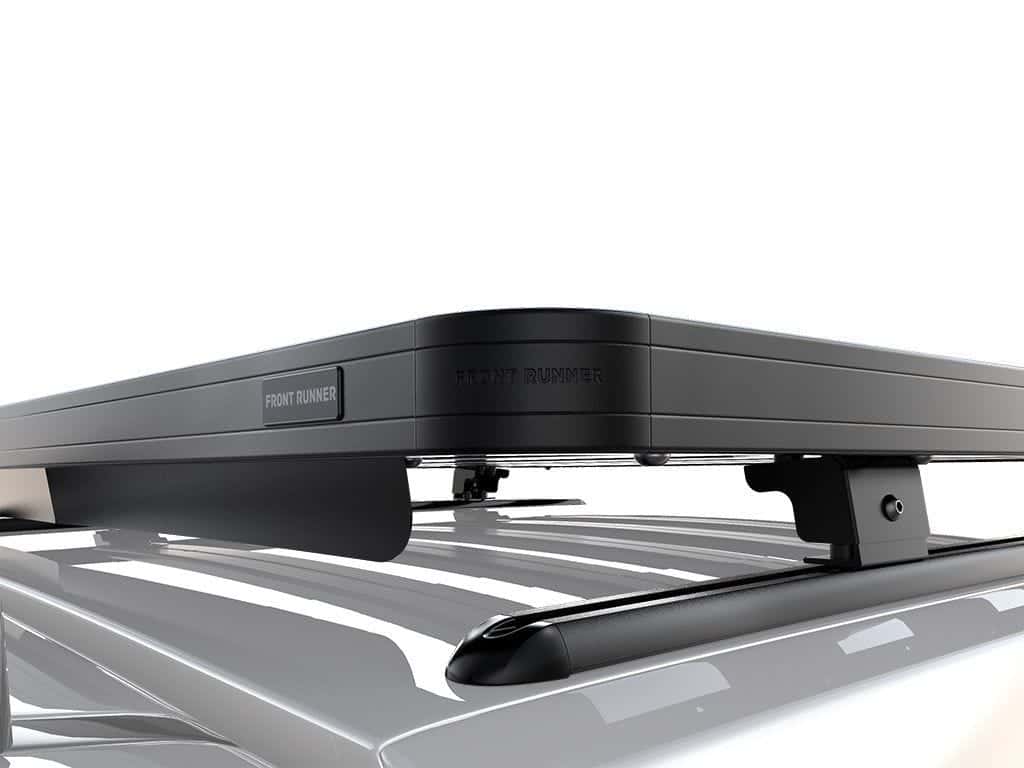

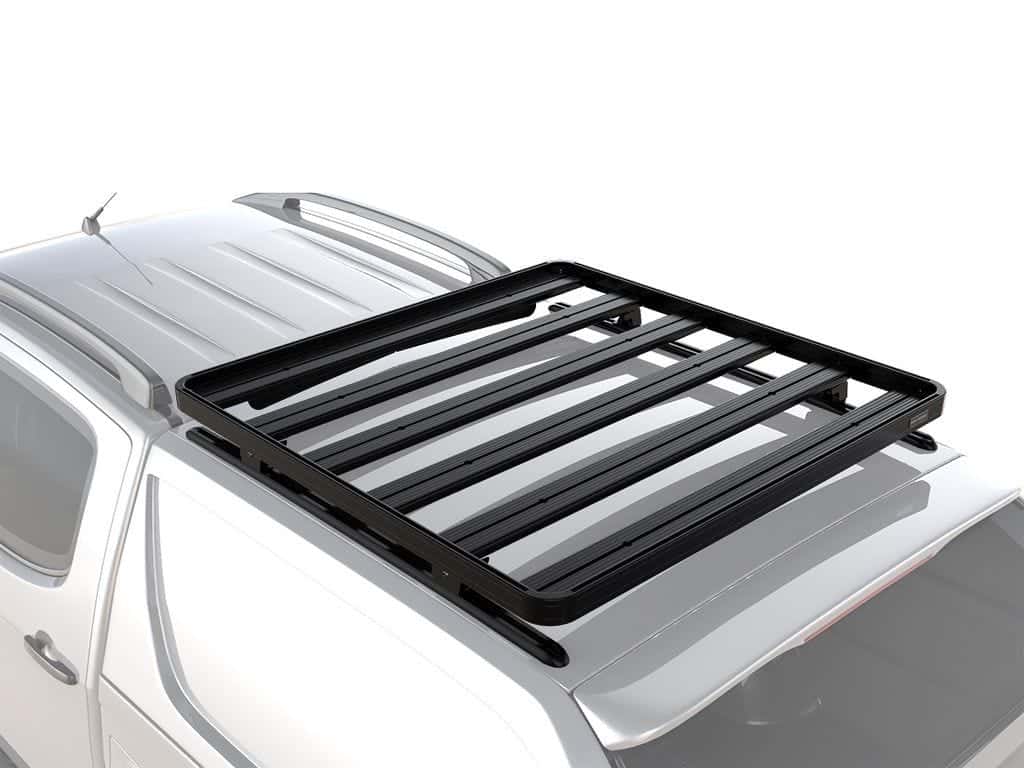

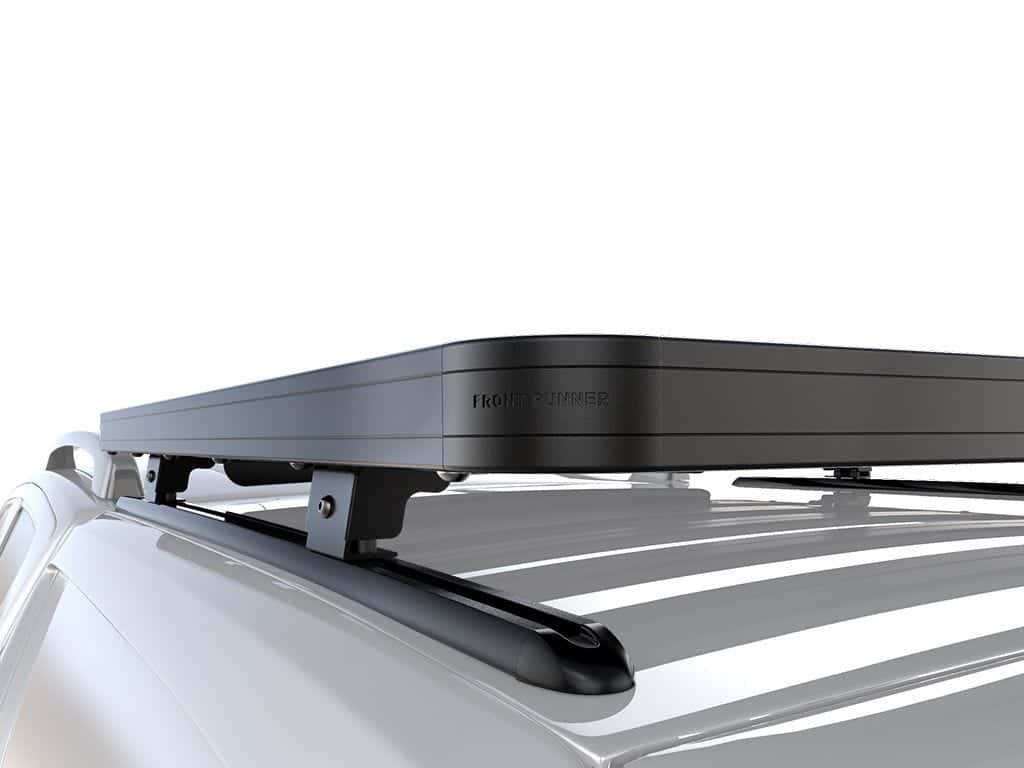

ARE Canopy Slimline II Rack Kit / Mid Size Pickup 5' Bed

KRCA084T - ARE Canopy Slimline II Rack Kit / Mid Size Pickup 5' Bed - by Front Runner

Consisting of:

3 x FASS025 - Foot Set / 70mm-80mm - by Front Runner
1 x RRSTD07 - Slimline II Tray - 1255mm(W) X 1358mm(L) - by Front Runner
1 x TRAC002 - Canopy Tracks / 1400mm(L) - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 22kg (48.5lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 440mm (17.3")
Length 1720mm (67.7")
Height 260mm (10.2")

Shipping Weight:

Weight 27kg (59.5lbs)
