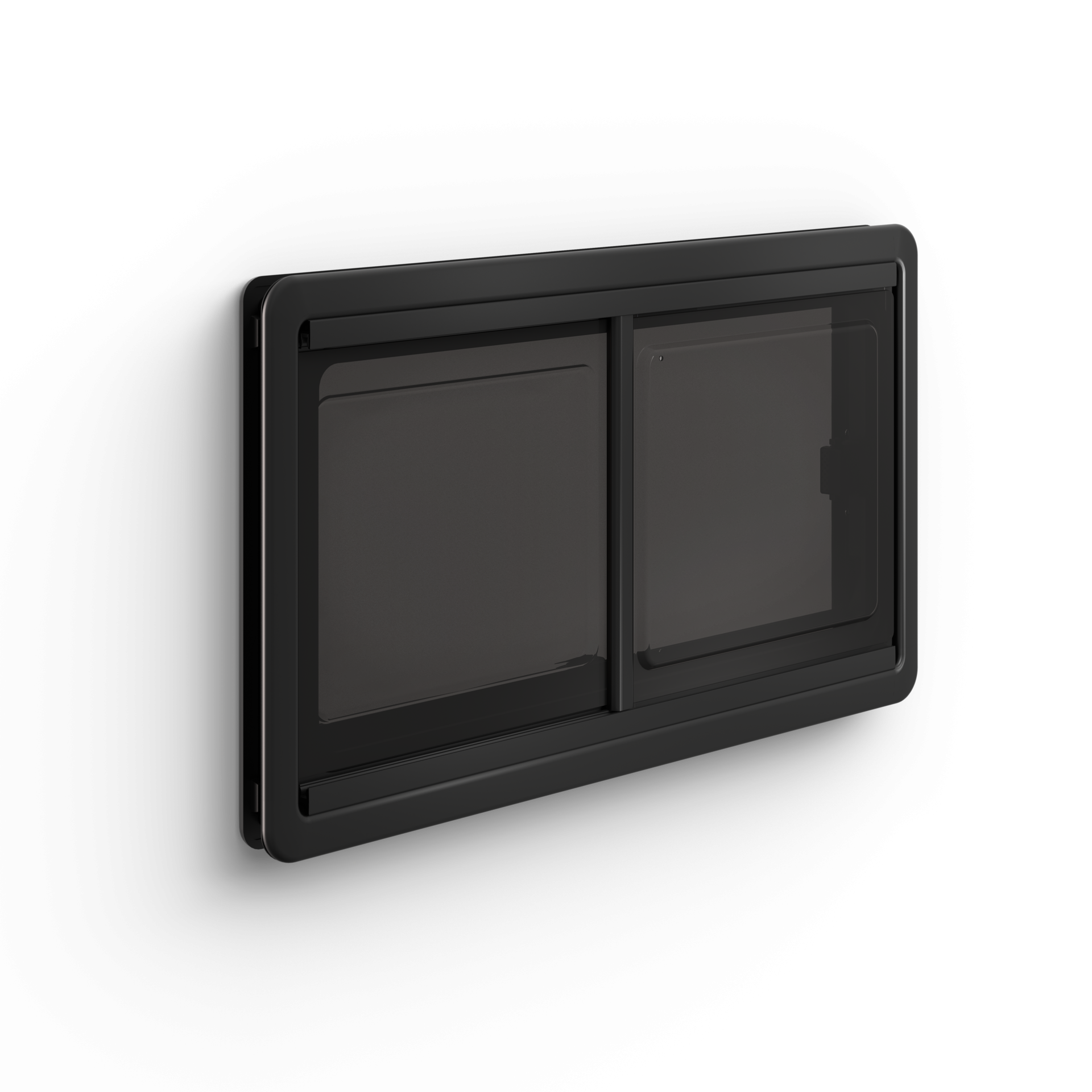

Dometic PUR-Win S10
Sliding window, 700 x 400, black
SKU: 9620023802
Technical Information
Specifications
- General
- Scope of delivery
- S10.4 Window with manual in box
- SKUCertificates
- ECE R43
- Product Description
- Sliding window, 700 x 400, black
- Dimensions
- Dimensions product height, [mm]
- 430
- Dimensions product width, [mm]
- 745
- Dimensions product width, ["] - Display
- 29.33
- Dimensions ordered height, [mm]
- 400
- Dimensions ordered width, [mm]
- 700
- Net weight, [kg]
- 6.10
- Net weight, [lbs]
- 13.45
- Standard mount. material thickness 1 min, [mm]
- 26
- Standard mount. material thickness 1 max, [mm]
- 26
- Possible material thickness 1 min, [mm]
- 27
- Possible material thickness 1 max, [mm]
- 41
- Cut out height, [mm]
- 398.000000
- Cut out width, [mm]
- 702.000000
- Properties
- Hinge type
- Sliding
- Positions variable
- Variable
- Logistics
- Dimensions parcel depth, [mm]
- 510
- Dimensions parcel height, [mm]
- 180
- Dimensions parcel width, [mm]
- 820
- Parcel weight, [kg]
- 7.48
- Parcel weight, [lbs]
- 16.48
