Description

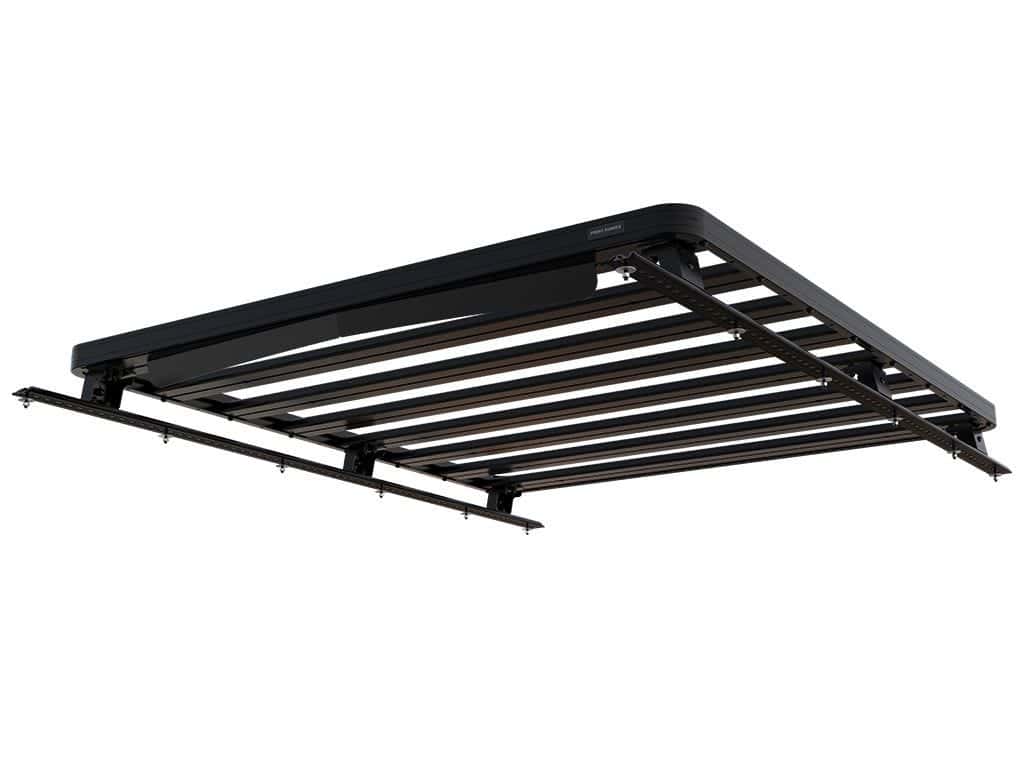

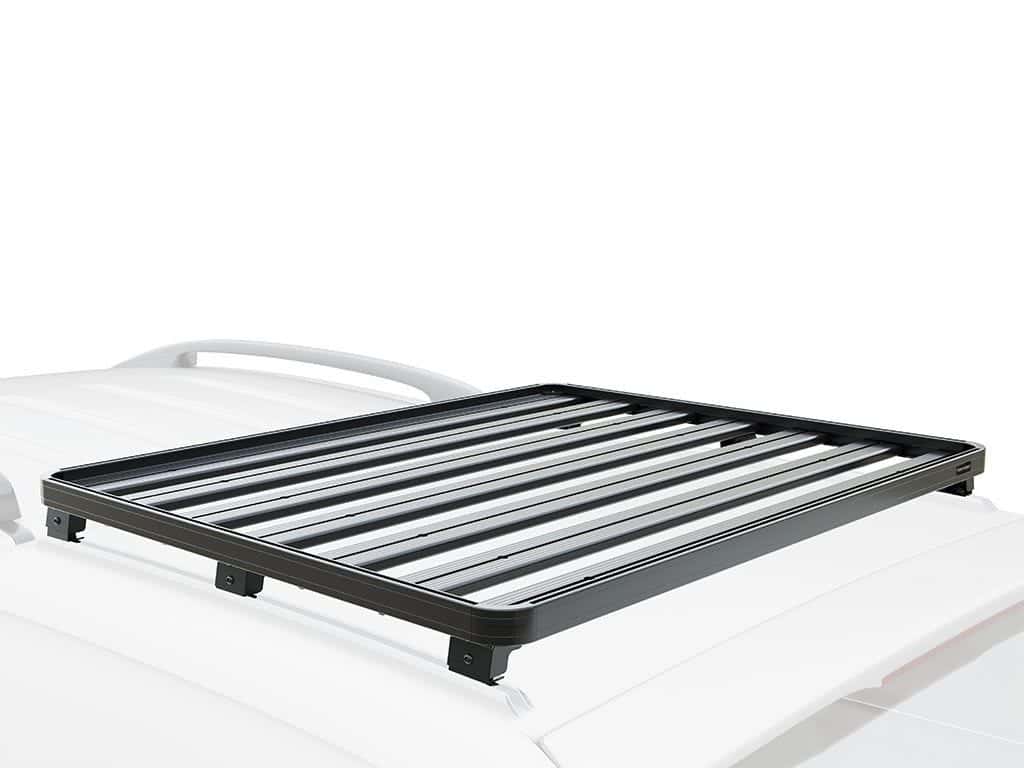

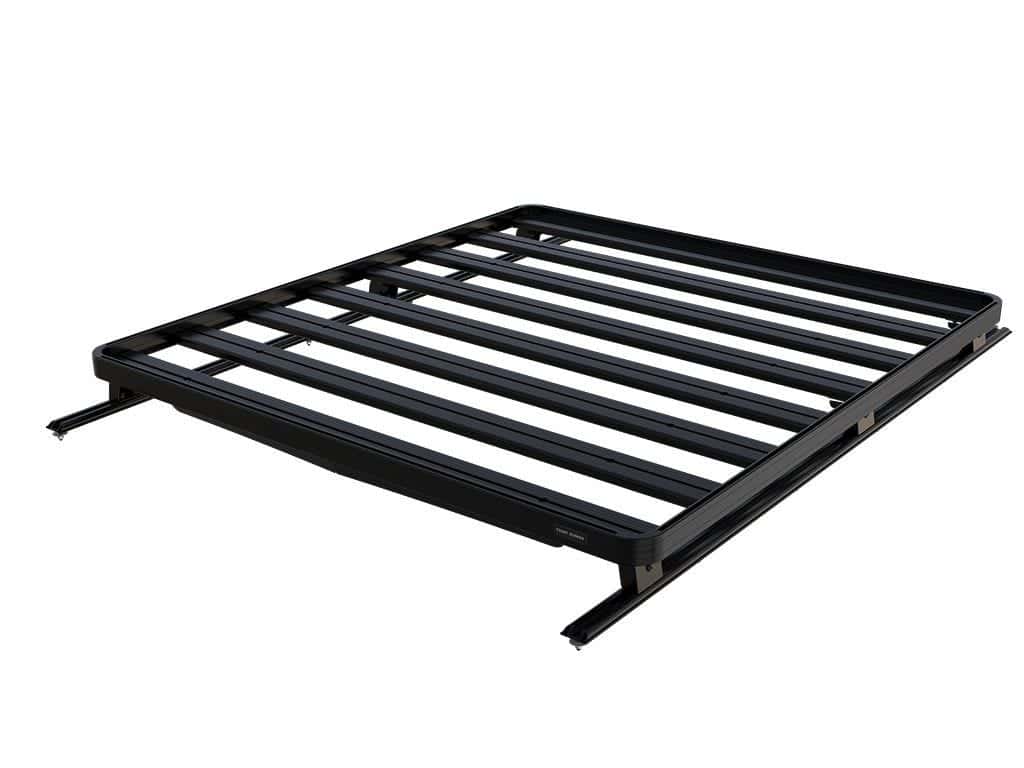

This kit creates a full-size rack on a Leer Canopy. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1560mm) and 6 mounting feet that fit into the supplied tracks. The track can be easily mounted to your Leer Canopy. See the track installation instructions in the INSTALL tab for further details.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Dometic Front Runner Series racks are backed by a 5‑year warranty*
Specifications
SKU: KRCA081T
KRCA081T - Leer Canopy Slimline II Rack Kit / Full Size Pickup 5.5' Bed - by Front Runner
Consisting of:
3 x FASS025 - Foot Set / 70mm-80mm - by Front Runner
1 x RRSTJ08 - Slimline II Tray - 1425mm(W) X 1560mm(L) - by Front Runner
1 x TRCA010 - Canopy Tracks / 1600mm(L) - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight 26kg (57.3lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 440mm (17.3")
Length 1730mm (68.1")
Height 260mm (10.2")
Shipping Weight:
Weight 28.6kg (63.1lbs)
