Mitsubishi Pajero SWB (1992-1999) Load Bar Kit / Track & Feet
CHF 425
Laden...
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
SKU: KRMP017
Technische Informationen
Technische Informationen
KRMP017 - Mitsubishi Pajero SWB Load Bar Kit? / Track & Feet - by Front Runner
Consisting of:

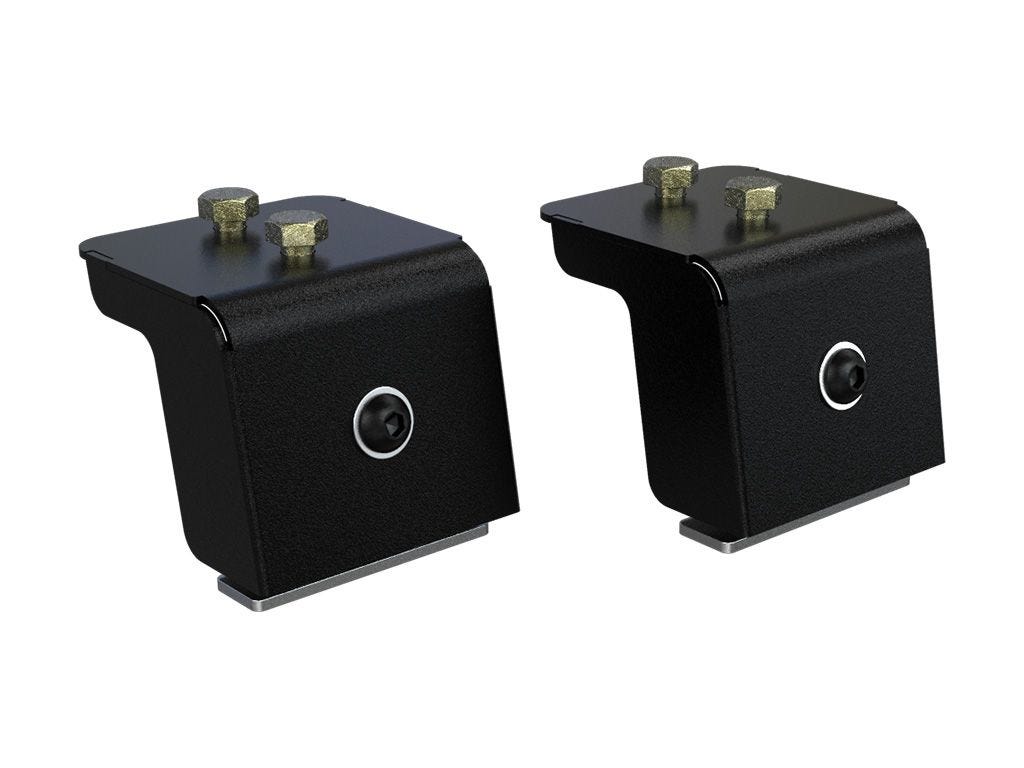

1 x FASS024 - Foot Set / 50mm-60mm - by Front Runner
1 x FASS025 - Foot Set / 70mm-80mm - by Front Runner

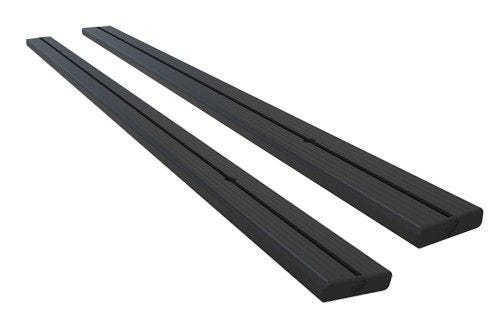

1 x LBSK013 - Load Bar Pair 1165mm(W) - by Front Runner
1 x TRMP005 - Mitsubishi Pajero SWB Tracks / 1620mm(L) - by Front Runner
1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight 8kg (18lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot or Grab-On Foot Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 110mm (4")
Length 1625mm (64")
Height 180mm (7")
Shipping Weight:
Weight 9.4kg (20.7lbs)
