Mahindra Scorpio Load Bar Kit / Gutter Mount
CHF 369
Laden...
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
[]
Front Runner ist jetzt ein Teil von Dometic
SKU: KRMS003
Technische Informationen
Technische Informationen

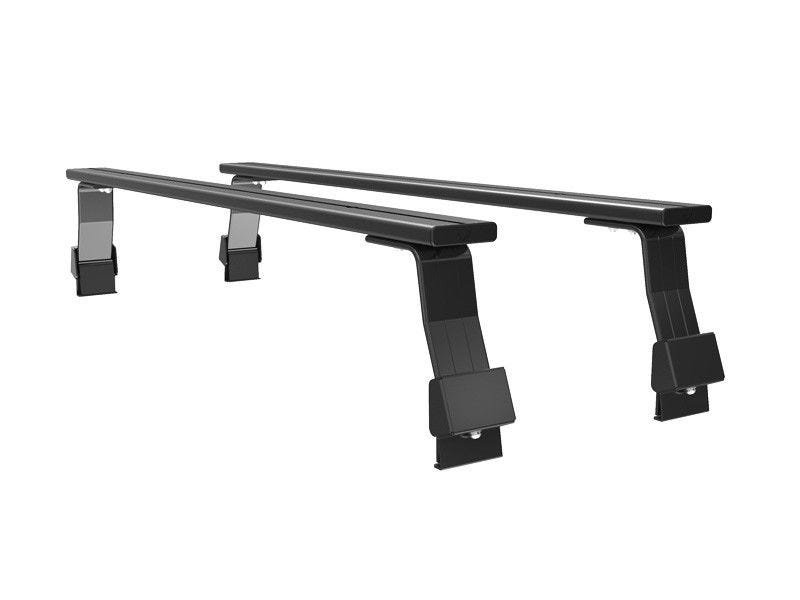

KRMS003 - Mahindra Scorpio Load Bar Kit / Gutter Mount - by Front Runner
Consisting of:
2 x LASS105 - No 5 Leg 190mm (Pair) - by Front Runner
1 x LBSK016 - Roof Load Bar Pair 1425mm(W) - by Front Runner
1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight 8kg (17lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot or Grab-On Foot Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 120mm (5")
Length 1545mm (61")
Height 175mm (7")
Shipping Weight:
Weight 8.9kg (19.7lbs)
