Dometic SeaStar SSC81

Big-T Dual Station Steering Cable, available in many lengths
Verkauf über unser Händlernetzwerkinkl. MwSt., zzgl. Versand | Lieferzeit 3-7 WerktageArt.-Nr. 9130005593
Ihre Konfigurationen
Dimensions product length, [']

26

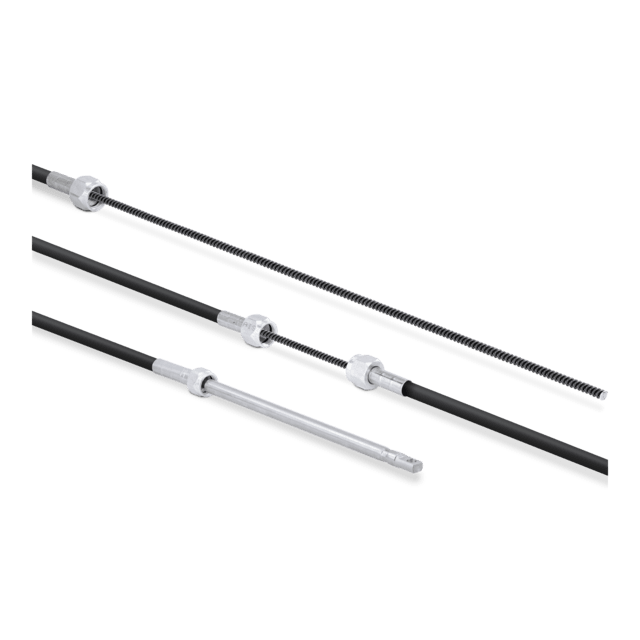

The Dometic SeaStar Big-T SSC81 type cable is a dual station rotary cable. These cables have a threaded nut connection for easy installation and a trapped nut that stays in place during cable routing. SSC81 type cables feature stainless steel output ends.

For Inboards up to 34' with dual stations

Threaded nut connections at both ends

Trapped nut engine connection stays in place during cable routing

Outer jacket is constructed with HDPE, a high density polyethylene material that is abrasion resistant and provides a high resistance to water penetration

Output ends are constructed of stainless steel material for corrosion resistance

Exceeds ABYC safety standards and ISO/IMCI/NMMA certification requirements

For use with a Dometic Big-T helm, SH5000P

How to measure dual stations

How to measure dual stations

For a Dometic Big-T dual station steering system, the cable required is SSC81AxxBxx, where xx = the lengths of the two cable sections in feet. The letter “A” in the part number represents the cable routing path distance between steering stations. The letter “B” represents the cable routing path distance from the lower station to the engine/rudder area. The different cable lengths are available in one-foot increments only.
