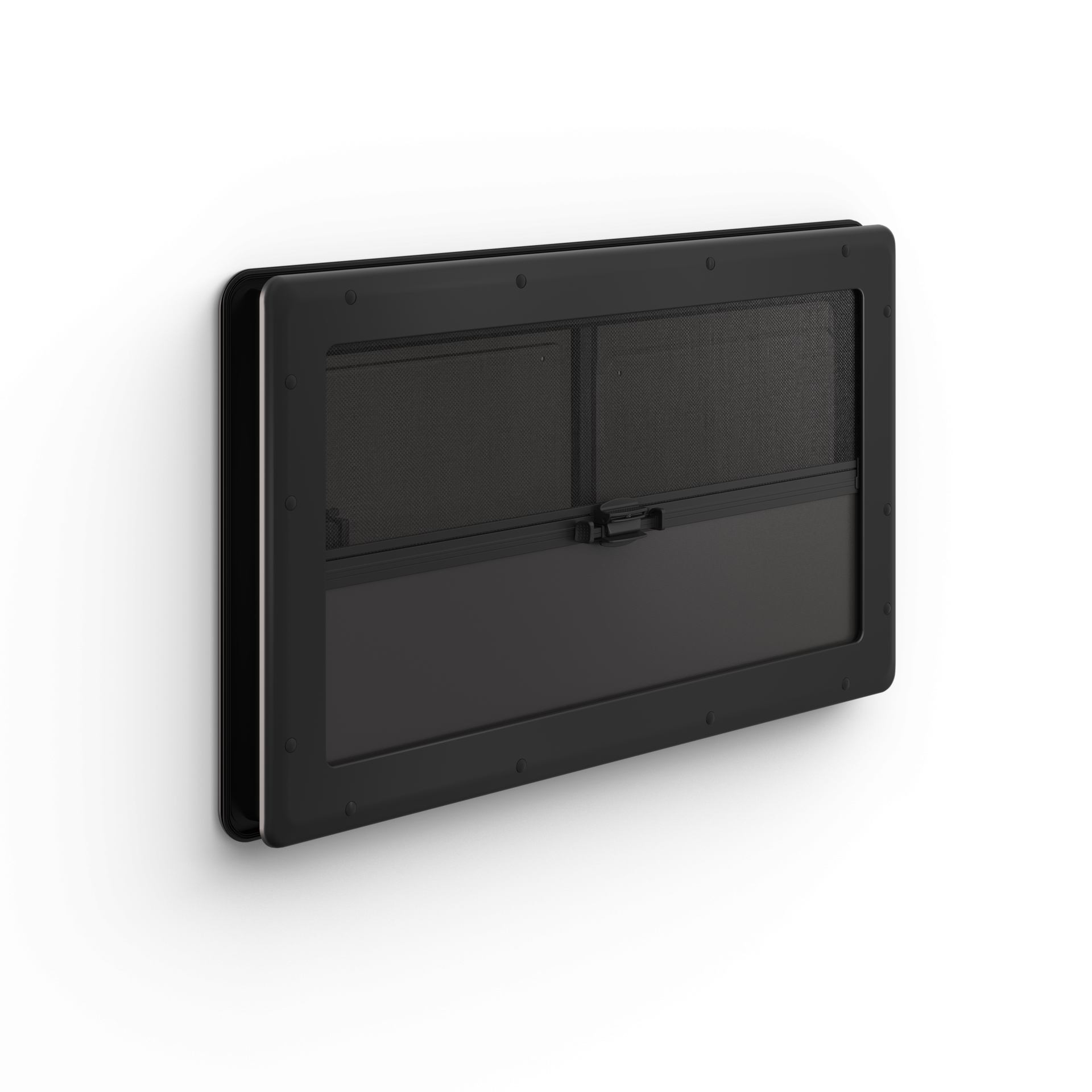

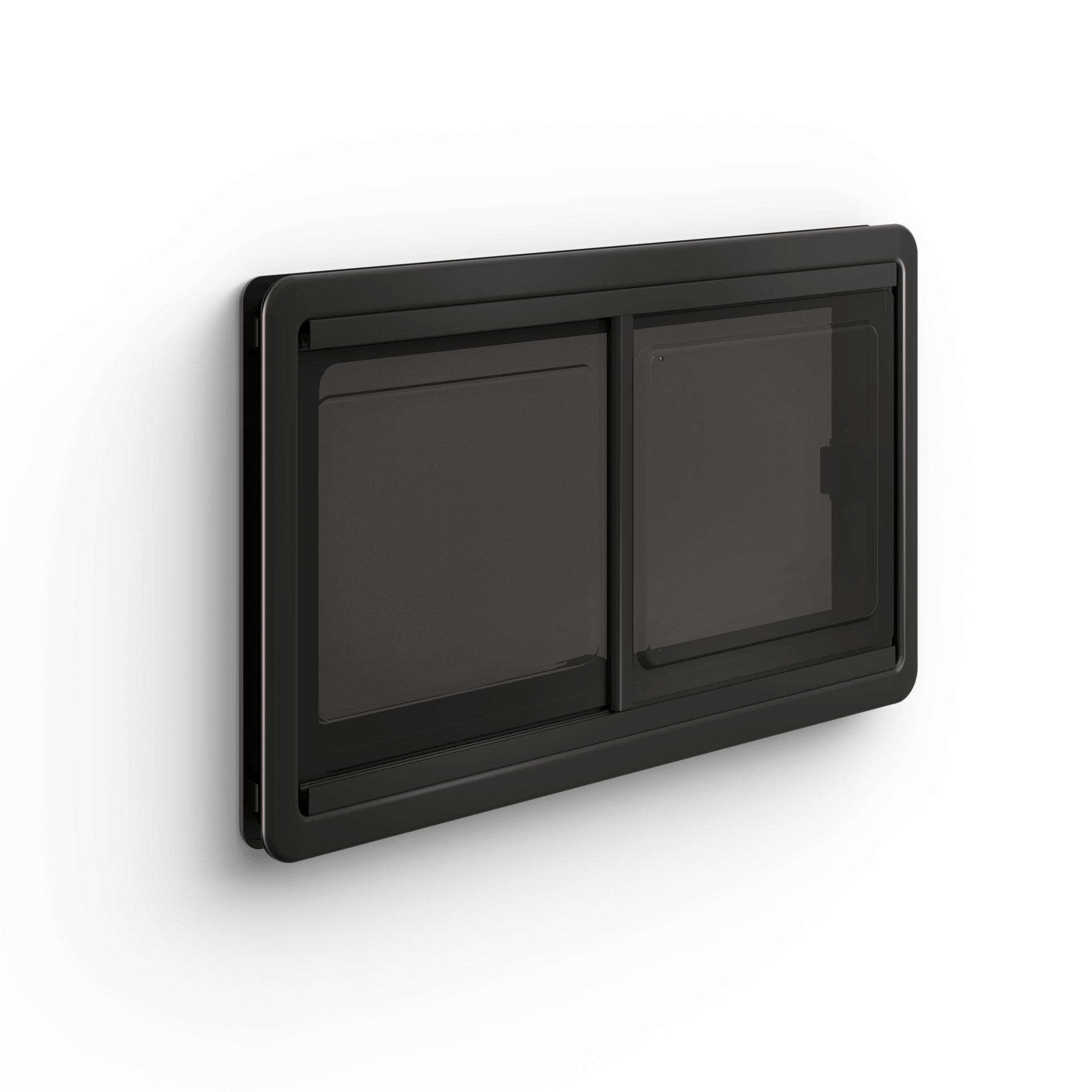

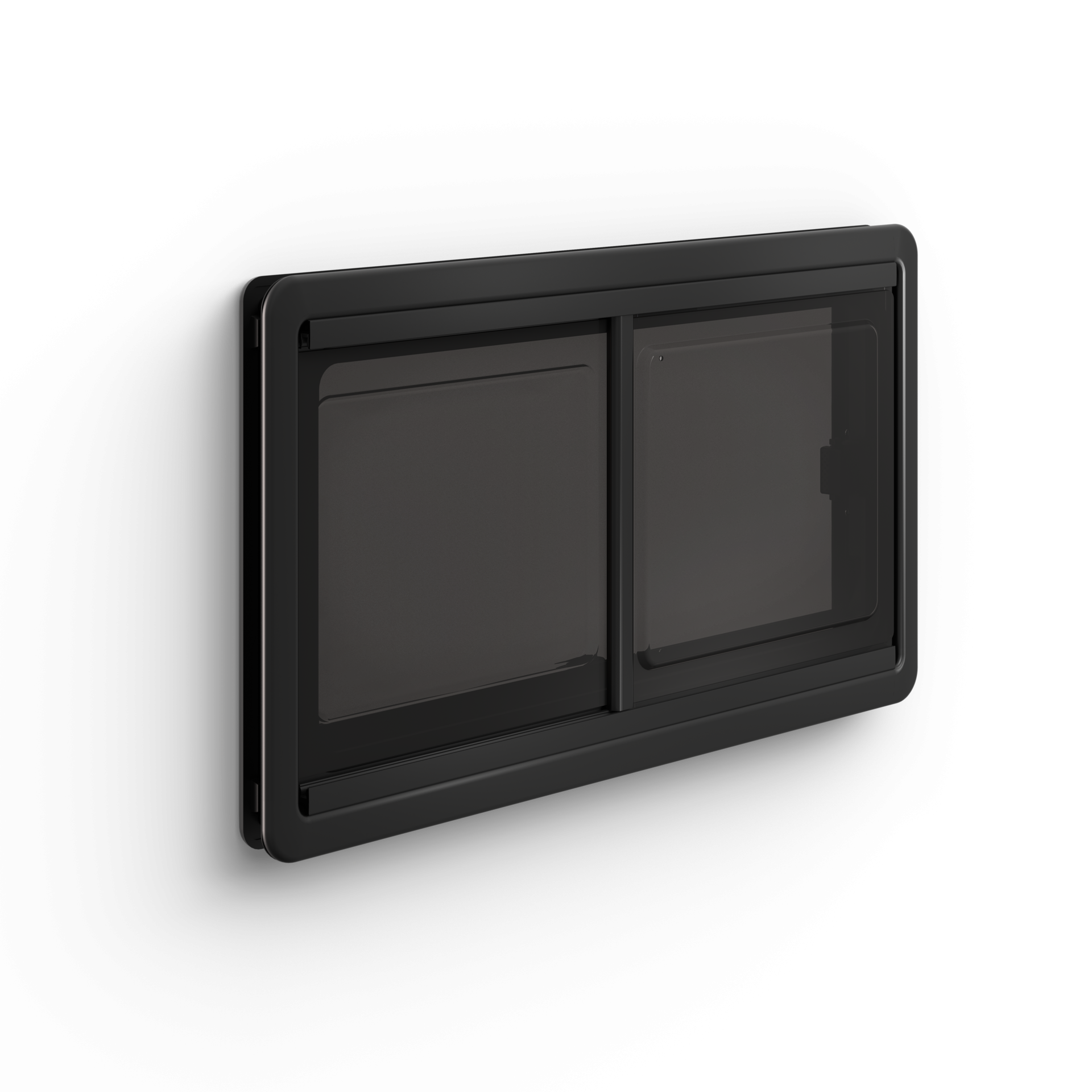

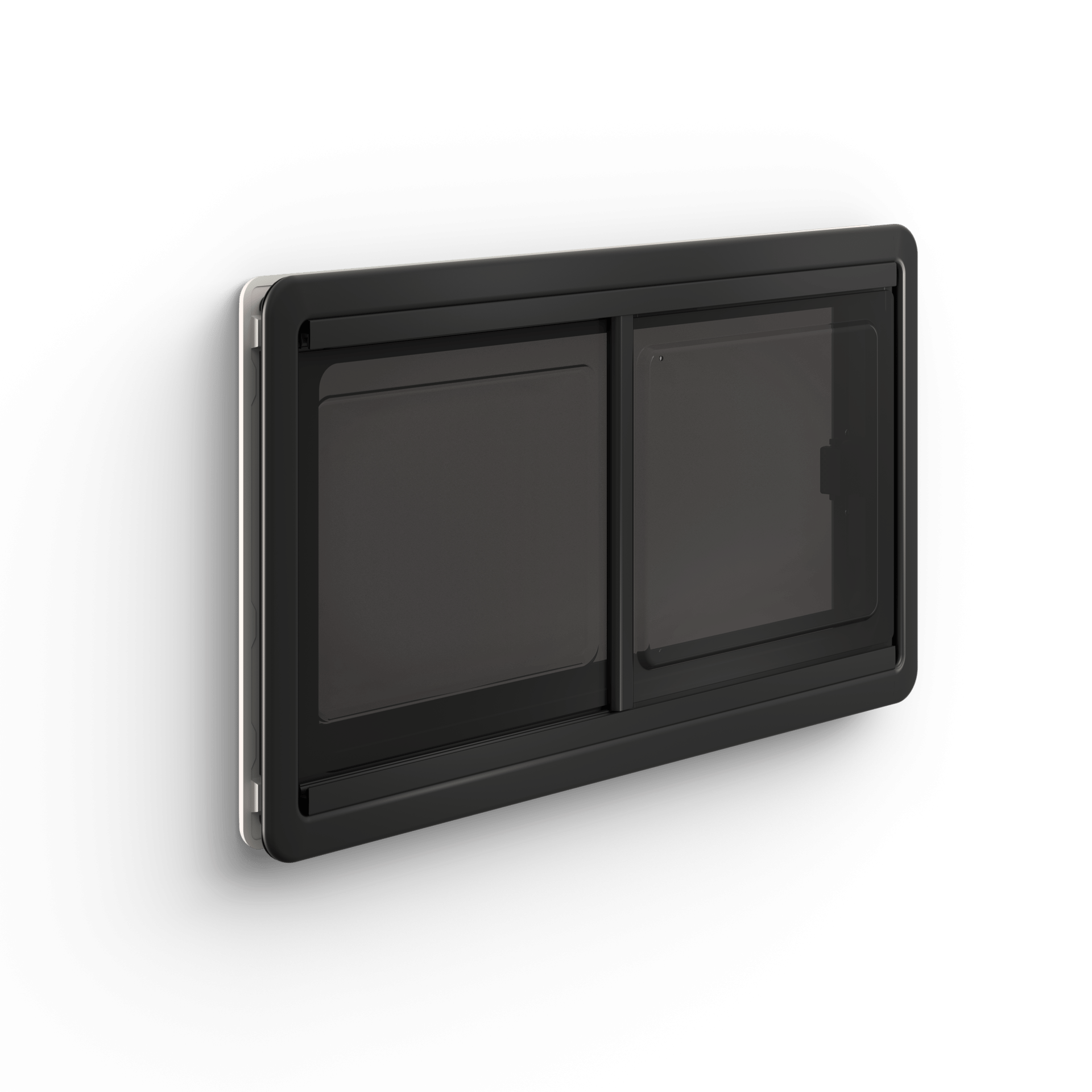

Dometic PUR-Win S10
Schiebefenster, 500 x 450, schwarz
449 €
SKU: 9620023801
Technische Informationen
Spezifikationen
- Allgemein
- Scope of delivery
- S10.4 Window with manual in box
- SKUCertificates
- ECE R43
- Product Description
- Schiebefenster, 500 x 450, schwarz
- Abmessungen
- Dimensions product height, [mm]
- 480
- Dimensions product width, [mm]
- 544
- Dimensions product width, ["] - Display
- 21.42
- Dimensions ordered height, [mm]
- 450
- Dimensions ordered width, [mm]
- 500
- Net weight, [kg]
- 5
- Net weight, [lbs]
- 11.02
- Standard mount. material thickness 1 min, [mm]
- 26
- Standard mount. material thickness 1 max, [mm]
- 26
- Possible material thickness 1 min, [mm]
- 27
- Possible material thickness 1 max, [mm]
- 41
- Cut out height, [mm]
- 448.000000
- Cut out width, [mm]
- 500.000000
- Eigenschaften
- Hinge type
- Schiebescharnier
- Positions variable
- Variable
- Logistik
- Dimensions parcel depth, [mm]
- 560
- Dimensions parcel height, [mm]
- 180
- Dimensions parcel width, [mm]
- 640
- Parcel weight, [kg]
- 6.18
- Parcel weight, [lbs]
- 13.62
