Beschreibung
- Heavy duty universal cylinder
- For high performance applications with multiple engines
- Superior corrosion resistance
- New pivot plate design, for smooth articulation and a sealed joint
- Adjustable 90 degree stainless steel ORB elbow fittings
- Robust wipers, seals, barrel, shaft and support brackets
- Bolt-on stainless steel tie bar plates (reversible)

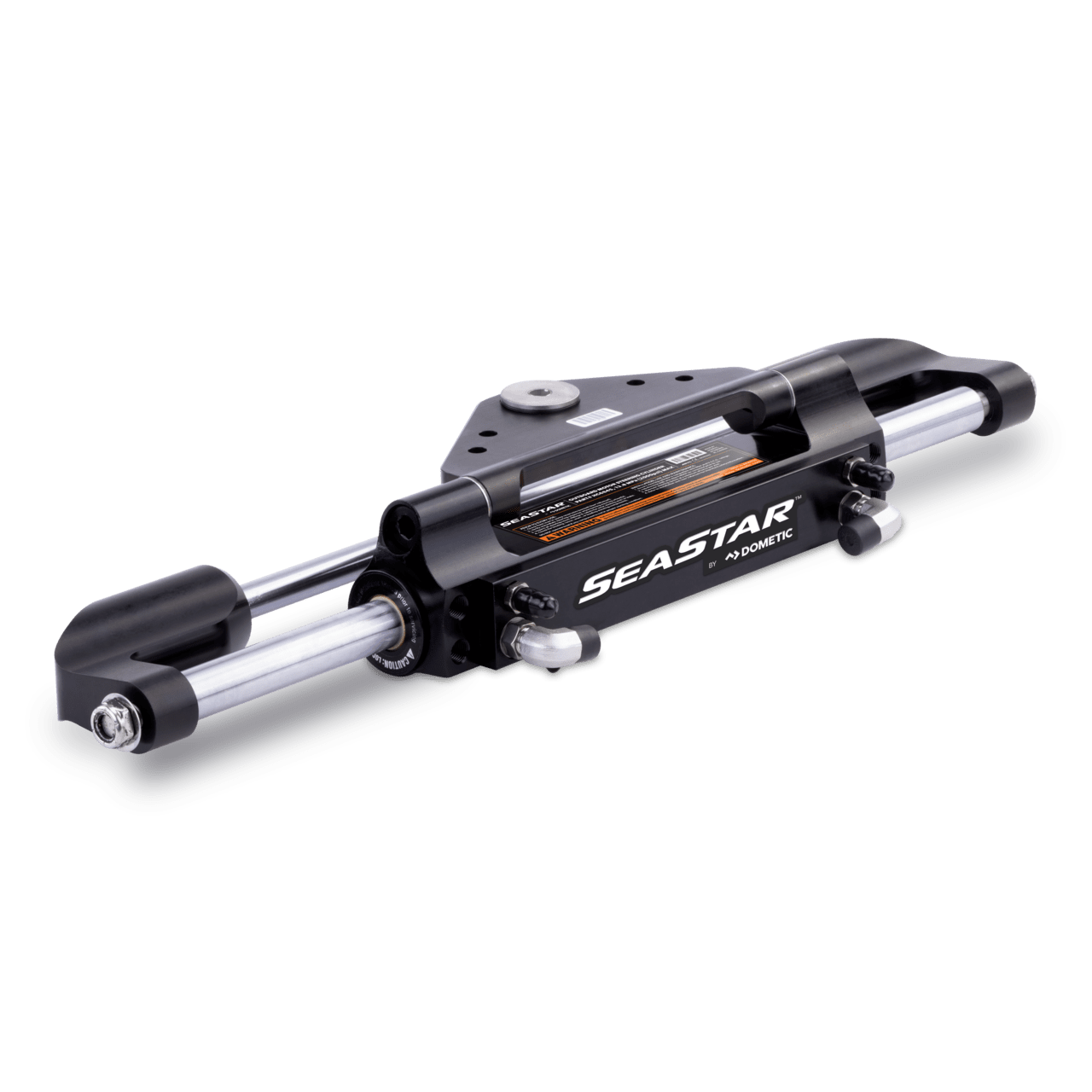

Tournament outboard cylinders are extreme heavy duty cylinders designed for primarily high performance multiple engine applications. Also available for single engine applications. This heavy duty universal cylinder features reversable bolt on stainless steel tie bar plates.
Spezifikationen
SKU: 9130001038
| Model | Tournament Cylinders |
|---|---|
| Product Description | High performance steering cylinder, front mount, HC6845 |
| Dimensions product depth, [mm] | 146.05 |
|---|---|
| Dimensions product width, [mm] | 581.02 |
| Net weight, [kg] | 6.03 |
| Operating temperature min, [°C] | -18 |
|---|---|
| Operating temperature max, [°C] | 77 |
High performance
Extreme heavy duty cylinders are designed for primarily high performance, multiple engine applications. The Dometic SeaStar Tournament Cylinder is also available for single engine applications.
