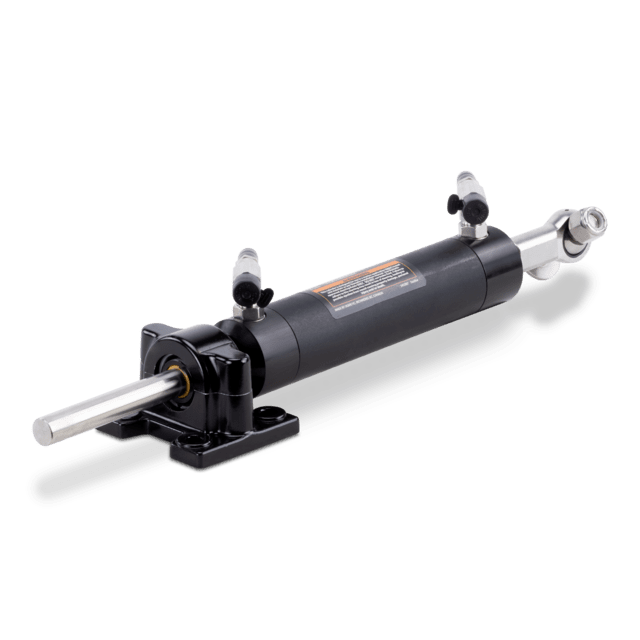

Dometic SeaStar Inboard Cylinder

Inboard Cylinder, BA150-3.5ATM

SeaStar inboard marine hydraulic steering cylinders are designed for single and dual rudder vessels with two axis articulation and easy autopilot interface. Manufactured with regular marine duty aluminum, these cylinders have a wide range of boat steering applications.

Available at selected dealersArt nr: 9130000934 (HC6324-3)

SKU number

9130000934

Model

SeaStar Inboard Cylinder

Legacy Factory Item Number

HC6324-3

Product Description

Inboard Cylinder, BA150-3.5ATM

Dimensions product height, ["]

2 1/4

Dimensions product width, ["]

12 1/4

Net weight, [lbs]

5.50

Actuation Stroke Length, ["]

3.5

Maximum Pressure rating, [psi]

1000

Colour

Black

Allowable Fluid Type

SeaStar steering fluid

Port Type

SAE

Shaft Diameter, ["]

0.63

Cylinder Type

Inboard

Dimensions parcel depth, ["]

4

Dimensions parcel height, ["]

21

Dimensions parcel width, ["]

5 1/2

Hydraulic Steering for Inboard and Sterndrive Powered Vessels - Installation and User Manual EN(US)

Installation and Operating Manual

Download
