Discontinued

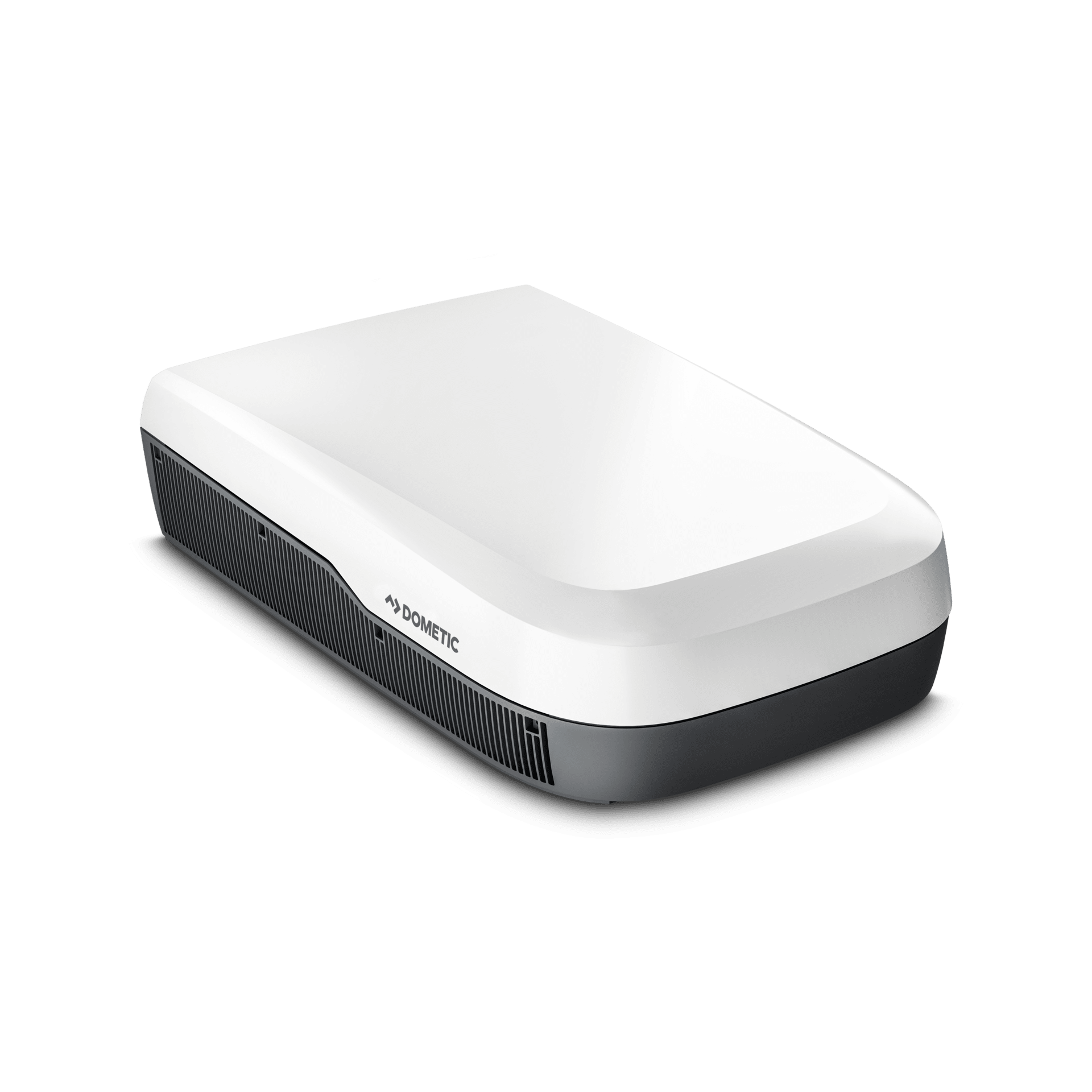

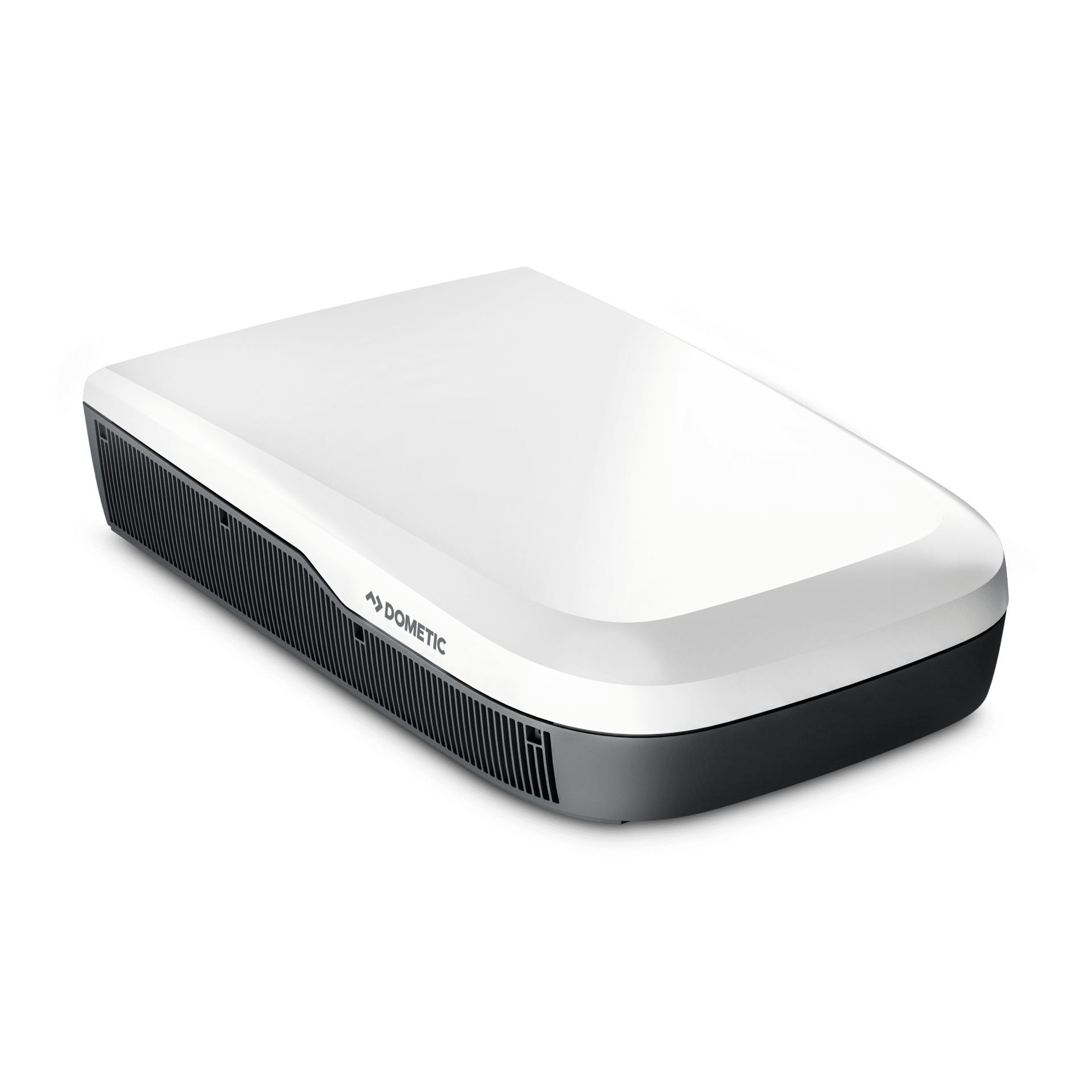

Dometic Harrier Lite

Roof air conditioner
Available at selected dealersArt nr: 9600009483

The Dometic Harrier Lite is Dometic’s latest innovation in air conditioning and has been specially designed to fit small to medium-sized caravans, pop-tops, and campers. Dometic has struck a balance between utilising a lightweight, compact design, and an impressive heating and cooling performance. It comes featured with cool, white LED lights, and the dual-cylinder inverter compressor that the market has come to know through the highly sought-after IBIS 4.

  • Lightweight
  • LED Lights
  • Convenient
  • Easy control
  • Optimised airflow
  • Two-piece ADB

Dual-cylinder inverter compressor reduces vibration and is highly efficient

Low fan noise with three standard speeds

Cool white LED lights in the ADB which can be activated via the remote control

Adjustable outlet vents with individual vertically adjustable airflow

Connectivity with CI-BUS compatible control panels

Lightweight for a low centre of gravity

Low profile rooftop unit

SKU number

9600009483

Model

Harrier Lite Roof Top + ADB

Model on label

HL36H401RI & CL01HR020

Scope of delivery

Roof Top Unit, ADB, Remote Control, User Manual, Installation Material, Installation Manual

Product Description

Roof air conditioner

Dimensions product depth, [mm]

997

Dimensions product height, [mm]

240

Dimensions product width, [mm]

665

Net weight, [kg]

37

Input voltage (AC), [V]

220-240

Input frequency, [Hz]

50

Cooling capacity (ISO 5151), [W]

2413

Heating capacity (ISO 5151), [W]

2421

Certificates

CBCERCM

EAN-13

0

Dimensions parcel depth, [mm]

1020

Dimensions parcel height, [mm]

380

Dimensions parcel width, [mm]

690

Parcel weight, [kg]

44

Dometic Harrier Lite (HL36H401RI, HL36H401RIY), Harrier Plus (HP36H401RI, HP36H401RIY) - Installation Manual APAC(en)

Installation Manual

Dometic HL36H401RI, HL36H401RIY (Harrier Lite); HP36H401RI, HP36H401RIY (Harrier Plus) - Operating Manual APAC(en)

Operating Manual

Dometic CK36H401RI/CK36H401RIY (Harrier Inverter) - Operating Manual APAC(en)

Operating Manual

Product Highlights

Lightweight
1 of 6

Lightweight

EPP base pan ensures a lighter build

LED Lights
2 of 6

LED Lights

Cool white LED activated via remote control

Convenient
3 of 6

Convenient

Remote control operation and energy-saving sleep mode

Easy control
4 of 6

Easy control

Simple touch control on air distribution box

Optimised airflow
5 of 6

Optimised airflow

Increased efficiency and reduced noise

Two-piece ADB
6 of 6

Two-piece ADB

Simplified assembly thanks to fewer parts

1 / 0
Dual-cylinder inverter compressor

Dual-cylinder inverter compressor

The Dometic Harrier Lite features an innovative dual-cylinder inverter compressor and its patented design minimises vibration and provides improved performance over conventional compressors. It’s this kind of smart design that puts the Harrier Lite in a league of its own and allows RV goers to enjoy cool and fresh air at the touch of a button.
