SKU: 9109002476

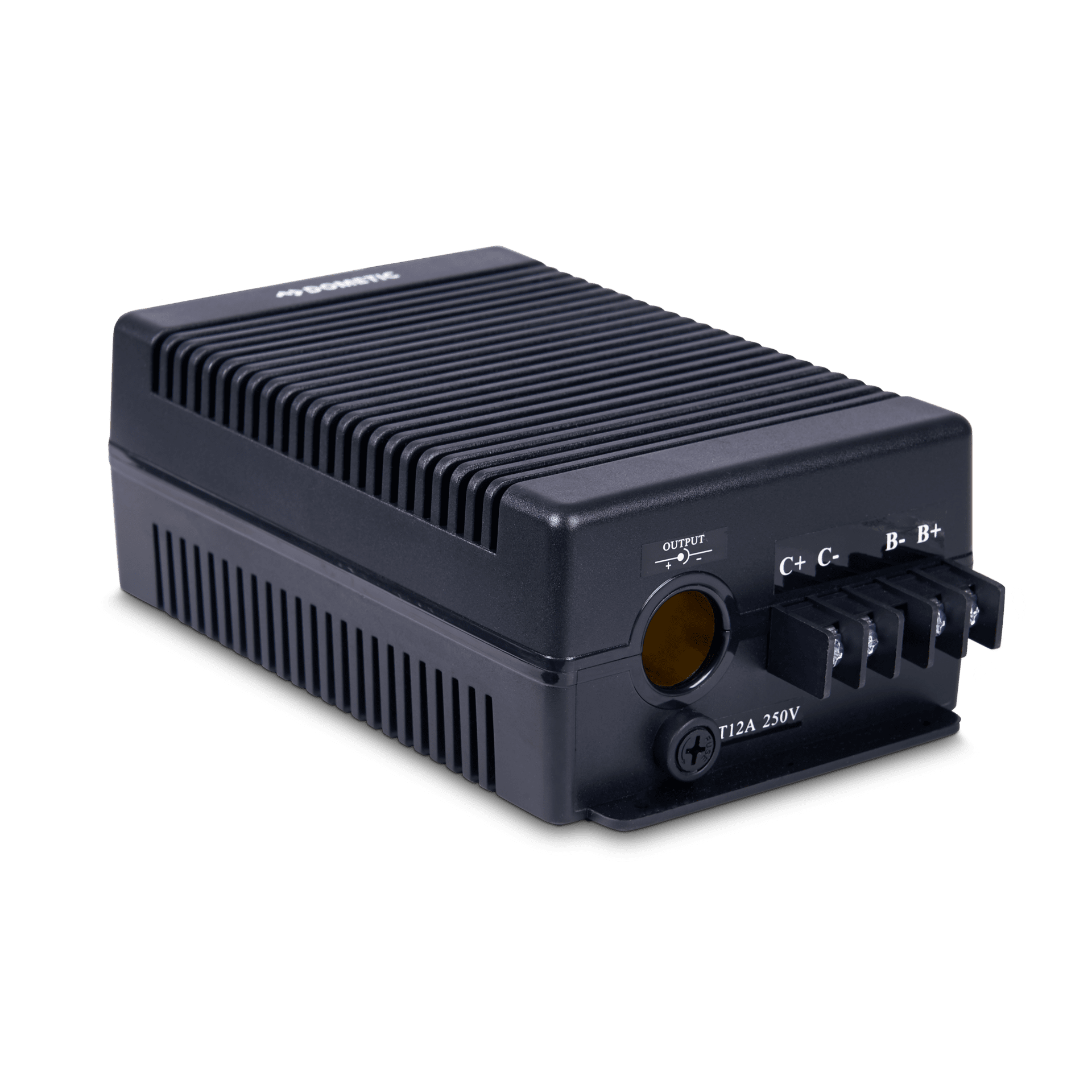

240 V AC to 24 V DC rectifier adapter for problem free connection to 110–240 V mains systems. Suitable for Dometic compressor CD and CU models. Comes with switch mode for automatic priority of mains operation and integrated cigarette lighter socket.
MORE DETAILS MORE PRODUCT DETAILS
Technical Information
Specifications General Scope of delivery 12V/24V DC main adapter SKUCertificates RCM Product Description Power adapter Dimensions Dimensions product depth, [mm] 200 Dimensions product height, [mm] 70 Dimensions product width, [mm] 120 Dimensions product width, ["] - Display 4 11/16 Net weight, [kg] Yes Net weight, [lbs] 2.20 Electrical Input voltage (AC), [V] 110/240 Input voltage (DC), [V] 12/24 Input frequency, [Hz] 50/60 Priority circuit (Integrated) Yes Performance Energy efficiency, [%] ≤87 Continuous power 25°C, [W] 150.000000 Operating temperature min, [°C] 0.000000 Operating temperature max, [°C] 40.000000 Logistics Dimensions parcel depth, [mm] 312.42 Dimensions parcel height, [mm] 119.38 Dimensions parcel width, [mm] 312.42 Parcel weight, [kg] 1.77 Parcel weight, [lbs] 3.90 Specifications Documentation & Downloads
