Description
- High-capacity centrifugal pumps
- Vibration-isolation mounts reduce noise and vibration
- Seawater-grade construction with glass-filled polypropylene or bronze pump heads
- Single-phase motors have built-in ignition protection
Provides a steady flow of cooling water through your marine air conditioning system. A wide range of pumps and motors are available for use in different power environments.
Specifications
SKU: 9108549754
| Model | Magnetic Drive |
|---|---|
| Product Description | Water pump for marine A/C systems, 230 V - 6 GPM, 14 ft. of head |
| Dimensions product depth, [mm] | 187.96 |
|---|---|
| Dimensions product height, [mm] | 142.24 |
| Dimensions product width, [mm] | 142.24 |
| Net weight, [kg] | 3.27 |
| Input voltage (AC), [V] | 230 |
|---|---|
| Input frequency, [Hz] | 50/60 |
| Current consumption max cooling, [A] | 1 |
|---|---|
| Flow Rate Imperial | 6 |
| Dimensions parcel depth, [mm] | 289.05 |
|---|---|
| Dimensions parcel height, [mm] | 177.80 |
| Dimensions parcel width, [mm] | 152.40 |
| Parcel weight, [kg] | 3.56 |
Dometic Service Event Request & Claim Reimbursement Form for Marine Air Conditioning - Warranty Document AMER(en)
Warranty Document
Dometic Marine Warranty Policy (Air Condition and Refrigeration) - Owner’s Limited Warranty Policy AMER(en)
Warranty Document

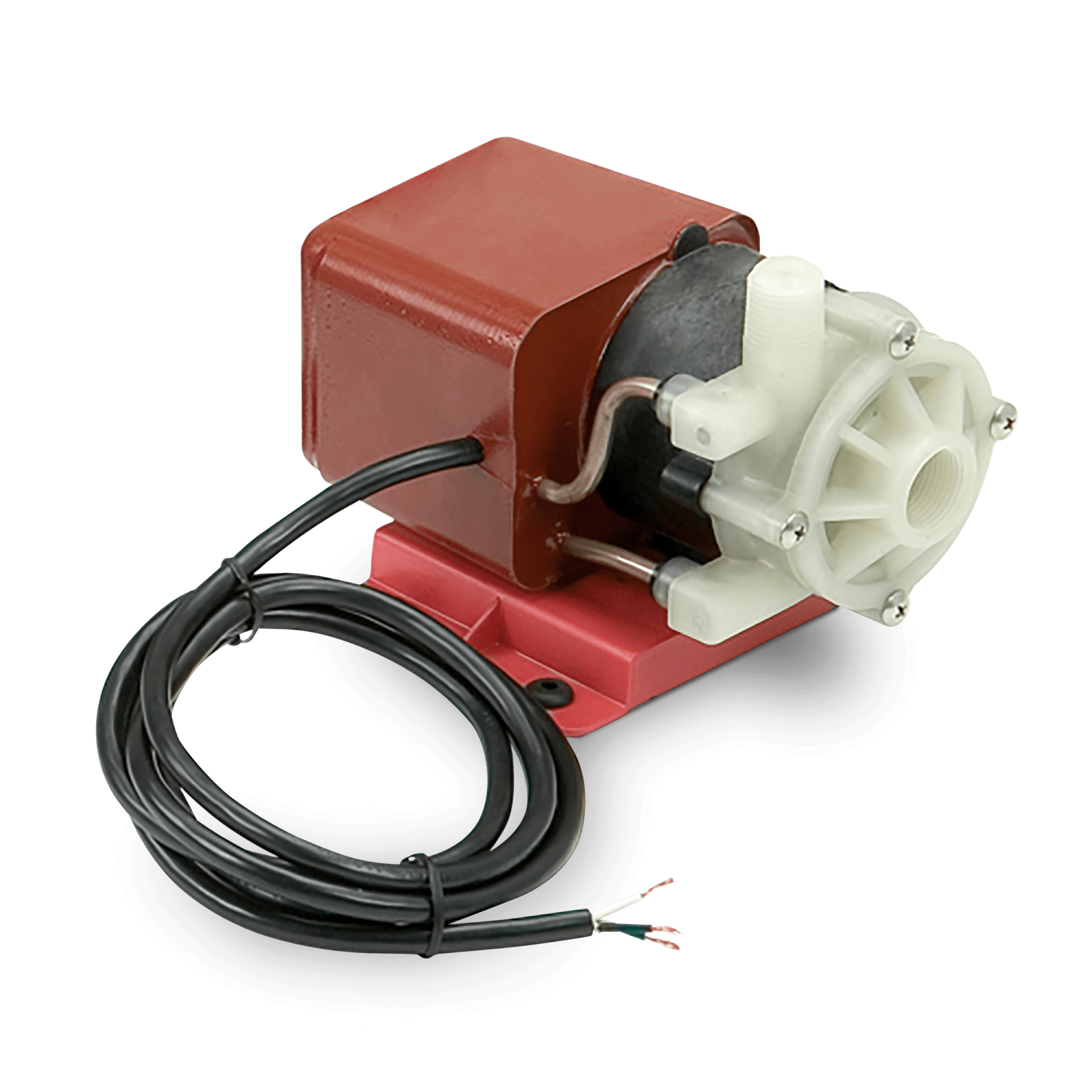

Dometic's Air-Cooled Pump provides seawater circulation for Dometic air conditioning systems. The proven magnetic drive eliminates the troublesome mechanical shaft seal. There is no seal wear, power-robbing friction, or leakage through the seal. The impeller and drive magnets are strong, permanent ceramic types, which prevent slippage, ensuring that full motor power is converted into pumping power.
