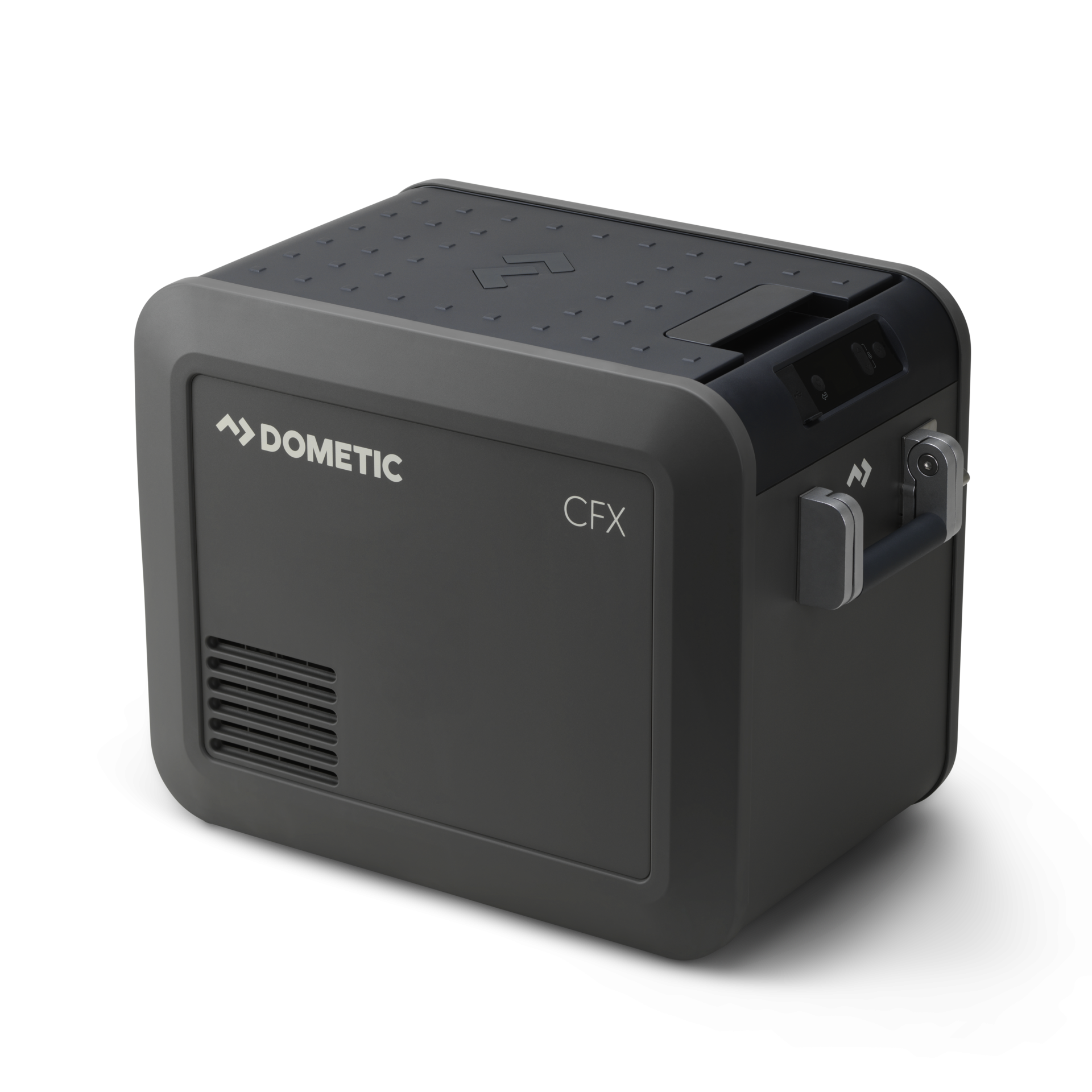

Dometic CFX5 25

Technische Informationen

Farbe

Black

Marke

Dometic

Scope of delivery

1 cooler; 1 manual; 1 DC connection cable, 2 AC connection cable, removeable wire basket

EAN-13

0034223507534

Publication Model Name

Dometic CFX5 25

Product Description

Performance Kompressorkühlbox, 25 l

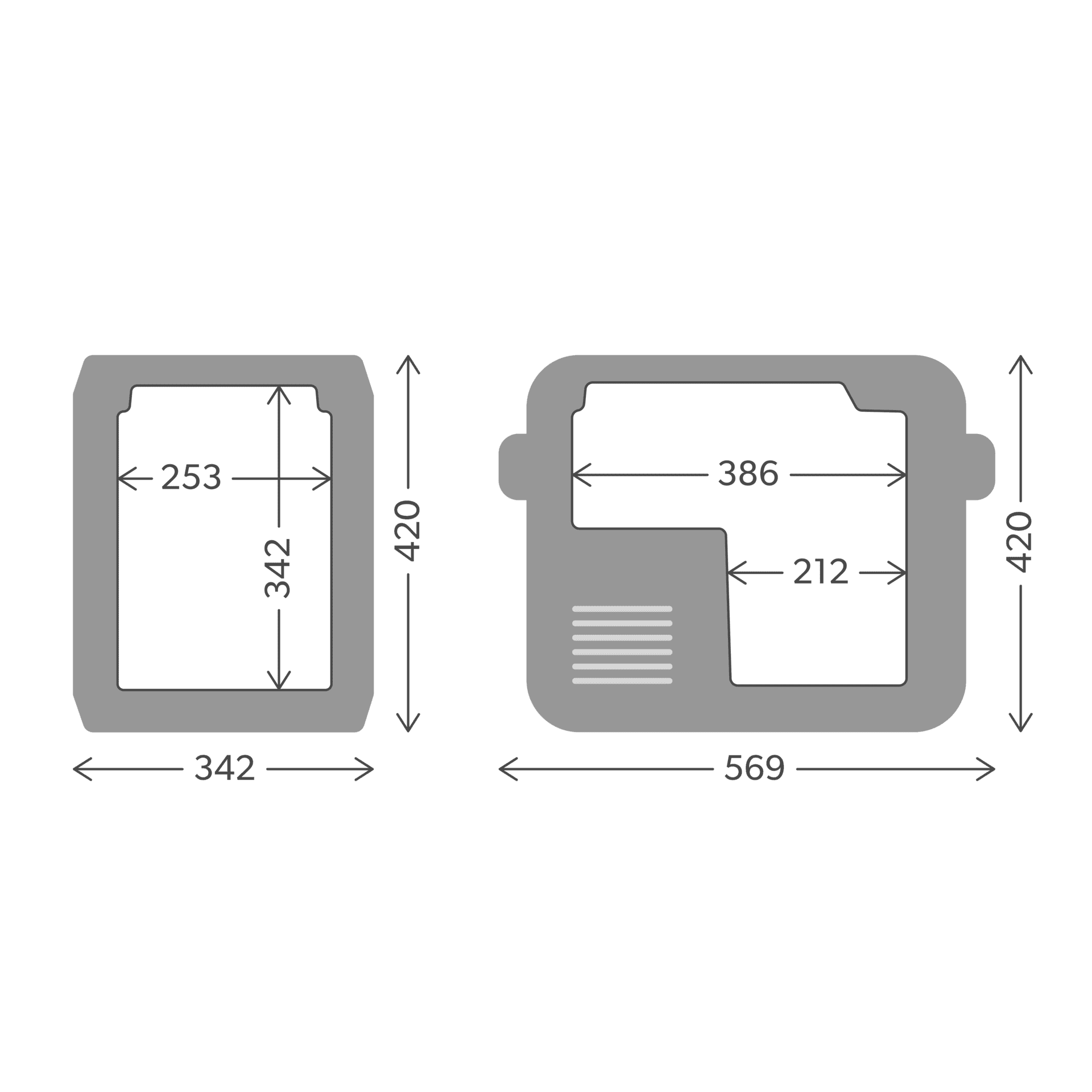

Dimensions product depth, [mm]

568.96

Dimensions product height, [mm]

420.12

Dimensions product width, [mm]

342

Net weight, [kg]

13.80

Net weight, [lbs]

30.43

Dimensions parcel depth, [mm]

605

Dimensions parcel height, [mm]

473

Dimensions parcel width, [mm]

382

Parcel weight, [kg]

15.80

Parcel weight, [lbs]

34.84

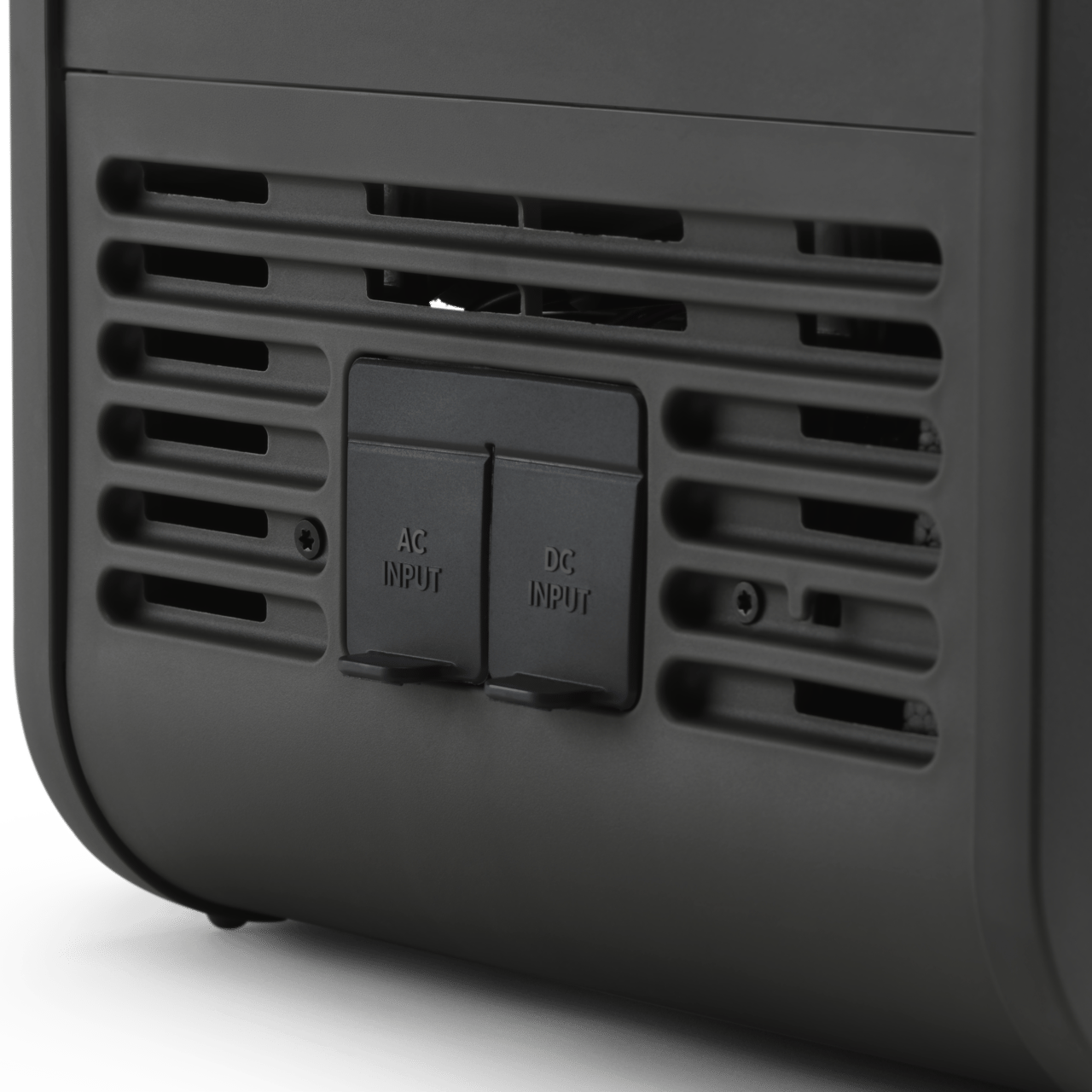

Rated input current (AC), [A]

1.10A at 100V; 0.46A at 240V

Rated input current (DC), [A]

4.2A at 24V, 9.2A at 12V

Rated input power (AC), [W]

41

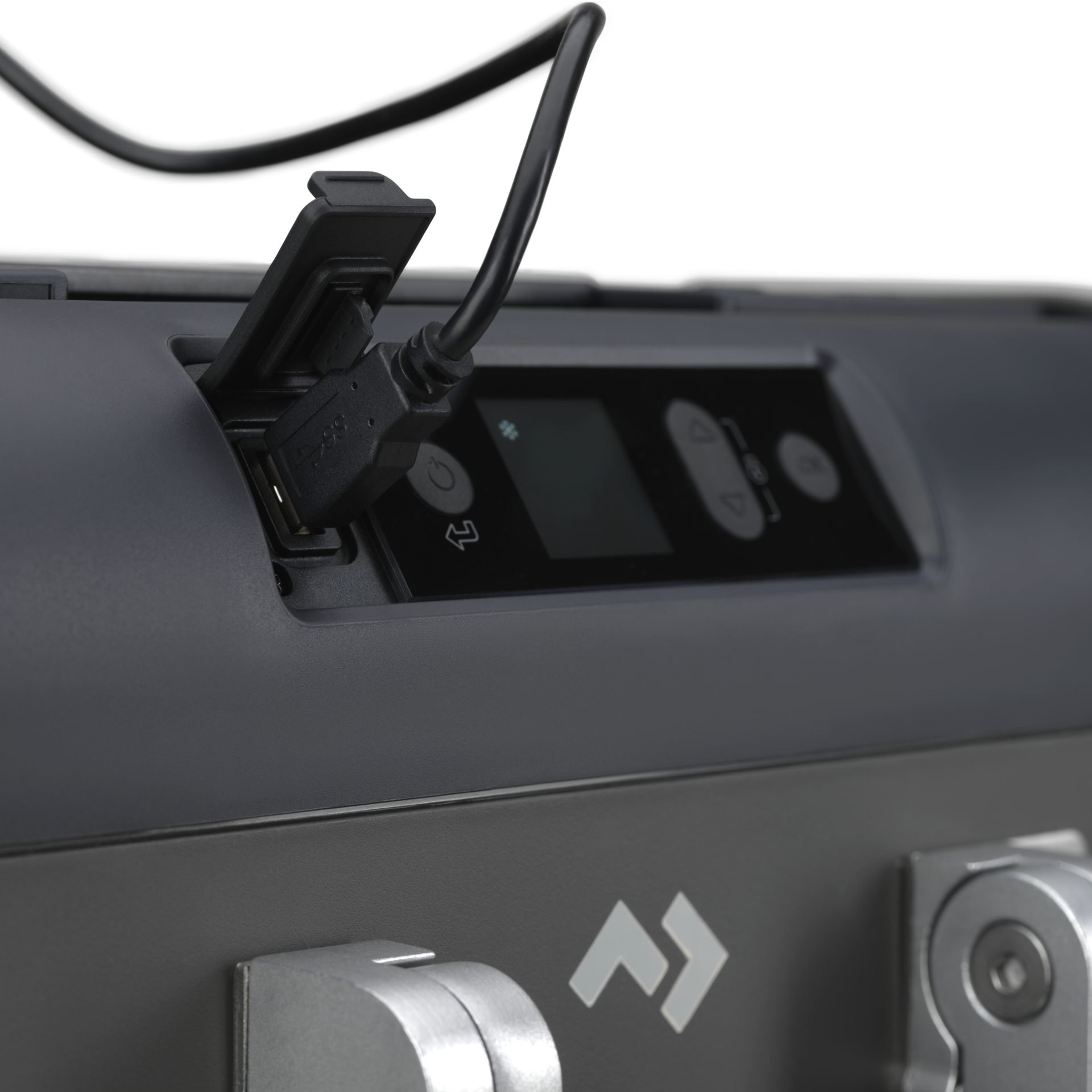

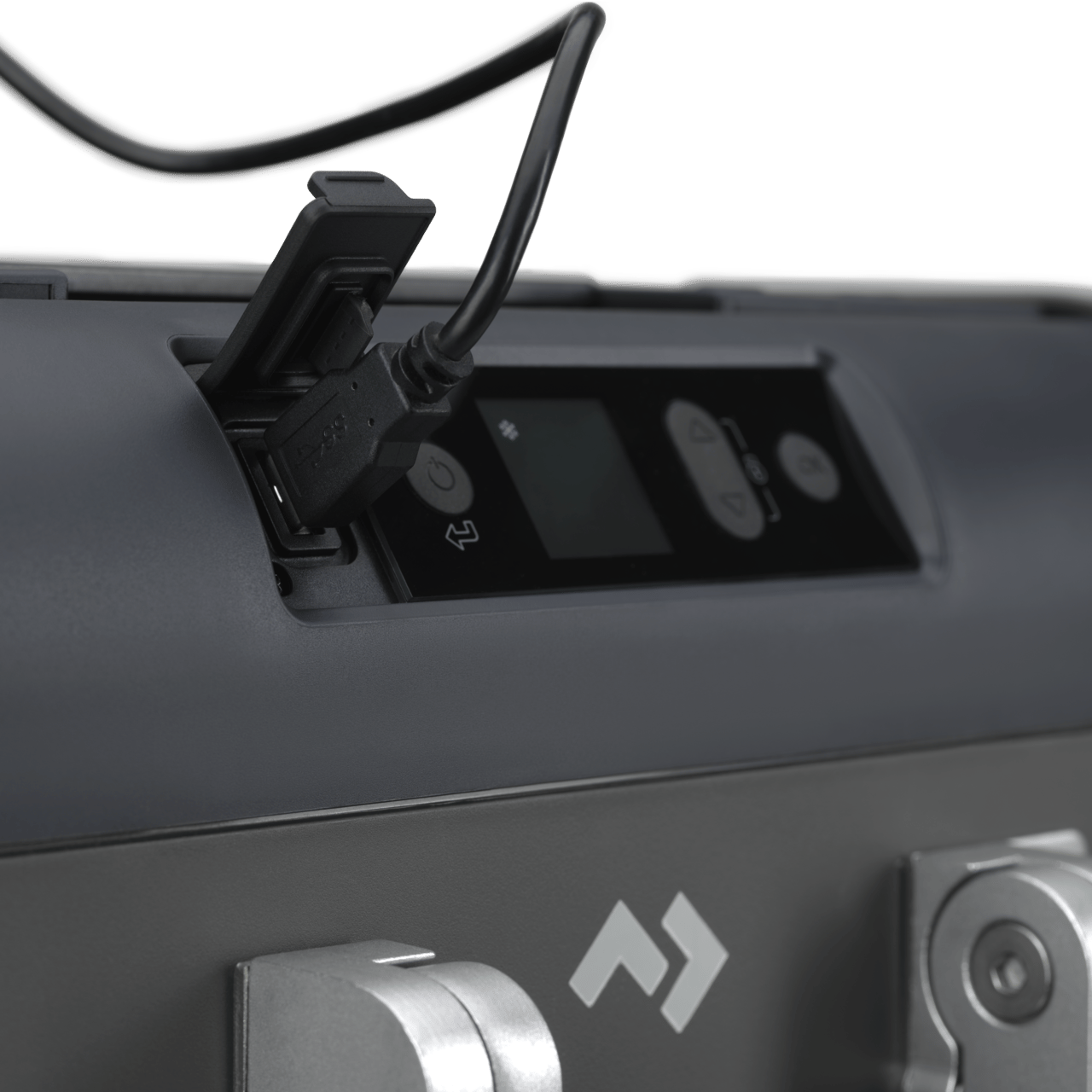

USB Port

Ja

Connectivity Type

Bluetooth, Interact, WiFi

Basket

Ja

Threaded inserts in base for mounting

M6

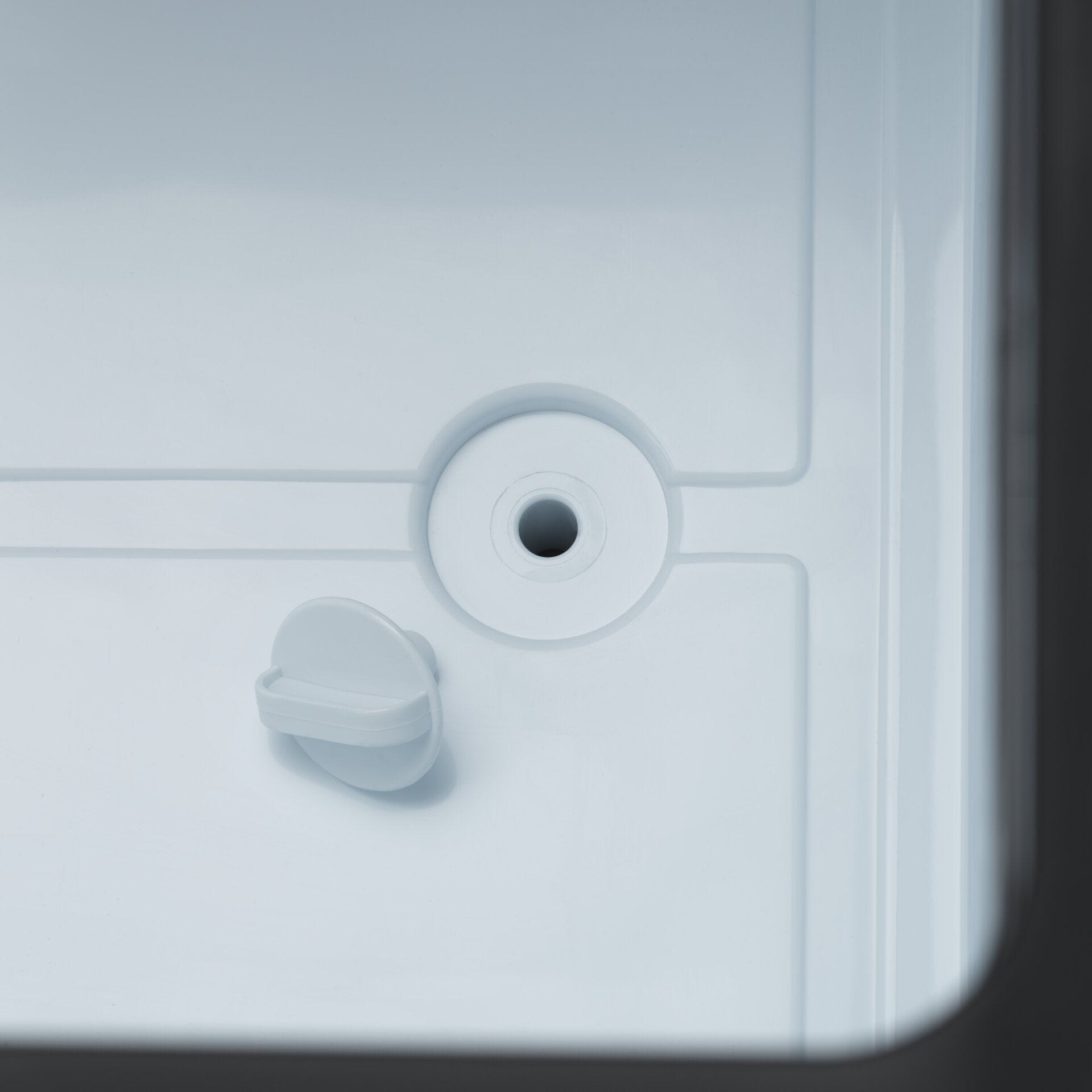

Drain plug

Ja

Single or Dual Zone

Single

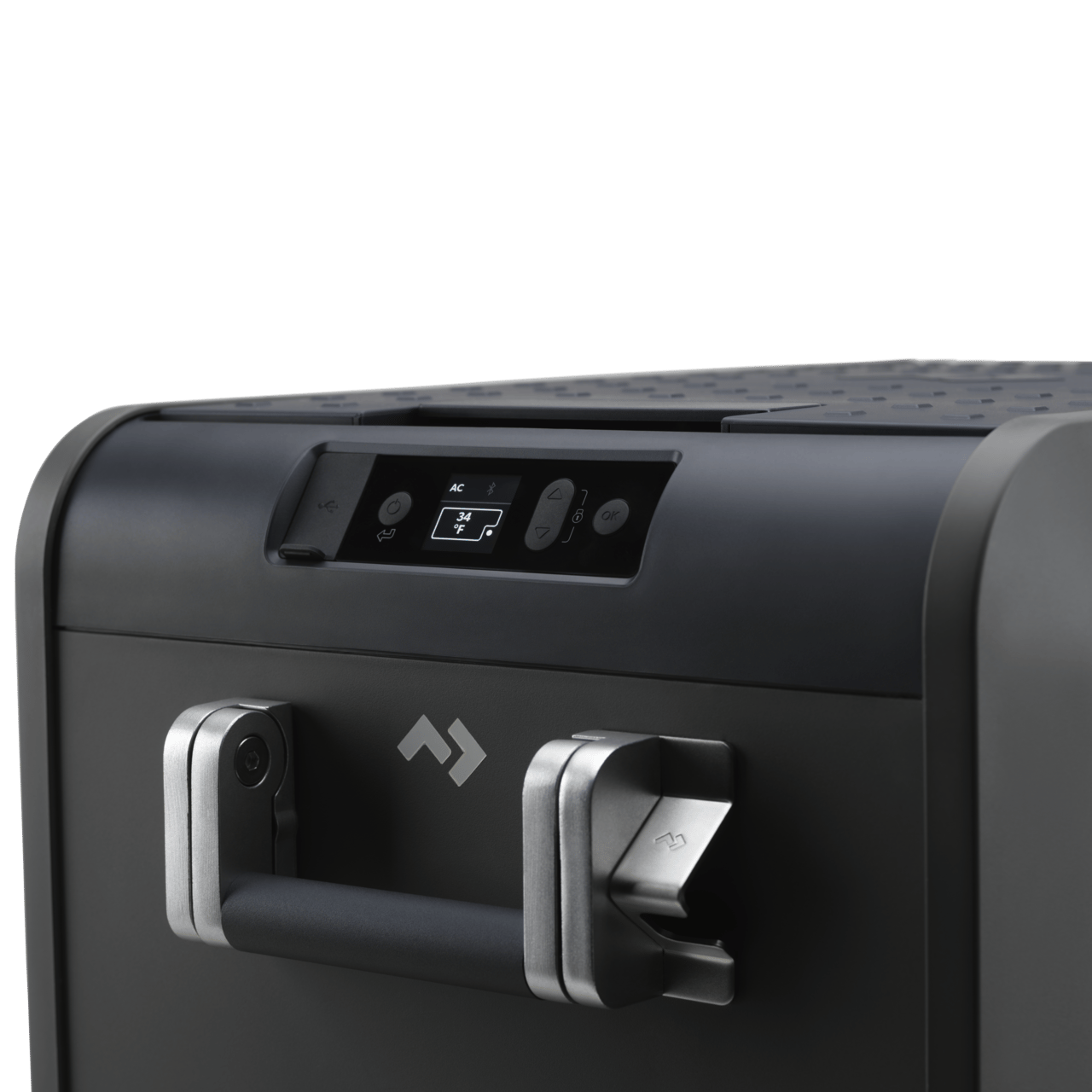

Thermostat control

Elektronischer Thermostat

Hinge type

Oben

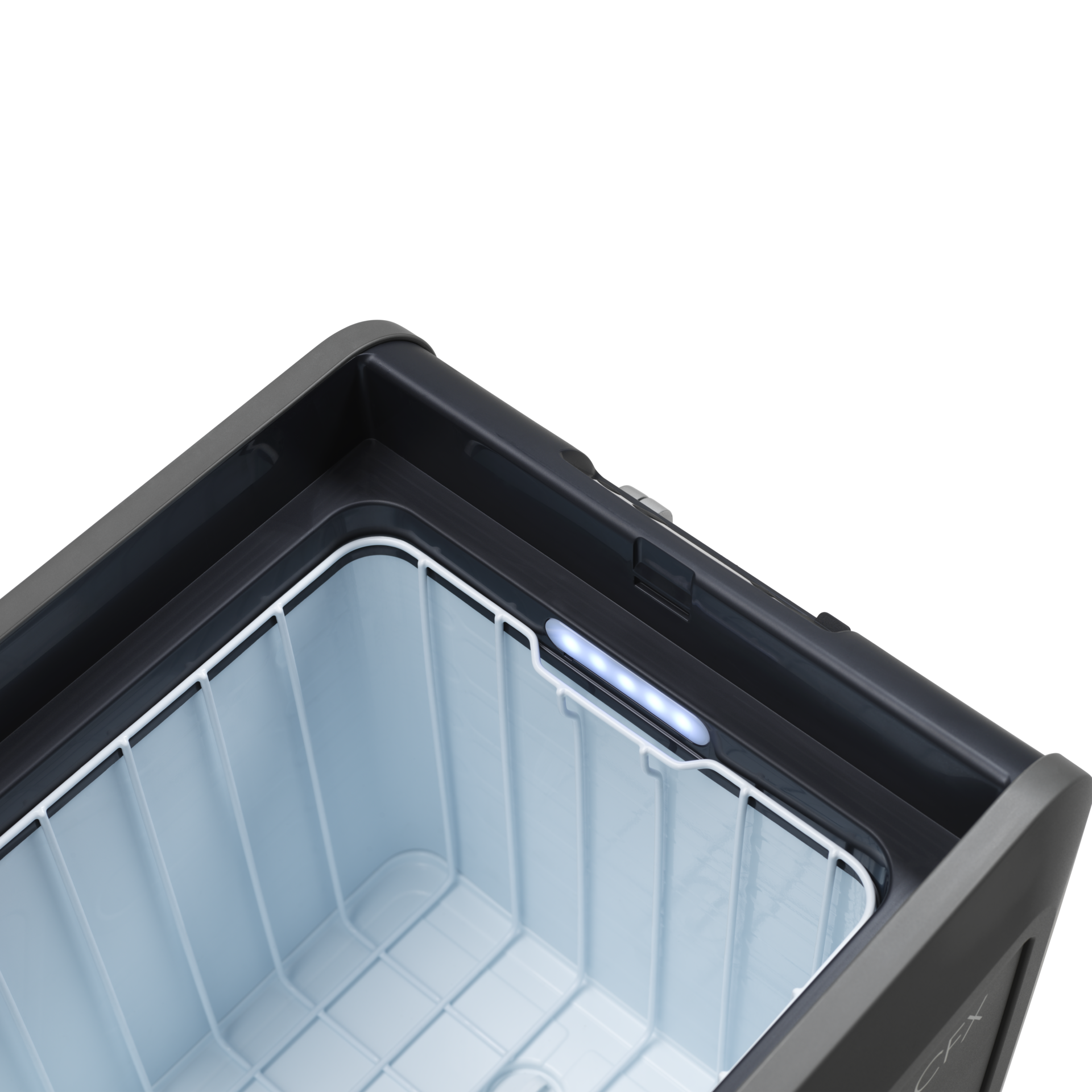

Interior light

Ja, LED

SKUCertificates

GMark;ECER10;UKCA;CB;EMC;GS

Total volume (IEC 62552-3), [l]

25.000000

Amount of cans (12oz/375ml)

33

Hermetically Sealed

Ja

Refrigerant, type

R600a

Input voltage (AC), [V]

100-240

Input voltage (DC), [V]

12/24

Input frequency, [Hz]

50/60

Battery type

Not Applicable (NA)

Priority circuit (Integrated)

Ja

Noise (EN60704-1 & 60704-2-14), [dB(A)]

41.000000

Annual energy consumption at AC, EU (EN62552-3:2020), [kWh/a]

34

Energy efficiency class (Regulation (EU) 2019/2016)

B

Climate class (EN 62552)

N/T

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

43.000000

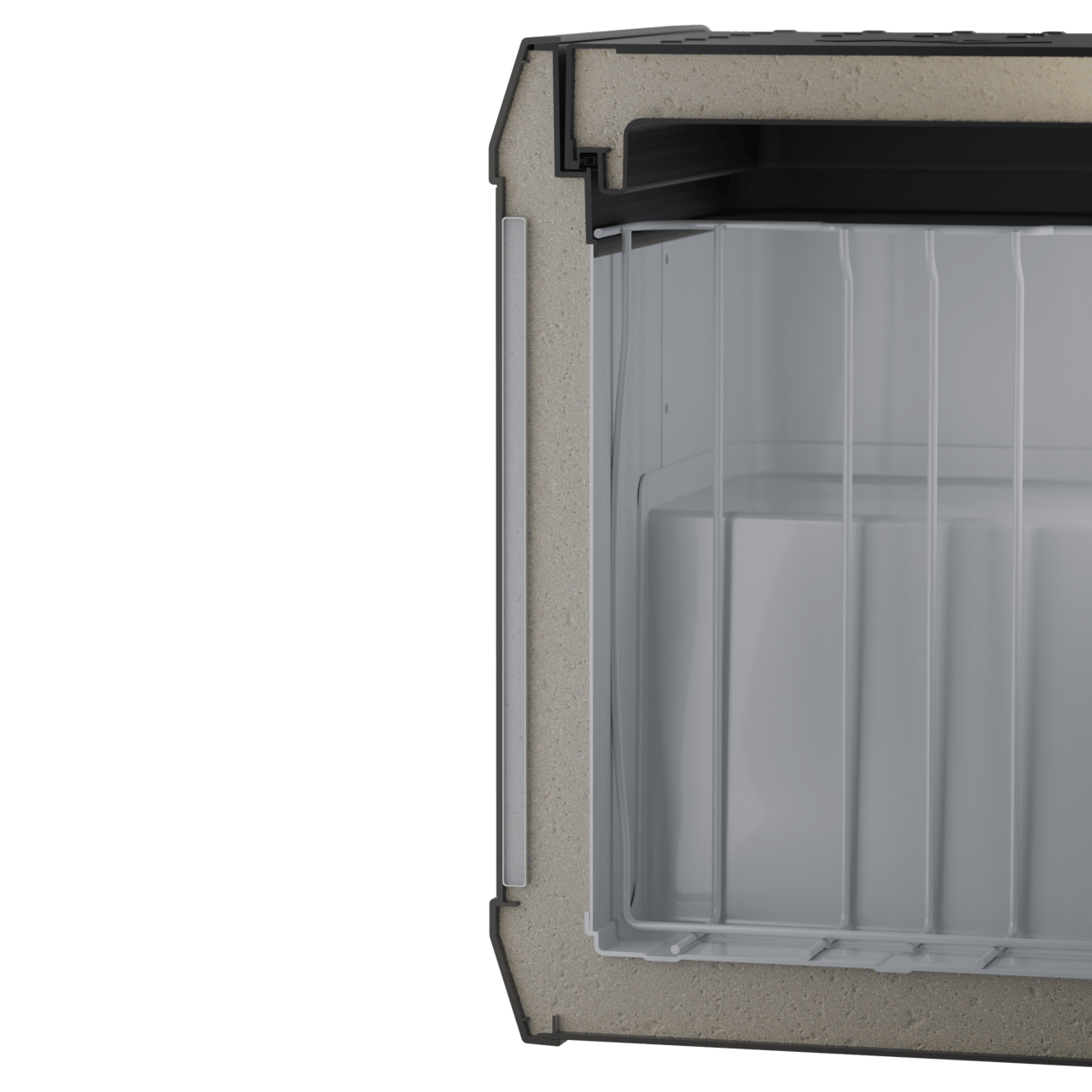

Insulation Type

PU (Polyurethane)

Dimensions product width, ["] - Display

13.46

Item Description

CFX5 25, AC/DC EU/UK/UAE Version, R600a, 5VA

Pack Size

Ja
