Dometic CFX5 45

Technische Informationen

Farbe

Black

Marke

Dometic

Scope of delivery

1 cooler; 1 manual; 1 DC connection cable, 2 AC connection cable, removeable wire basket

EAN-13

0034223507558

Publication Model Name

Dometic CFX5 45

Product Description

Performance Kompressorkühlbox, 46 l

Dimensions product depth, [mm]

694

Dimensions product height, [mm]

476

Dimensions product width, [mm]

398

Net weight, [kg]

18.90

Net weight, [lbs]

41.67

Dimensions parcel depth, [mm]

730

Dimensions parcel height, [mm]

525

Dimensions parcel width, [mm]

435

Parcel weight, [kg]

21.50

Parcel weight, [lbs]

47.41

Rated input current (AC), [A]

1.06A at 100V; 0.44A at 240V

Rated input current (DC), [A]

4.1A at 24V, 9.4A at 12V

Rated input power (AC), [W]

43

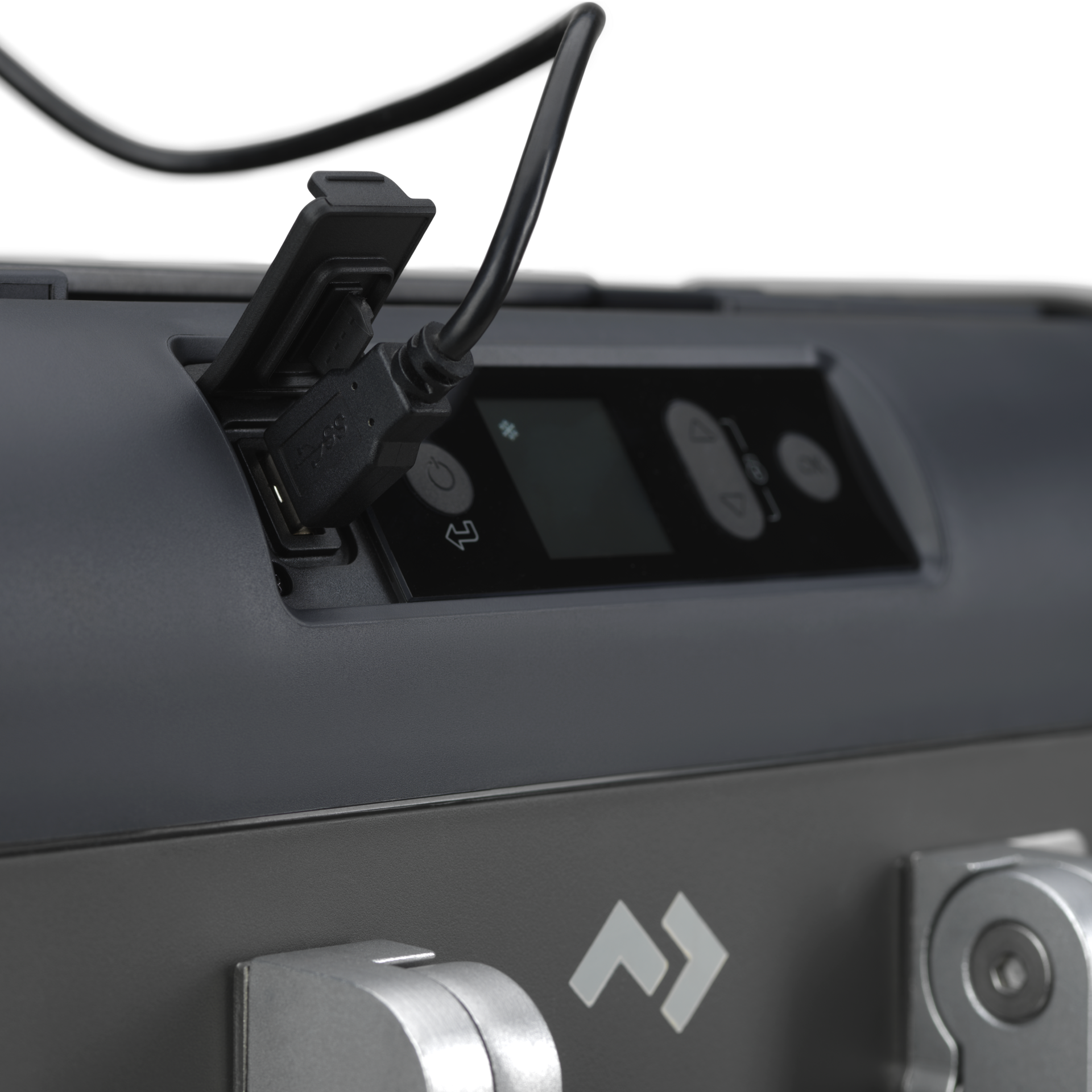

USB Port

Ja

Connectivity Type

Bluetooth, Interact, WiFi

Basket

Ja

Threaded inserts in base for mounting

M6

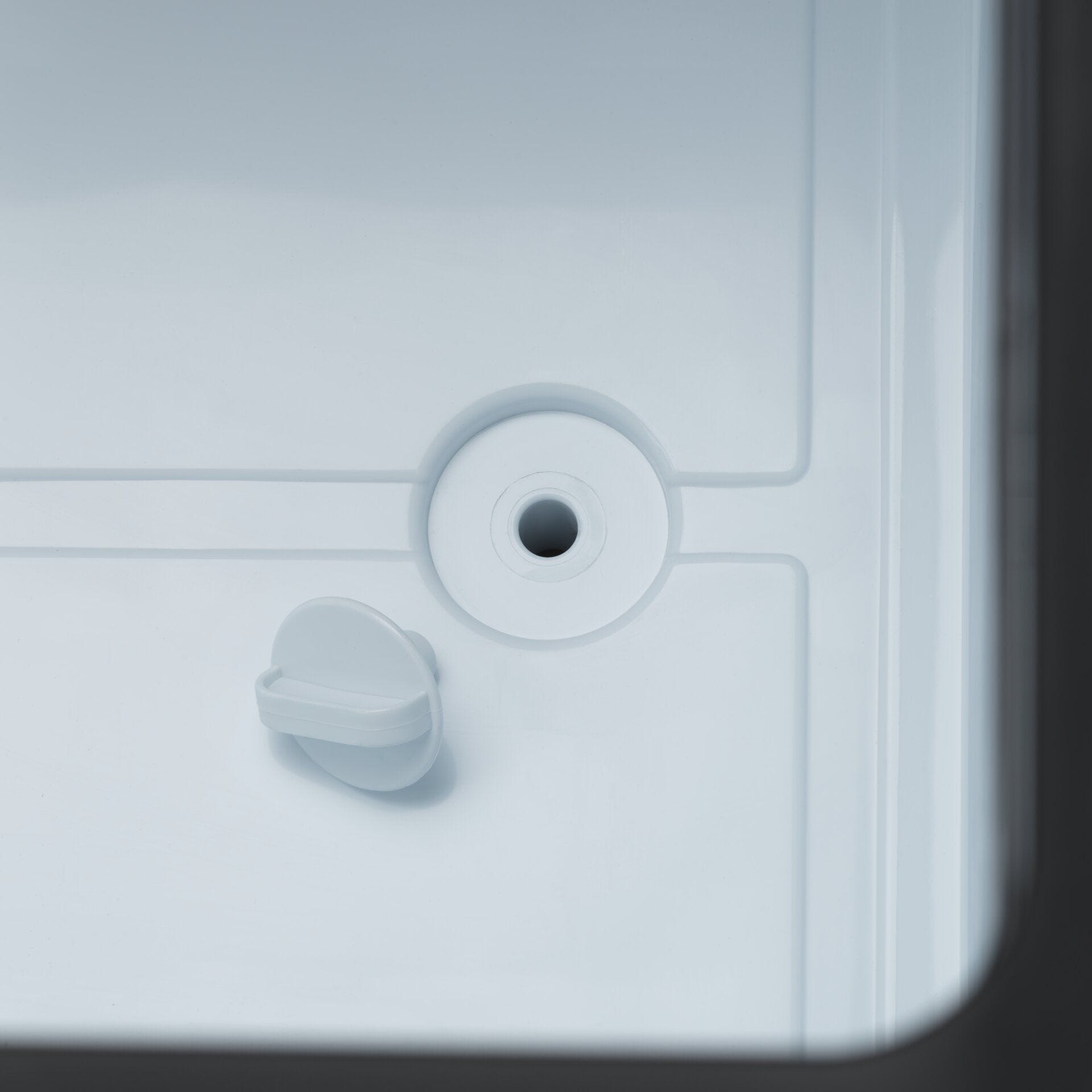

Drain plug

Ja

Anti-condensation coil

Ja

Single or Dual Zone

Single

Thermostat control

Elektronischer Thermostat

Hinge type

Oben

Interior light

Ja, LED

SKUCertificates

GMark;ECER10;UKCA;CB;EMC;GS

Total volume (IEC 62552-3), [l]

46.000000

Amount of cans (12oz/375ml)

67

Hermetically Sealed

Ja

Refrigerant, type

R600a

Input voltage (AC), [V]

100-240

Input voltage (DC), [V]

12/24

Input frequency, [Hz]

50/60

Battery type

Not Applicable (NA)

Priority circuit (Integrated)

Ja

Noise (EN60704-1 & 60704-2-14), [dB(A)]

41.000000

Annual energy consumption at AC, EU (EN62552-3:2020), [kWh/a]

36

Energy efficiency class (Regulation (EU) 2019/2016)

B

Climate class (EN 62552)

N/T

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

43.000000

Insulation Type

PU (Polyurethane)

Dimensions product width, ["] - Display

15.67

Item Description

CFX5 45, AC/DC EU/UK/UAE Version, R600a, 5VA

Pack Size

Ja
