Dometic AU

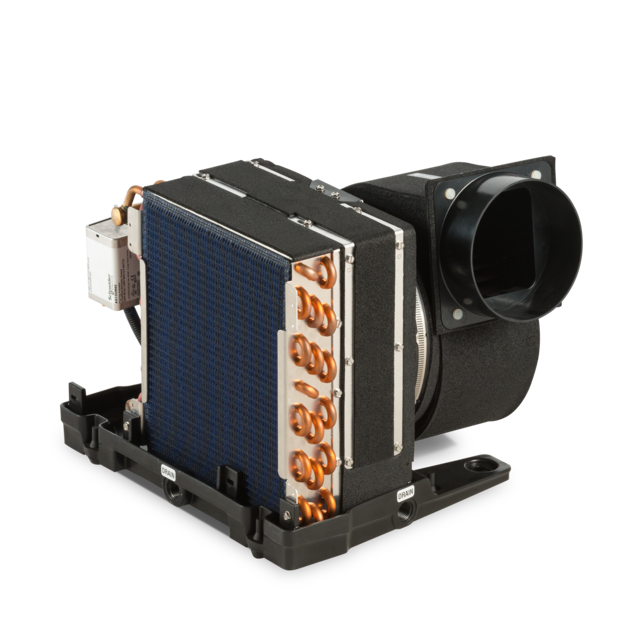

Gold Series Air Handler Units

Redesigned for easier installation and improved performance. Featuring a rust-free composite drain pan, high-velocity blowers and flexible mounting options, this air handler incorporates innovative features for quiet, powerful performance.

Sold in our dealer networkArt nr: 9108786176
Your Configurations
Cooling Capacity, [BTU]

6000

Input voltage (AC), [V]

230

Input frequency, [Hz]

50/60

Item Description

AU6HVZ 5"MR 230V

Product Highlights

Optional EU package upgrades
1 of 3

Optional EU package upgrades

Upgrades include improved insulation and wire loom, protective cover for water-tube hairpins, and more.

Optional DC "WhisperCool" blowers
2 of 3

Optional DC "WhisperCool" blowers

Extremely quiet yet powerful.

Optional integrated Breathe Easy™ air purifier
3 of 3

Optional integrated Breathe Easy™ air purifier

Stops odors and is up to 99.9 % effective in neutralizing contaminants in the air.

Rust-free composite drain pan

Vibration-isolation mounts reduce noise and vibration

Powerful blower can be rotated to straight-down position for overhead applications

Drain pan features anti-slosh, "positive flow" drain channels for no spills and rapid removal on condensates

Single adjustment screw for 270 degrees of rotation

Easy access to water heater overload reset button

SKU number

9108786176

Model

Chillers Air Handlers AU

Model on label

AU6HVZ 5"MR 230

Product Description

Chilled Water Air Handler

Dimensions product depth, ["]

17

Dimensions product height, ["]

18.5

Dimensions product width, ["]

24

Net weight, [lbs]

20.30

Input voltage (AC), [V]

230

Input frequency, [Hz]

50/60

Required AC circuit protection min, [A]

2

Required AC circuit protection max, [A]

5

Cooling capacity (ISO 5151), [W]

1758.43

Current consumption min cooling, [A]

0.83

Current consumption max cooling, [A]

0.83

EAN-13

7315091236621

Dimensions parcel depth, ["]

24

Dimensions parcel height, ["]

18.5

Dimensions parcel width, ["]

17

Parcel weight, [lbs]

27.87

AU Leaflet.pdf

Product Leaflet

Download

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24

Declarations of Conformity

Download

Dometic Airhandler - Installation and Operating Manual APAC/AMER/EMEA(en)

Installation and Operating Manual

Download
WARNING

WARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov

A sea-worthy product

A sea-worthy product

Completely redesigned for easier installation and improved performance, the chilled water air handler, recipient of an Honorable Mention at the 2012 International Boatbuilders Exhibition and Conference (IBEX), incorporates many innovative features, including an optional Breathe Easy™ air purifier. Its rust-free, anti-slosh, positive-flow drain pan quickly removes condensate water and a third drain hole can be employed to further increase drainage. Each drain hole is reinforced and has an external stop to prevent over tightening of the screw-in hose barb. For complete flexibility, each drain hole can accept either a straight or 90-degree hose barb. In addition, the vibration-isolation mounting hardware can be attached at a variety of locations along the perimeter of the drain pan and ensures a quieter performance.
