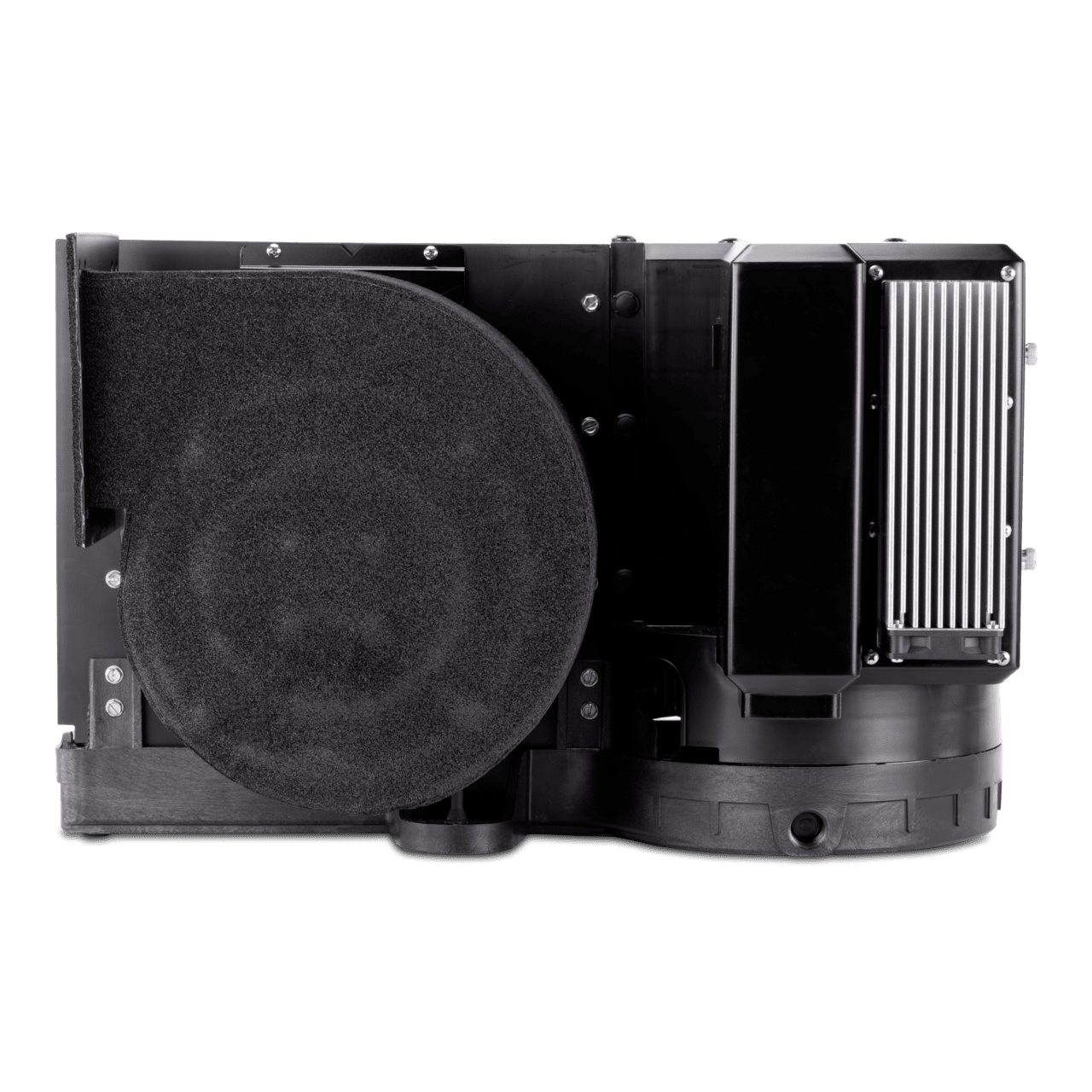

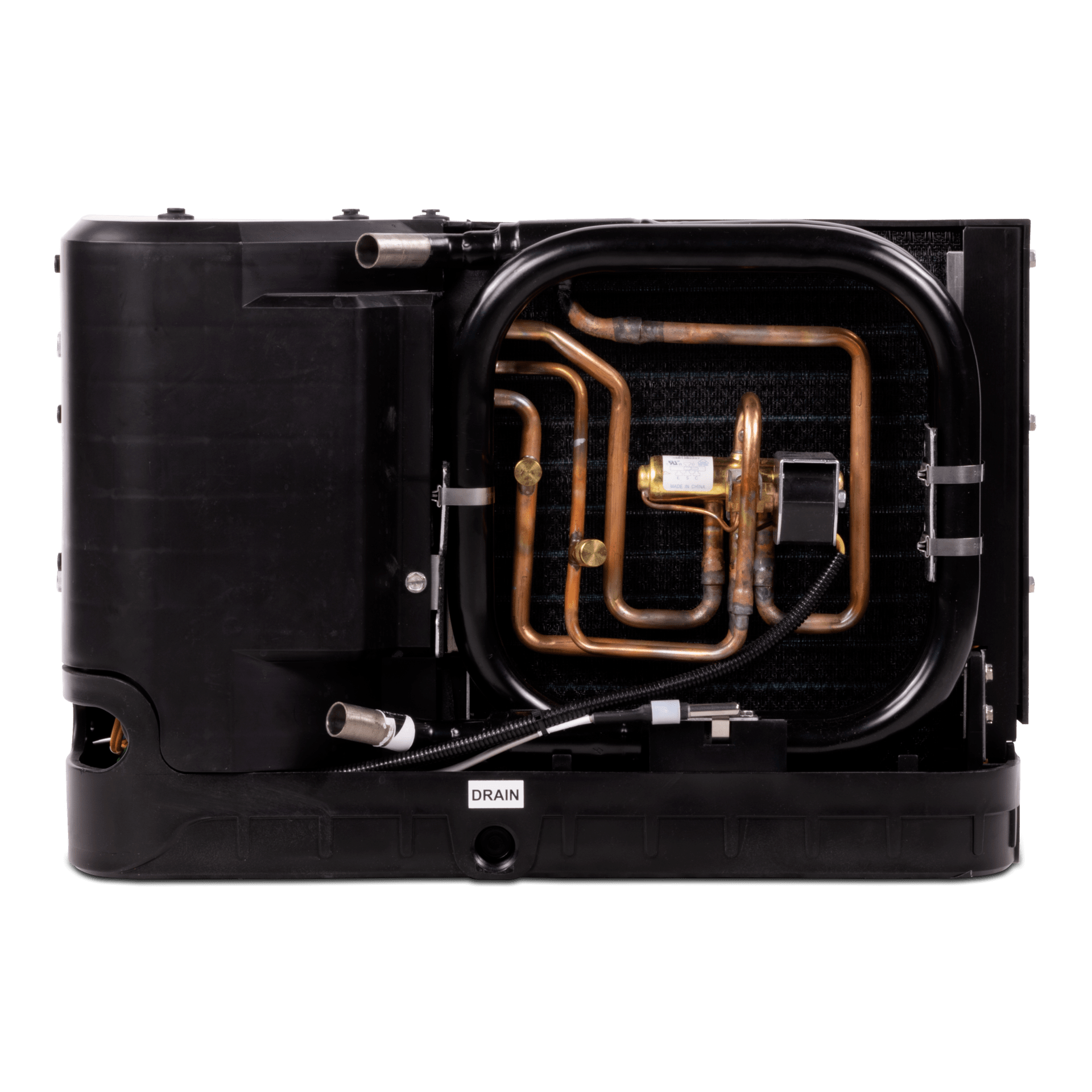

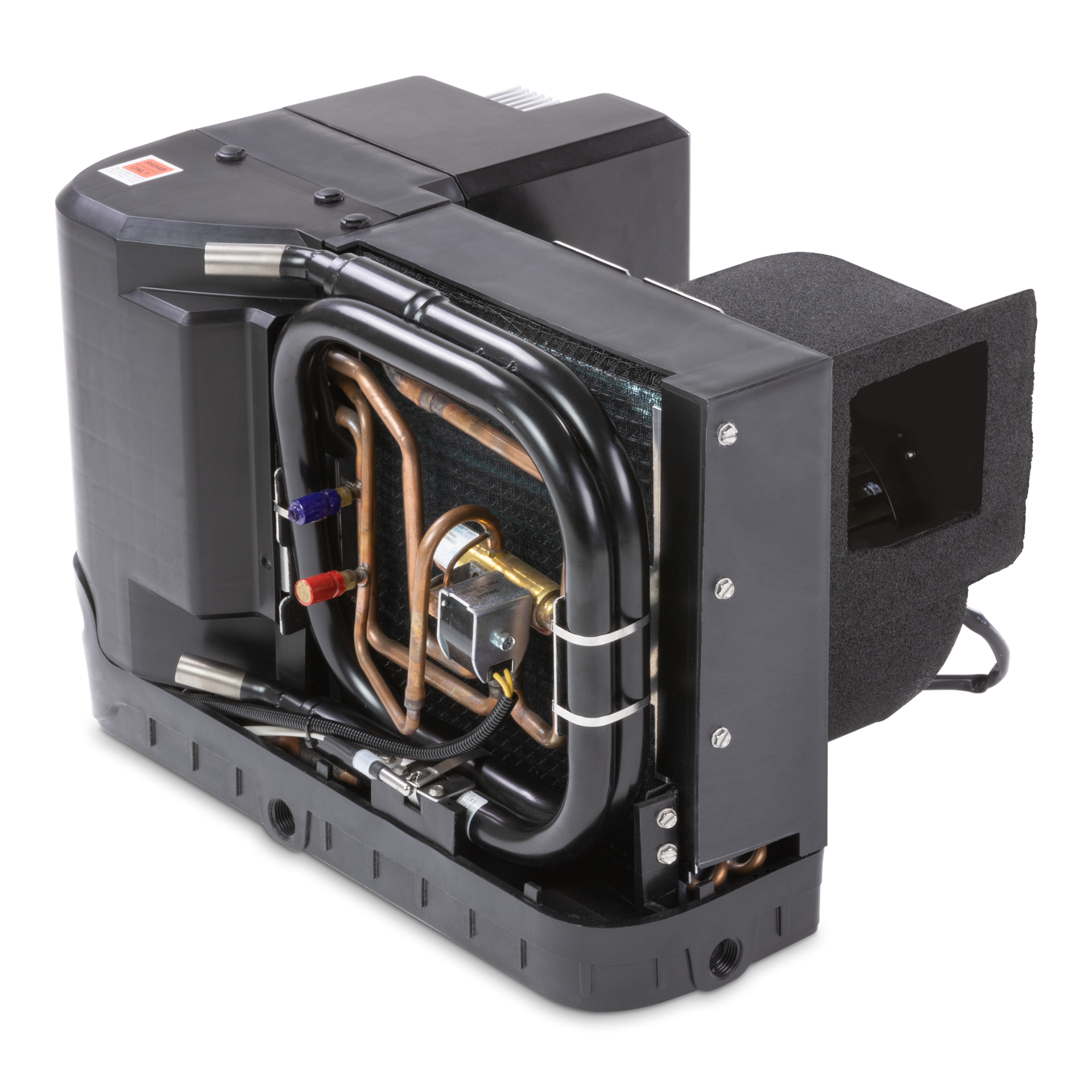

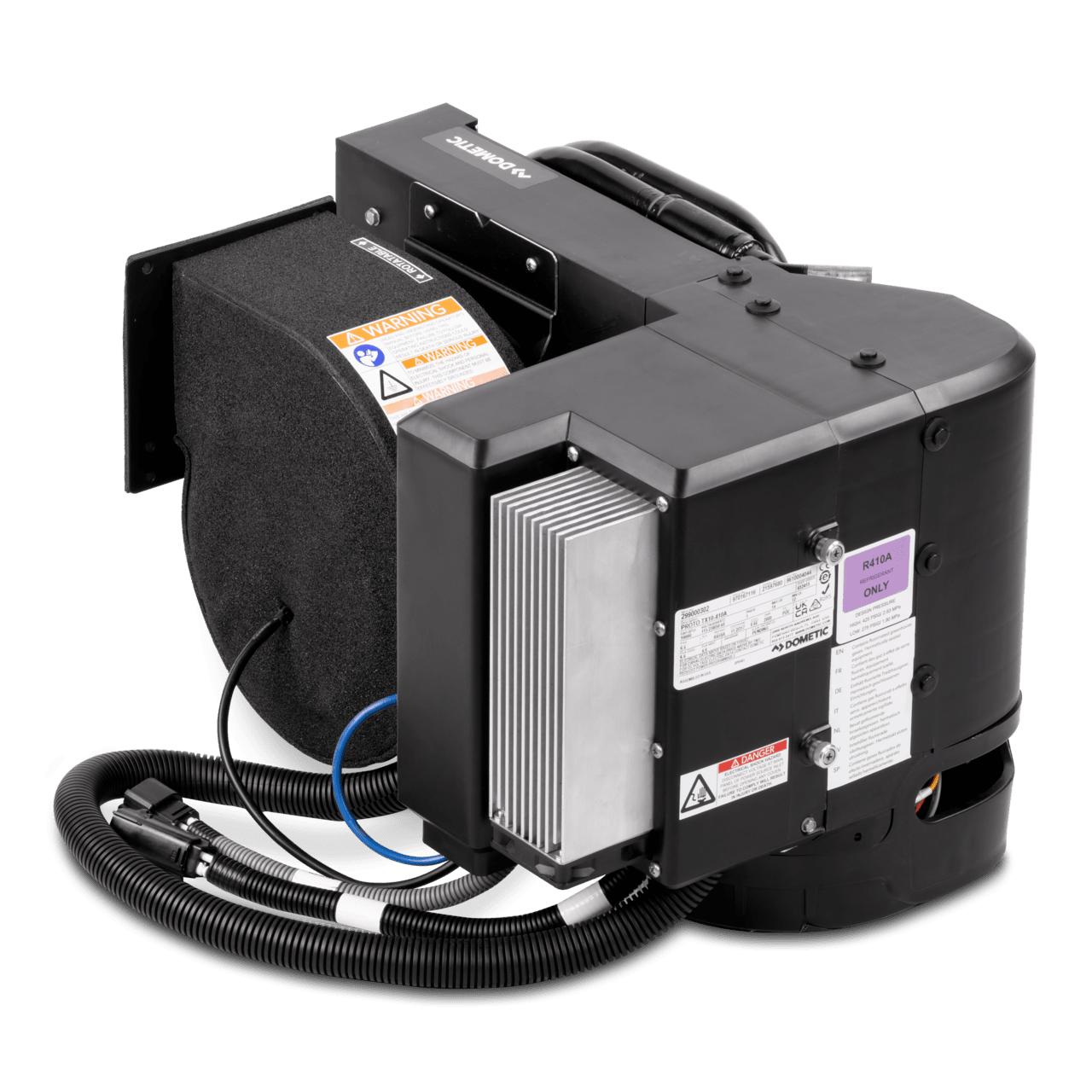

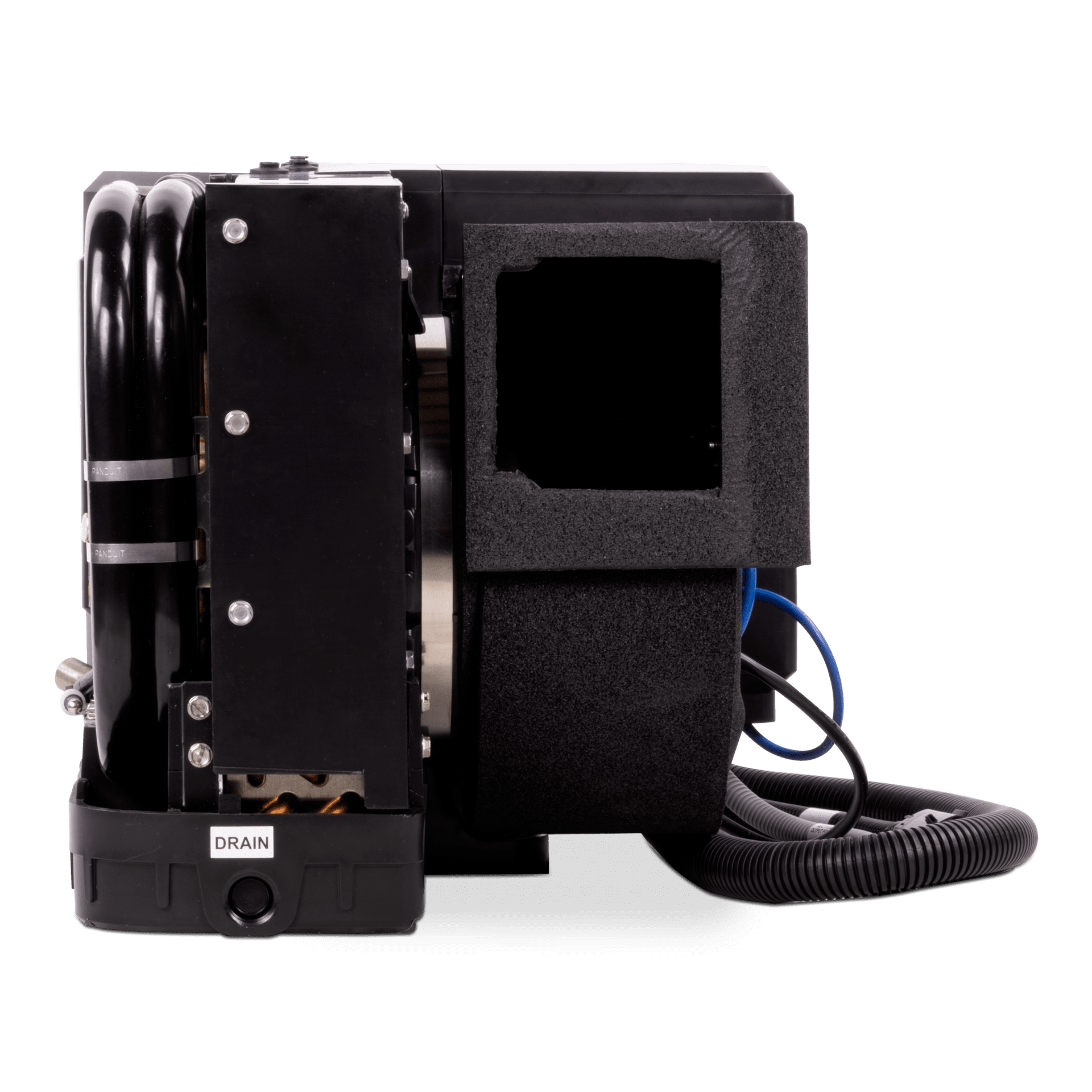

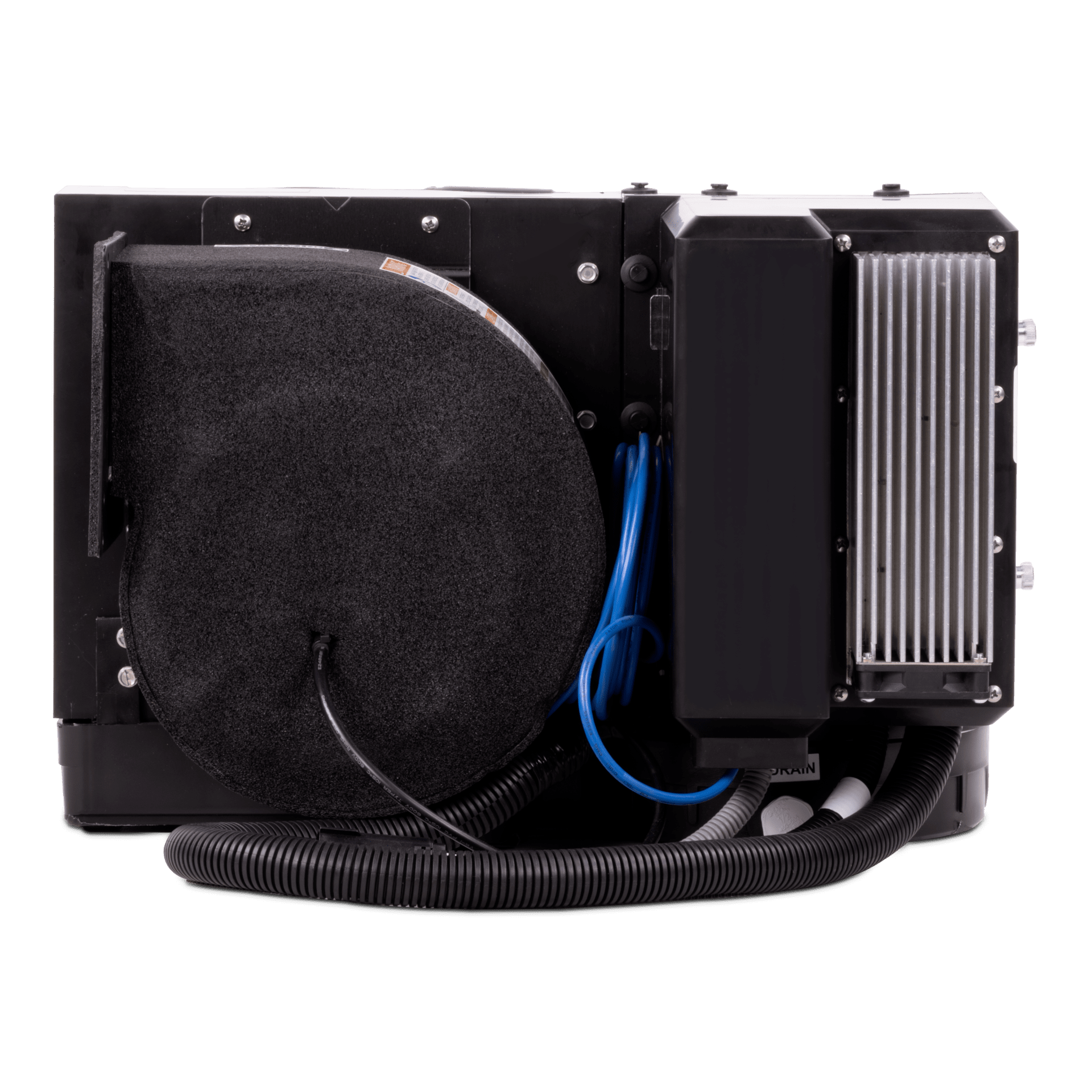

Dometic GVTX10

Self contained variable capacity climate control, 6,000 - 10,000 BTU/h

  • Variable capacity compressor
  • Robust and stylish
  • Titanium condenser coil

Our self-contained boat air conditioning system uses R-454b refrigerant with minimized environmental impact. Variable speed technology ensures higher efficiency by adjusting capacity to meet your needs. Featuring robust corrosion-resistant Titanium coils, the GTX heats and cools swiftly and silently. The rust-free composite drain pan ensures a clean design.

Description

  1. Engineered to maximize the performance of R-454B refrigerant
  2. Variable capacity for on-demand cooling and constant temperature
  3. High-static DC blower and optional sleep mode ensure quiet performance
  4. Multi-voltage for worldwide operation
  5. Robust design with non-corrosive composite drain pan and titanium condenser
  6. Cooling and heating capabilities
  7. Built-in NMEA2000 network for complete connectivity

Specifications

SKU: 9610006985

Dometic GVTX10 — General specifications
ModelGVTX
Product DescriptionSelf contained variable capacity climate control, 6,000 - 10,000 BTU/h

Dometic GVTX10 — Electrical specifications
Input voltage (AC), [V]115 - 230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]12
Required AC circuit protection max, [A]15

Dometic GVTX10 — Performance specifications
Hermetically SealedYes
Refrigerant, typeR454B
GWP465
CO2 equivalent, [t]0.12
Cooling Capacity Display10000
Current consumption min cooling, [A]6.6
Current consumption max cooling, [A]6.6

Dometic GVTX10 — Logistics specifications
Dimensions parcel depth, [in]24
Dimensions parcel height, [in]20
Dimensions parcel width, [in]18
Parcel weight, [lbs]48.05

Dometic GVTX Self Contained - Declaration of Conformity EU EMEA24
Declaration Of Conformity
Dometic DCU, DLU, DTG, ECD, GT, GTX, GTX-LP, GVTX, TX - Installation Manual INT24
Installation Manual
Dometic DCU, DLU, DTG, ECD, GT, GTX, GTX-LP, GVTX, TX - Safety Information INT5
Safety Information
Dometic DCU, DLU, DTG, ECD, GT, GTX, GTX-LP, GVTX, TX - Safety Information INT5
Safety Information
Dometic Service Event Request & Claim Reimbursement Form for Marine Air Conditioning - Warranty Document AMER(en)
Warranty Document
Dometic Marine Warranty Policy (Air Condition and Refrigeration) - Owner’s Limited Warranty Policy AMER(en)
Warranty Document
Dometic Marine Warranty Card for Marine Air Conditioning, Marine Refrigeration - Warranty Document AMER3/APAC1
Warranty Document
Dometic Marine Warranty Claim Guidelines for Marine Air Conditioning, Marine Refrigeration, Marine Ice machines - Warranty Document AMER(en)/APAC
Warranty Document
Dometic Climate Parts Guide.pdf
GVTX Leaflet.pdf
Product Leaflet

Videos

Cancer warning icon

Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

Add the essentials

Highlights

Variable capacity compressor

Adjusts to demand for extreme power efficiency

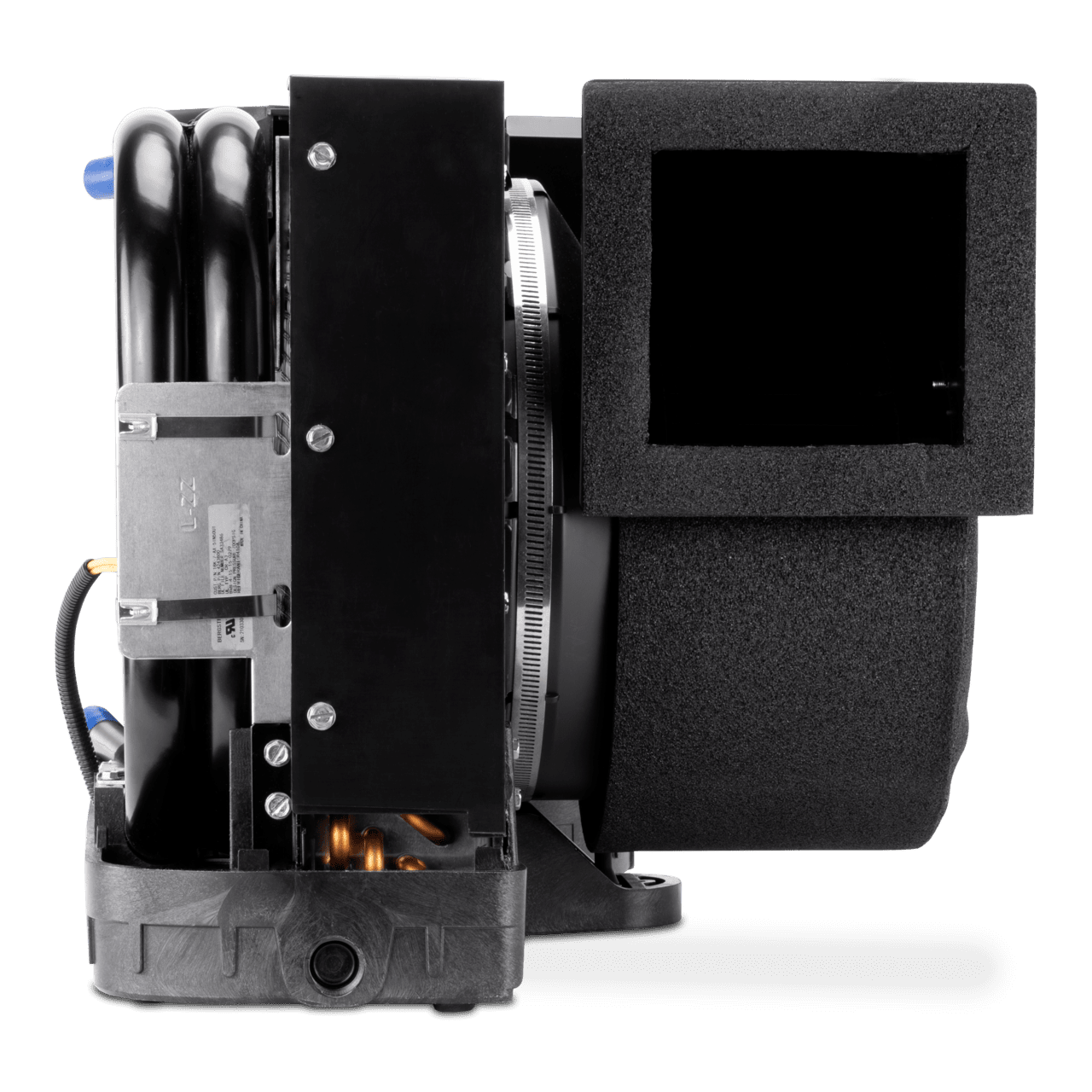

Robust and stylish

With composite positive flow condensate pan

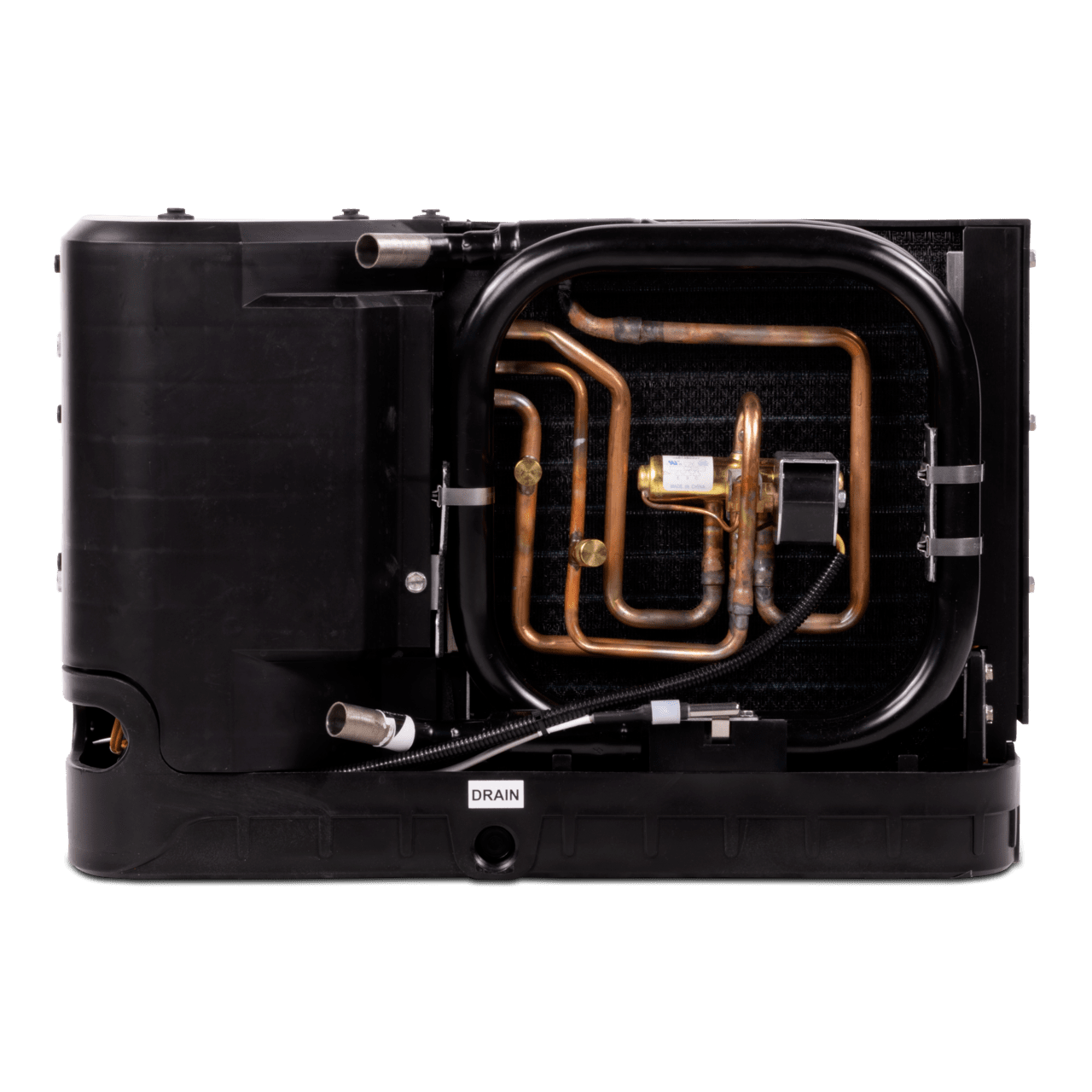

Titanium condenser coil

Robust design ensure reliable performance

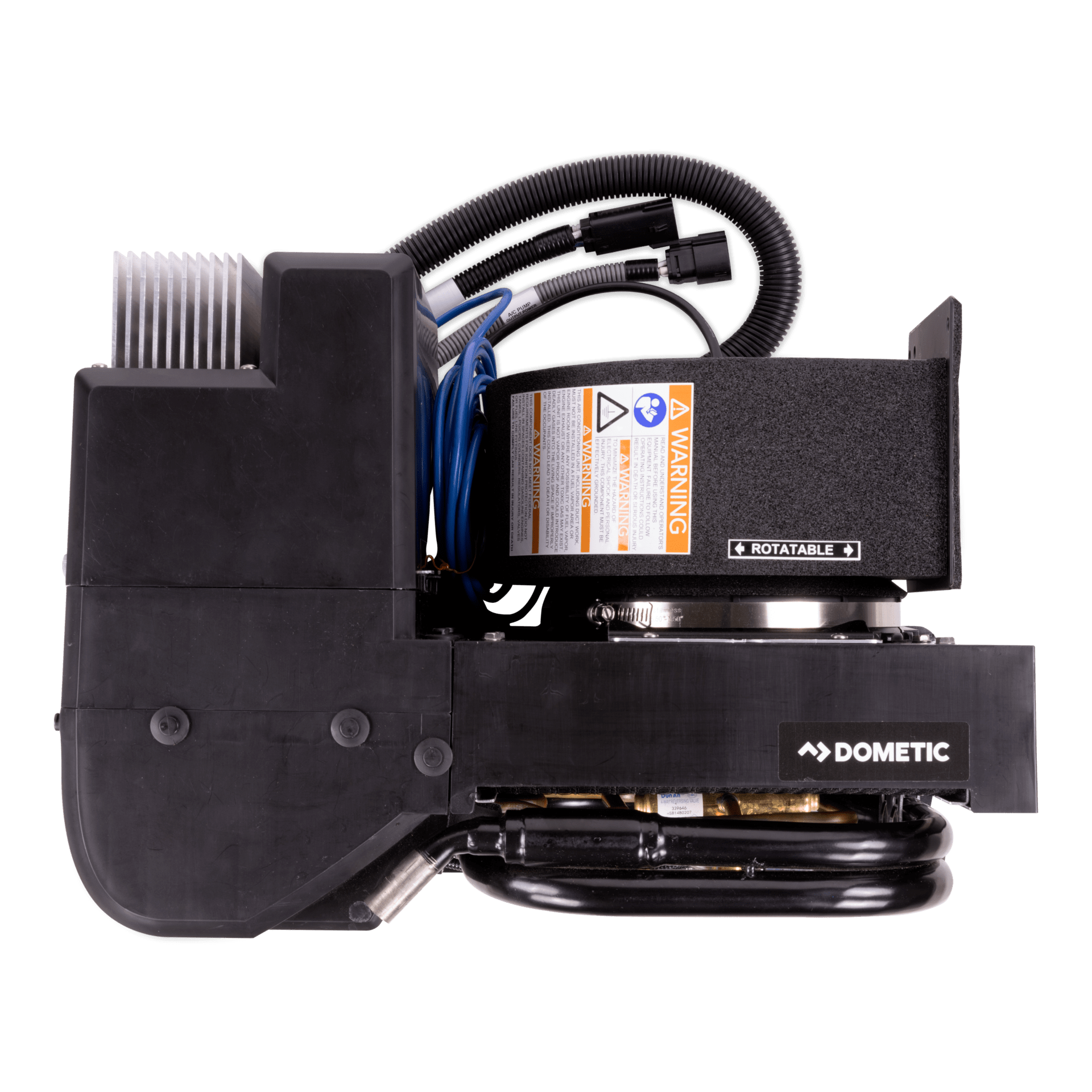

High velocity rotatable blower

Great air distribution and installation flexibility

Sound cover as standard

Ultra quiet night-time operation

Ensure comfort without interruptions

Ensure comfort without interruptions

The Dometic GVTX series does not draw starting amperage like a standard air-conditioning system. Instead, its intelligent system “slow starts” the compressor. This eliminates the chance of a power surge which could cause a trip to the boat’s power breaker. So you can enjoy easy climate control, without disturbing the performance of your boat's other electronics.
