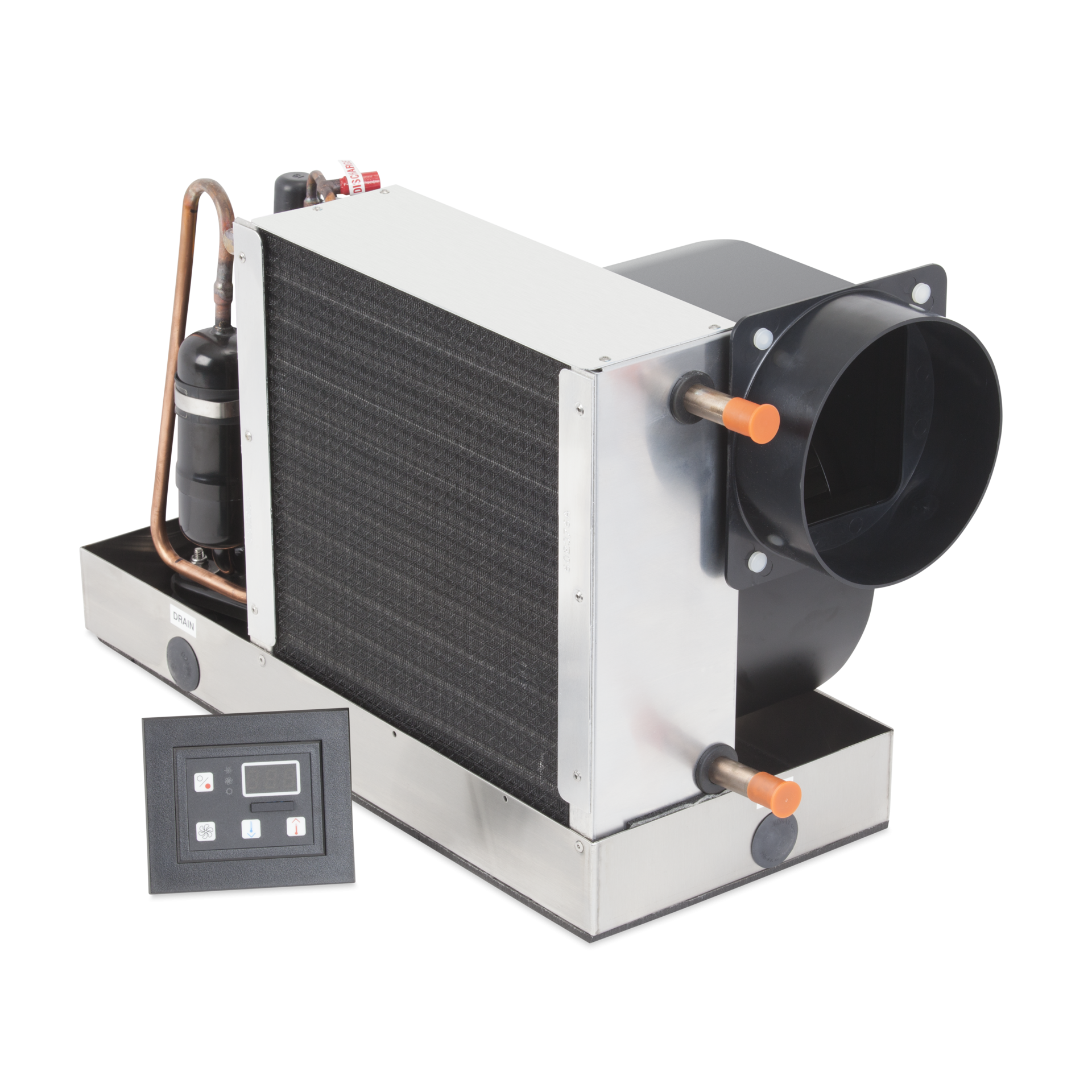

Dometic ECD

Direct Expansion Self Contained Kit from 6,000 to 16,000 BTU/h--410A-DIG

Cooling Capacity Display: 16000
Input voltage (AC), [V]: 115
Input frequency, [Hz]: 50/60
Item Description: UNIT & DISPLAY

Enjoy ideal temperatures on your boat year-round with EnviroComfort (ECD series) self-contained air conditioning kits. Offering cooling or heating in 6,000, 10,000 and 16,000 BTU/hr capacities, ECD Kits contain all the components needed for a quality A/C system.

Description

  1. High-velocity, rotatable blower for horizontal or vertical installation
  2. Environmentally friendly R410A refrigerant
  3. Easy to use Dometic digital control and display
  4. Plastic remote electrical box for convenience in mounting
  5. Stainless-steel drain pan
  6. Pre-installed return-air filter, easily removable and cleanable
  7. Small, compact, space-saving design

Specifications

SKU: 9108732755

Dometic ECD — General specifications
ModelECD Digital Control
Product DescriptionDirect Expansion Self Contained Kit from 6,000 to 16,000 BTU/h--410A-DIG

Dometic ECD — Dimensions specifications
Dimensions product depth, [in]11.3
Dimensions product height, [in]13.5
Dimensions product width, [in]20
Net weight, [lbs]63.50

Dometic ECD — Electrical specifications
Input voltage (AC), [V]115
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]24
Required AC circuit protection max, [A]40

Dometic ECD — Performance specifications
Hermetically SealedYes
Refrigerant, typeR410A
GWP2088
CO2 equivalent, [t]0,758
Cooling Capacity ISO5151 Display4689.14
Cooling Capacity Display16000
Current consumption min cooling, [A]9.9
Current consumption max cooling, [A]9.9

Dometic ECD — Logistics specifications
Dimensions parcel depth, [in]29.9
Dimensions parcel height, [in]18.5
Dimensions parcel width, [in]18
Parcel weight, [lbs]71.66

Dometic DCU, DLU, DTG, ECD, GT, GTX, GTX-LP, GVTX, TX - Installation Manual INT24
Installation Manual
Dometic DCU, DLU, DTG, ECD, GT, GTX, GTX-LP, GVTX, TX - Safety Information INT5
Safety Information
Dometic DCU, DLU, DTG, ECD, GT, GTX, GTX-LP, GVTX, TX - Safety Information INT5
Safety Information
Dometic Service Event Request & Claim Reimbursement Form for Marine Air Conditioning - Warranty Document AMER(en)
Warranty Document
Dometic Marine Warranty Policy (Air Condition and Refrigeration) - Owner’s Limited Warranty Policy AMER(en)
Warranty Document
Dometic Marine Warranty Card for Marine Air Conditioning, Marine Refrigeration - Warranty Document AMER3/APAC1
Warranty Document
Dometic Marine Warranty Claim Guidelines for Marine Air Conditioning, Marine Refrigeration, Marine Ice machines - Warranty Document AMER(en)/APAC
Warranty Document
Dometic Climate Parts Guide.pdf
Buying Guide

Product size & weight

W 20 x H 13.5 x D 11.3 in

Weight: 63.50 lbs

Add the essentials

Enjoy ideal temperatures

Enjoy ideal temperatures

Enjoy ideal temperatures on your boat year-round with Dometic ECD self-contained air conditioning kit. The blower can be rotated to a horizontal or vertical position for easier connection to the duct. The ECD includes a compact digital control display that features a bright green LED and large buttons.
