Description
- Compact ductable cooling or heating units save space
- Rotating blower allows you to direct the airflow as needed
- Vibration-isolation mounting reduces noise and vibration
- Insulated condensate pan with anti-slosh, anti-fungal foam lining
- High-efficiency evaporator coil
- Available with electric heat (Dometic EBHE models)
- Designed to be used with Emerald series R410A condensers

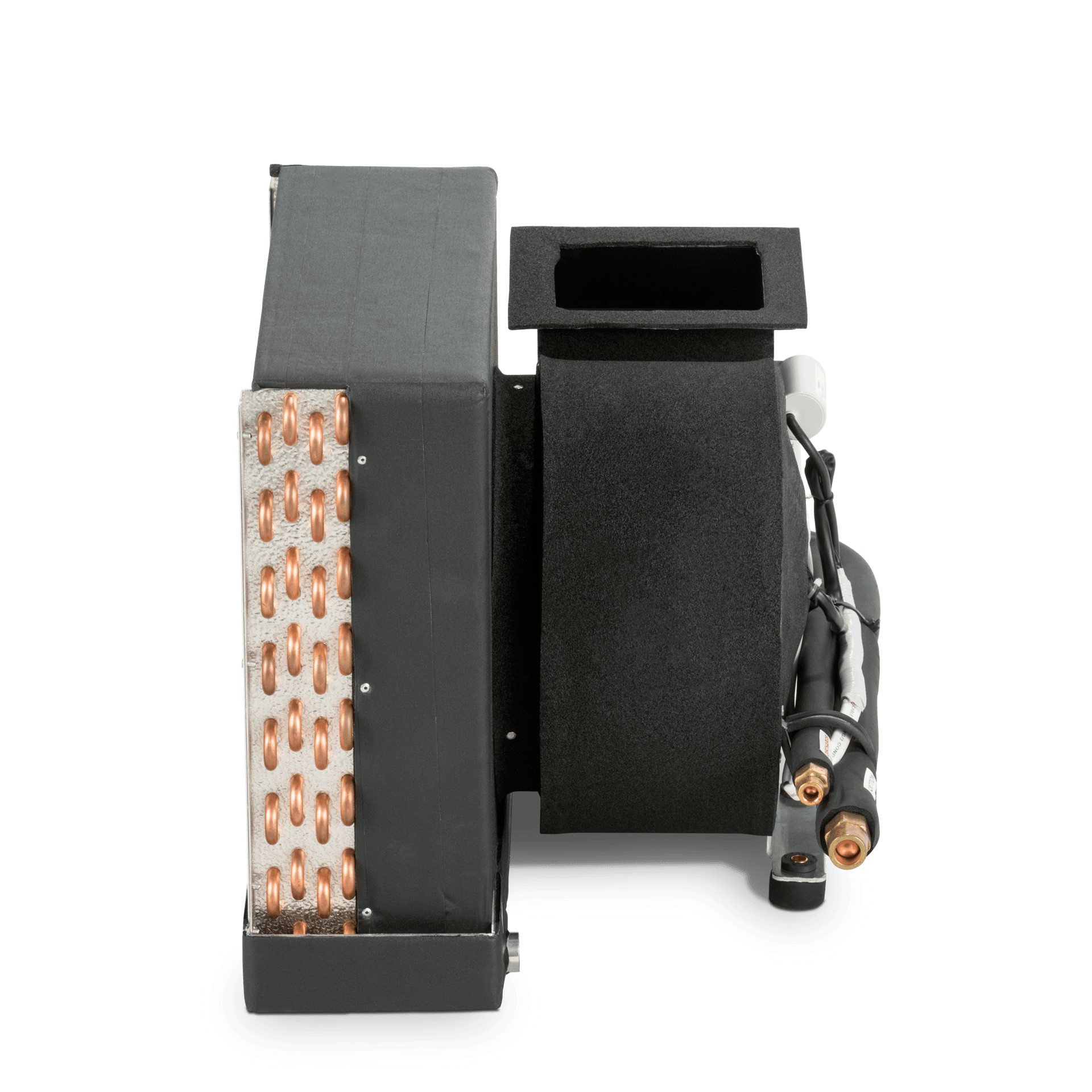

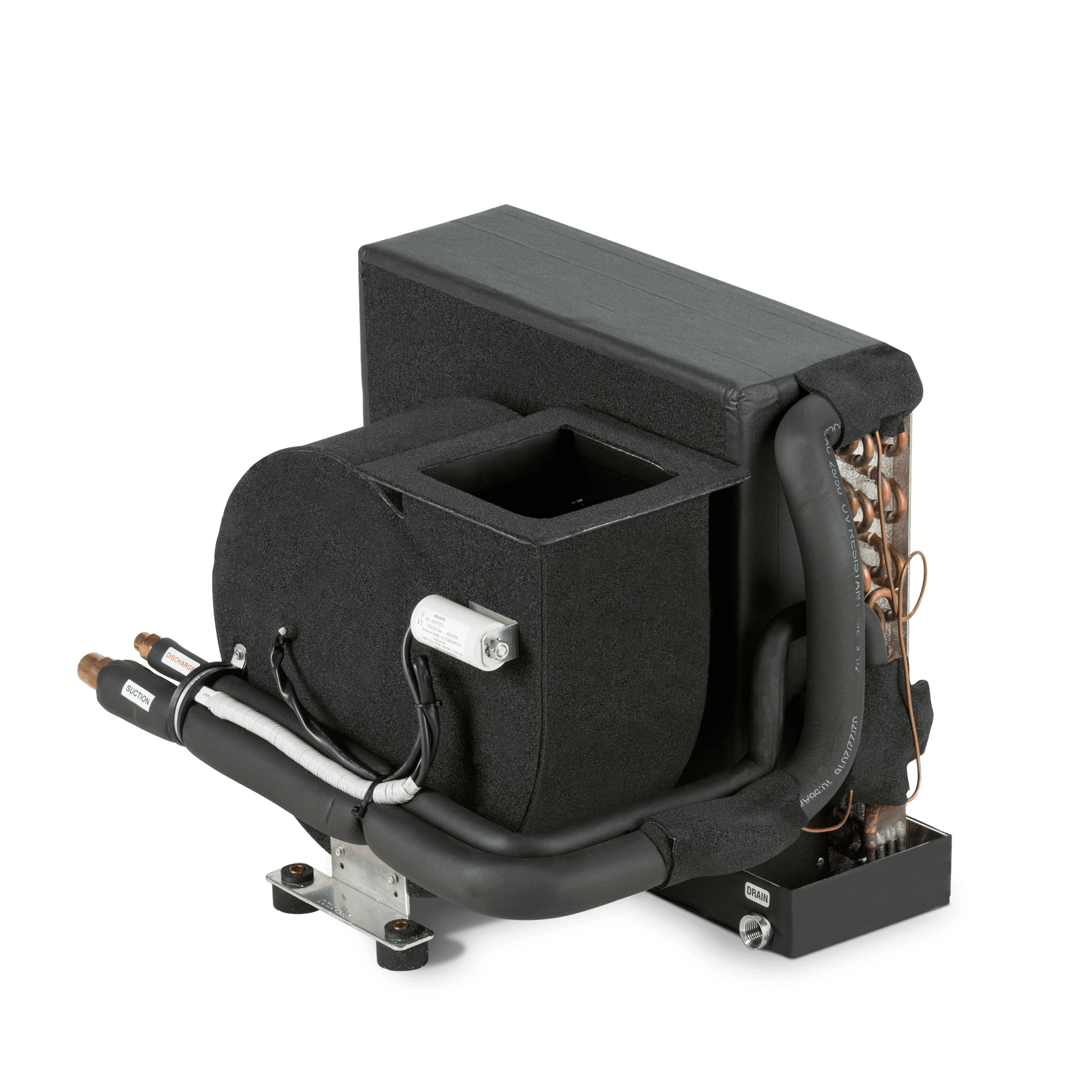

Compact EBE split evaporators for boats are draw-through, ductable cooling units with reverse cycle heating. Featuring a rotatable, high-efficiency blower in which the motor is concealed to save space.
Specifications
SKU: 9108690472
| Model | EVAPS EBE Series |
|---|---|
| Product Description | Evaporator Unit |
| Dimensions product depth, [in] | 15 |
|---|---|
| Dimensions product height, [in] | 22 |
| Dimensions product width, [in] | 20 12/16 |
| Net weight, [lbs] | 36 |
| Input voltage (AC), [V] | 230 |
|---|---|
| Input frequency, [Hz] | 50/60 |
| Required AC circuit protection min, [A] | 3 |
| Required AC circuit protection max, [A] | 5 |
| Cooling Capacity ISO5151 Display | 8792.13 |
|---|---|
| Cooling Capacity Display | 30000 |
| Current consumption min cooling, [A] | 1.64 |
| Current consumption max cooling, [A] | 1.64 |
| Dimensions parcel depth, [in] | 36 |
|---|---|
| Dimensions parcel height, [in] | 26 |
| Dimensions parcel width, [in] | 25.7 |
| Parcel weight, [lbs] | 42.14 |
Dometic (R410a) DEG, DEU, EBE, EBLE, DEUX, TVE (MVAC Split System "Emerald") - Installation and Operating Manual Marine INT24
Installation And Operating Manual
The Dometic EBE is designed for installation low in a closet, cabinet, or other enclosed space, with discharge air ducted to one or more grilles high in the cabin. EBE units can be used with a combination of plenums and flexible duct, or built-in ductwork may be used.
