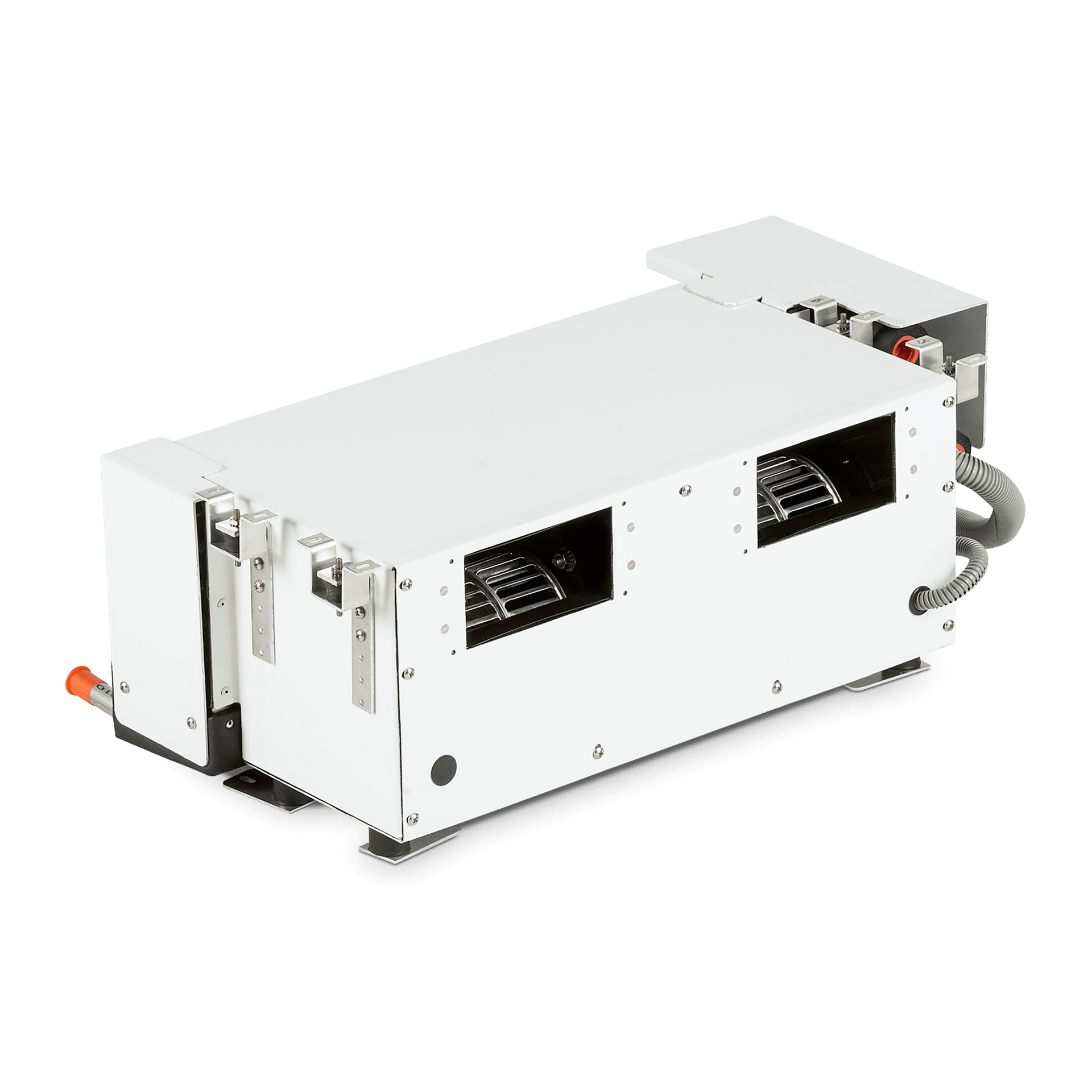

Dometic ATL

Chilled water air handler, 16,000 BTU/h, 230 V

Cooling Capacity Display: 16000
Input voltage (AC), [V]: 230
Input frequency, [Hz]: 50/60
Item Description: NO-EHB

With easy access for maintenance and dual high-velocity blowers, these strong, quiet units are perfect for height-restricted areas. Ensure your onboard comfort!

Description

  1. Suspend from above or support from beneath (hardware included)
  2. Vibration-isolation mounts reduce noise and vibration
  3. Dual high-velocity blowers for effective air distribution
  4. Optional DC "Whispercool" blowers are extremely quiet yet powerful
  5. Electrical box can be remotely mounted up to 6' away (1.8 m)
  6. Bypass valve has removable power head for simple servicing

Specifications

SKU: 9108551612

Dometic ATL-HV — General specifications
ModelChillers Air Handlers ATL
Product DescriptionChilled water air handler, 16,000 BTU/h, 230 V

Dometic ATL-HV — Dimensions specifications
Dimensions product depth, [in]17.6
Dimensions product height, [in]8.1
Dimensions product width, [in]23.4
Net weight, [lbs]27

Dometic ATL-HV — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]1
Required AC circuit protection max, [A]5

Dometic ATL-HV — Performance specifications
Cooling Capacity ISO5151 Display4689.14
Cooling Capacity Display16000
Current consumption min cooling, [A]0.62
Current consumption max cooling, [A]0.62

Dometic ATL-HV — Logistics specifications
Dimensions parcel depth, [in]35.8
Dimensions parcel height, [in]13.5
Dimensions parcel width, [in]22.8
Parcel weight, [lbs]36.13

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24
Declaration Of Conformity
Dometic Airhandler - Installation and Operating Manual APAC/AMER/EMEA(en)
Installation And Operating Manual
Dometic Climate Parts Guide.pdf
Buying Guide

Product size & weight

W 23.4 x H 8.1 x D 17.6 in

Weight: 27 lbs
